Stuck trying to fit a new 12th-gen Intel CPU into a cramped case? You need a board that supports LGA 1700, DDR5 and still leaves room for your drives. The MSI PRO H610M-E gives you exactly that - a micro-ATX platform that handles up to 96 GB DDR5, offers a PCIe 4.0 slot and simple connectivity, so you can finish your build without hunting for extra parts.

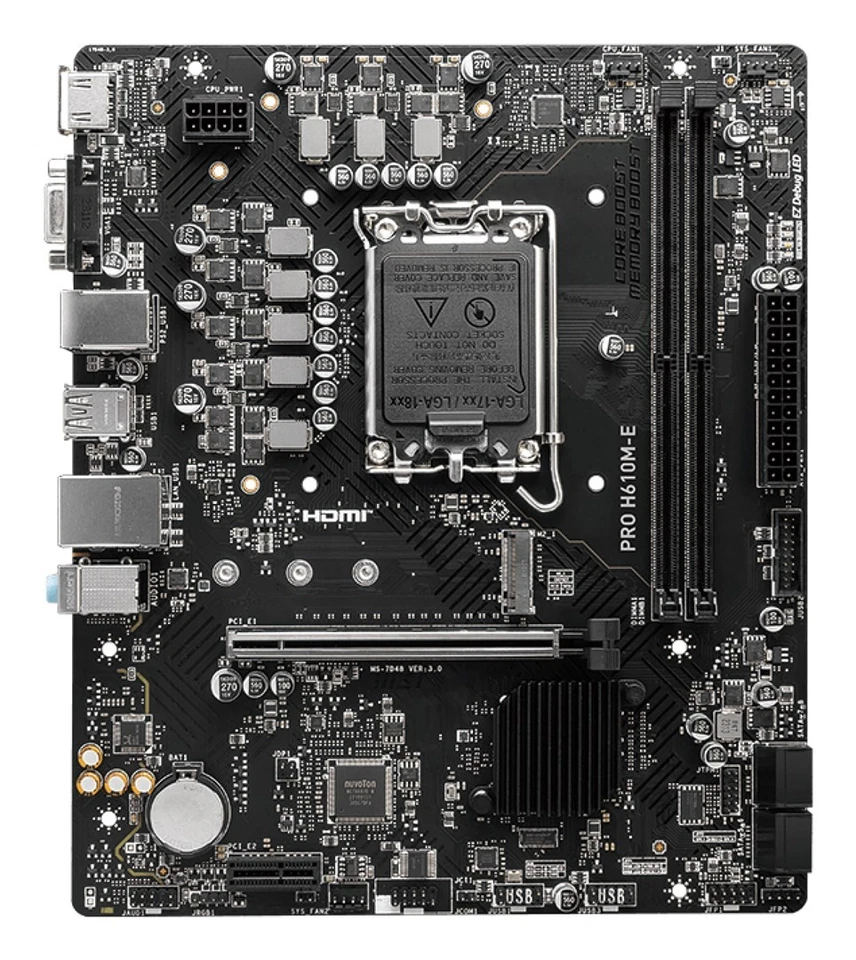

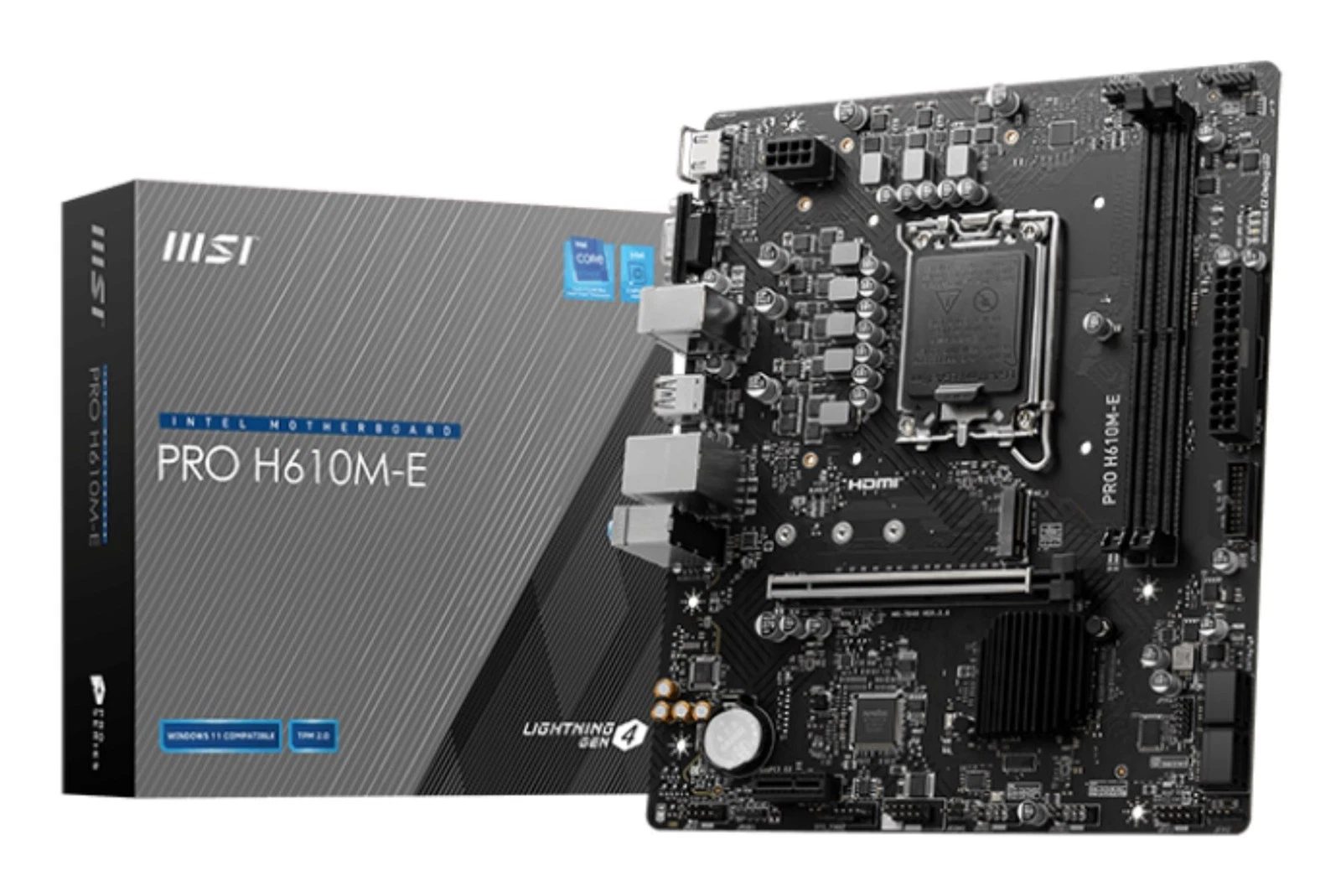

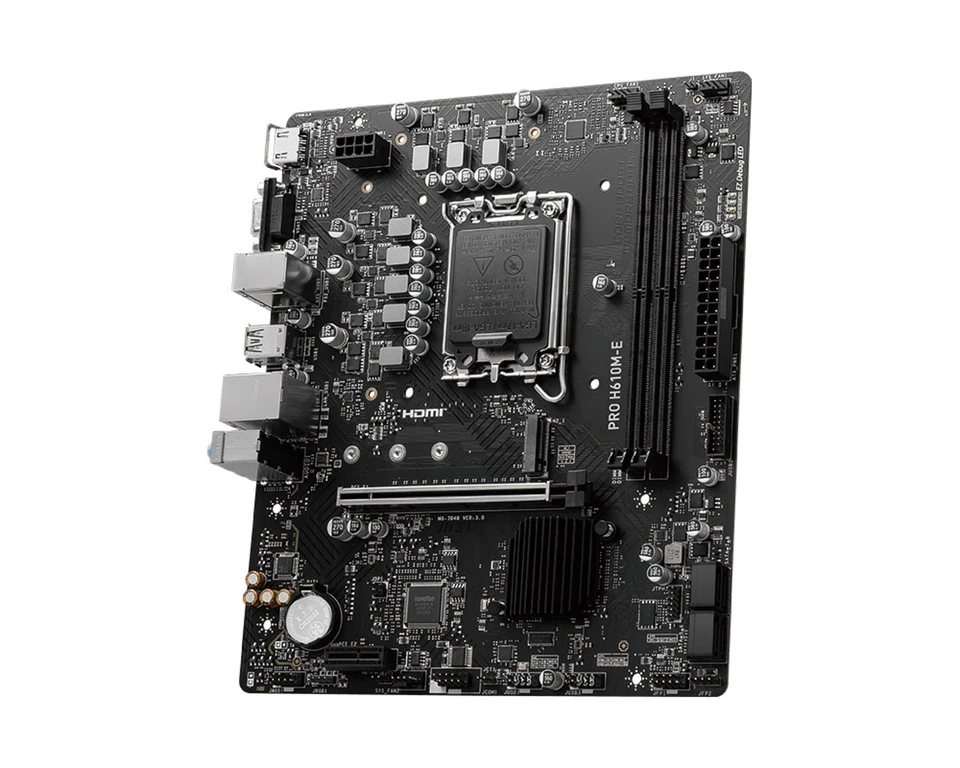

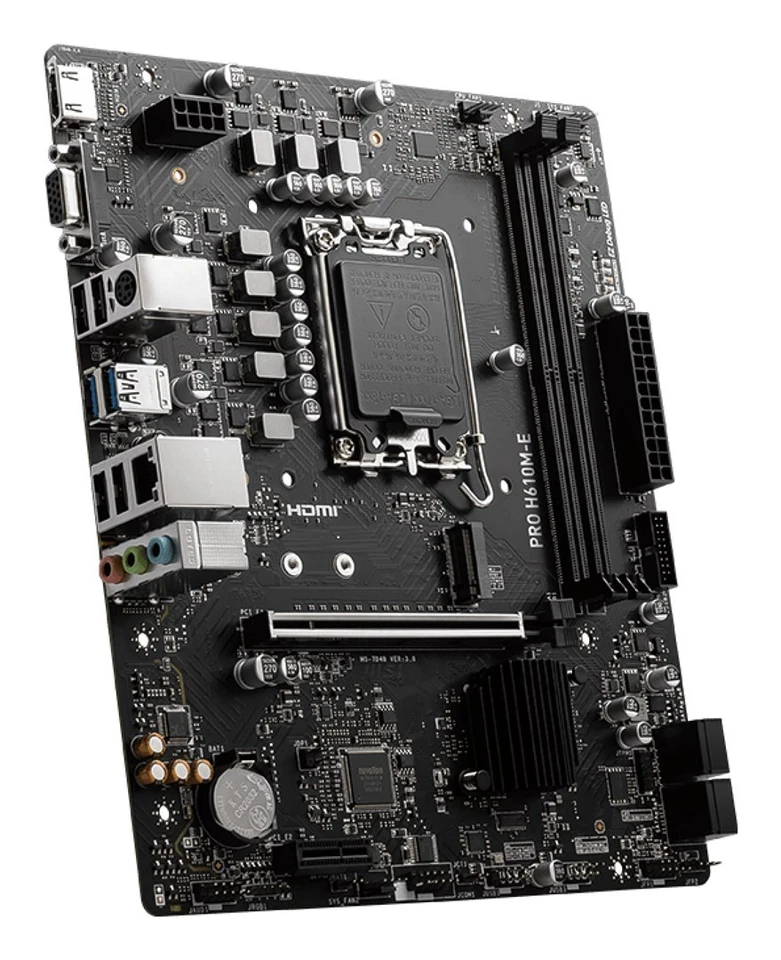

MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
This motherboard is designed for budget-friendly desktops that use Intels 12th, 13th or 14th-gen Core processors. It fits any micro-ATX case, provides two DDR5 slots, one M.2 slot and four SATA ports, making it ideal for home offices, small gaming rigs, or workstations that need reliable connectivity without extra bells.
Benefits
- MSI board installs easily with clear labeling and tool-free socket.
- Dual-channel DDR5 up to 5600 MHz for fast multitasking.
- Integrated Gigabit Ethernet ensures stable online work.
- Two video outputs let you use a monitor without a separate GPU.
- Plenty of USB ports for peripherals and external storage.
- Passive cooling keeps noise down in quiet environments.
Features
- Intel H610 chipset, PCIe 4.0 x16 slot.
- LGA 1700 socket supports 12th-13th-14th Gen CPUs.
- 2 x DDR5 DIMM slots, up to 96 GB.
- 1 M.2 slot, 4 SATA III connectors.
- HDMI 1.4 and VGA ports for displays.
- Realtek ALC897 7.1 audio codec.
- 2 USB 3.2 Gen 1 Type-A, 4 USB 2.0 ports.
- 24-pin ATX and 8-pin CPU power connectors.
Specifications
| Product Information |
|
| Manufacturer |
MSI |
| Model |
PRO H610M-E |
| EAN |
4711377125147 |
| Product Type |
Motherboard |
| Component for |
PC |
| Motherboard Form Factor |
micro-ATX |
| Chipset |
Intel H610 |
| Processor |
|
| Processor Socket |
LGA 1700 |
| Processor Manufacturer |
Intel |
| Compatible Processor Series |
Intel® Core™ 12th / 13th / 14th Gen, Intel® Pentium® Gold, Intel® Celeron® |
| Memory |
|
| Supported Memory Types |
DDR5-SDRAM |
| Memory Slots |
2 x DIMM |
| Memory Channels |
Dual-channel |
| Maximum Internal Memory |
96 GB |
| Supported Memory Clock Speed (max) |
5600 MHz |
| ECC Compatibility |
Non-ECC, unbuffered |
| Storage |
|
| Supported Storage Drive Types |
HDD & SSD |
| Storage Drive Interfaces |
M.2, SATA III |
| M.2 Slots |
1 |
| SATA III Connectors |
4 |
| Expansion Slots |
|
| PCI Express x16 Slots |
1 |
| PCI Express x1 Slots |
1 |
| PCI Express Version |
PCIe 4.0 (x16), PCIe 3.0 (x1) |
| Graphics |
|
| Integrated Graphics Support |
Yes (CPU dependent) |
| HDMI Version |
1.4 |
| HDMI Ports |
1 |
| VGA (D-Sub) Ports |
1 |
| Maximum Resolution |
4096 × 2160 pixels |

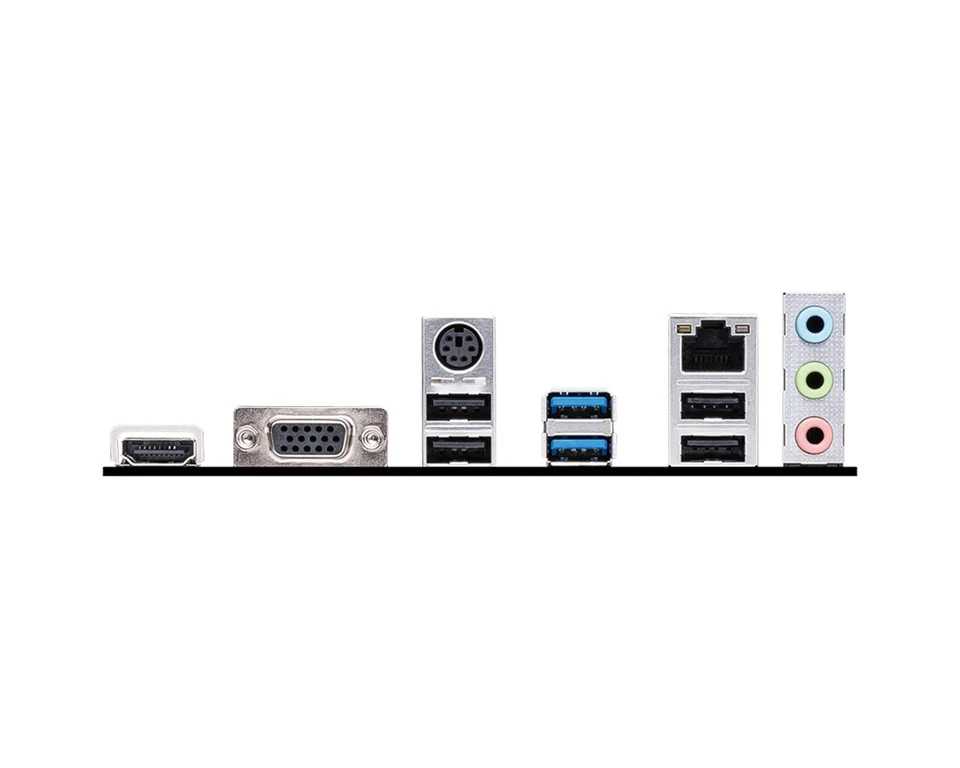

| Rear I/O Ports |
|
| USB 3.2 Gen 1 Type-A Ports |
2 |
| USB 2.0 Ports |
4 |
| Ethernet LAN (RJ-45) |
1 |
| Audio Output Channels |
7.1 |
| Audio Chip |
Realtek ALC897 |
| Internal I/O |
|
| USB 3.2 Gen 1 Connector |
1 |
| USB 2.0 Connectors |
2 |
| CPU Fan Connector |
1 |
| System Fan Connectors |
2 |
| ATX Power Connector (24-pin) |
Yes |
| CPU Power Connector (8-pin) |
Yes |
| TPM Connector |
Yes |
| RGB LED Header |
Yes |
| Serial Port Header |
Yes |
| Front Panel Connector |
Yes |
| Front Panel Audio Connector |
Yes |
| Network |
|
| Ethernet LAN |
Yes |
| LAN Controller |
Realtek RTL8111H |
| Ethernet Interface Type |
Gigabit Ethernet |
| Wi-Fi |
No |
| BIOS |
|
| BIOS Type |
UEFI AMI |
| Clear CMOS Jumper |
Yes |
| Operating System |
|
| Supported Operating Systems |
Windows 10 x64, Windows 11 x64 |
| Power & Cooling |
|
| Power Source Type |
ATX |
| Cooling Type |
Passive |
| Dimensions |
|
| Width |
236.16 mm |
| Depth |
200 mm |
| Packaging Content |
|
| SATA Cables Included |
Yes |
| Screws Included |
Yes |
| User Manual |
Yes |
