Tired of lagging frames and overheating when you push your Ryzen 9000 to the limit? MSIs latest X870E board is built to keep up with your ambition. You need a platform that delivers stable power, fast networking and effortless cooling, without endless tweaking. This motherboard solves those pain points with a 14+2+1 digital VRM, Wi-Fi 7, PCIe 5.0 and an extended heatsink, letting you game or create nonstop.

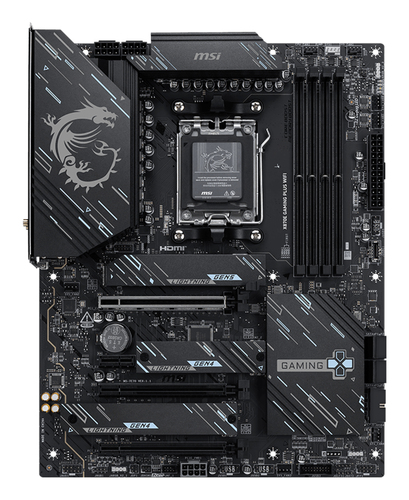

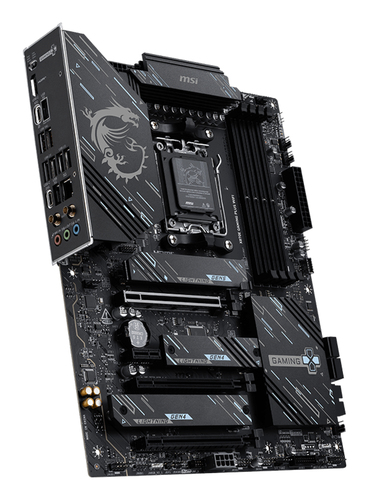

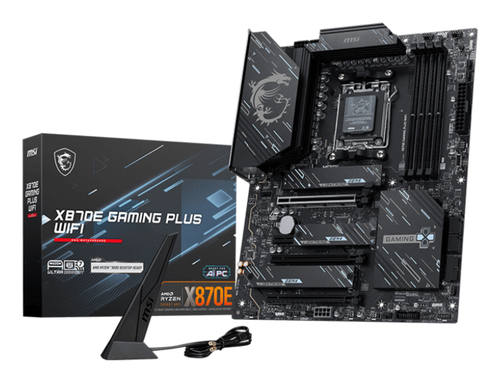

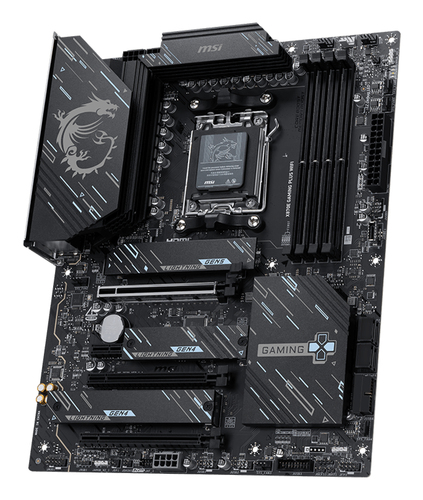

MSI X870E GAMING PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
A high-performance ATX motherboard for AMD Ryzen 7000-9000 series users who demand DDR5 speed, PCIe 5.0 graphics and storage, and reliable 24/7 operation. It fits custom rigs, workstation builds and enthusiast PCs that need solid power delivery and advanced connectivity.
Benefits
- Instant low-latency gaming thanks to MSI AI LAN Manager.
- Stable overclocking with 14+2+1 digital power phases.
- Reduced heat under load thanks to extended heatsink.
- Fast wireless speeds via Wi-Fi 7 and 5 Gigabit LAN.
- Easy cable routing with dedicated pump-fan header.
- Future-proof expansion with three PCIe 5.0 slots.
Features
- Socket AM5 for Ryzen 7000-9000 CPUs
- 256 GB DDR5 support, 4 DIMM slots
- Three M.2 slots with Shield Frozr cooling
- PCIe 5.0 x16 slots, 1 PCIe 1.0 slot
- Wi-Fi 7 and 5 Gigabit Ethernet
- USB 4.0, USB 3.2 Gen 2, USB 2.0 ports
- Heavy plated VRM heatsink with MOSFET pads
- AI-driven LAN manager for game traffic priority
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive types |
HDD |
| Graphics |
| Maximum resolution |
3840 x 2160 pixels |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| Number of COM connectors |
1 |
| Number of water pump connectors |
1 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
6 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| USB 2.0 connectors |
6 |

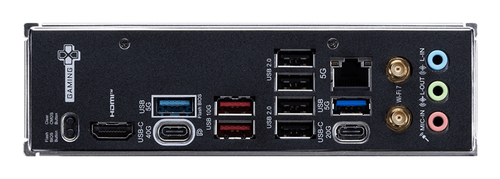

| Rear panel I/O ports |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD X870E |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
3 |
| PCI Express x1 slots |
1 |
| Weight & dimensions |
| Depth |
243.8 mm |
| Width |
304.8 mm |
| Packaging content |
| Antenna included |
Yes |
| Cables included |
SATA |
| Screws included |
Yes |
| Other features |
| Maximum internal memory |
256 GB |
| mSATA ports quantity |
0 |
