Multi-Function uCPE & SD-WAN Edge Solution-Professional Level

Problem

Branch offices often rely on multiple standalone networking appliances such as routers, firewalls, WAN optimizers, SD-WAN devices, and wireless gateways. Managing, maintaining, and upgrading these separate systems increases hardware costs, deployment complexity, and operational overhead. Introducing new services or expanding network capabilities typically requires additional hardware installations and on-site technical support, resulting in longer deployment times and higher maintenance expenses.

Solution

Our uCPE & SD-WAN Edge Platform consolidates multiple network functions into a single high-performance appliance, enabling organizations to deploy routing, firewall, SD-WAN, VPN, WAN optimization, and wireless services on one device. Built on a powerful x86 architecture with hardware-accelerated encryption, the platform delivers secure, high-speed connectivity while reducing hardware footprint and management complexity. New services and network functions can be deployed remotely through software, eliminating costly site visits and accelerating branch network modernization. Integrated cellular WAN and local wireless capabilities ensure reliable connectivity, business continuity, and flexible deployment across distributed enterprise environments.

Description

The uCPE & SD-WAN Edge Solution is built for operators running a branch estate who are tired of shipping a new appliance and rolling a truck every time a site needs another network function. Designed to replace the traditional branch stack a separate router, firewall, WAN optimizer and SD-WAN edge, each with its own hardware, refresh cycle and failure mode this Solution consolidates all of them onto a single x86 platform running virtualized network functions. Adding or changing a capability becomes a software deployment rather than a site visit, and one appliance is refreshed instead of four, across every site.

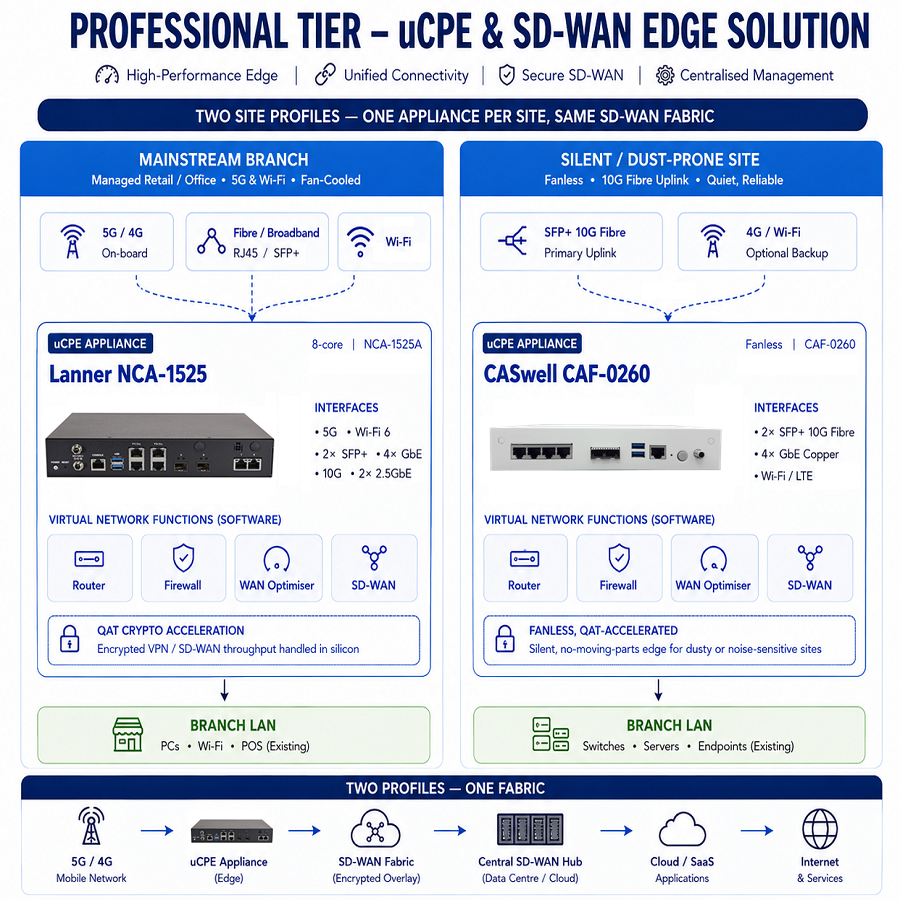

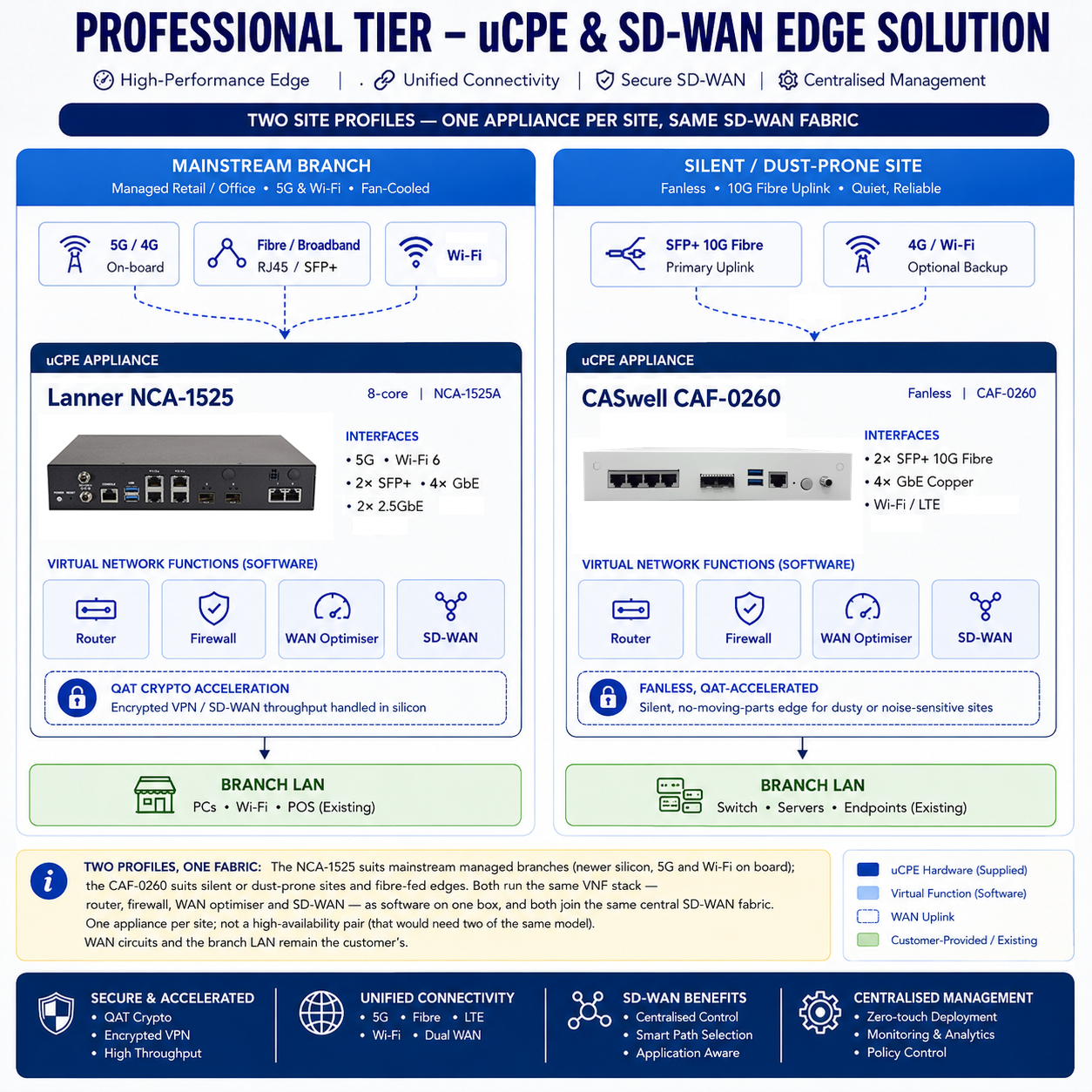

Powered by the Lanner NCA-1525, purpose-built for mainstream branch, the Solution hosts router, firewall, WAN optimizer and SD-WAN functions as software (VNFs) on one box, service-chained together and managed centrally. The NCA-1525 carries newer Atom C5000-series silicon with Intel QuickAssist (QAT) crypto acceleration, on-board support 5G and Wi-Fi 6, and a mix of 10G SFP+ and multi-gigabit copper interfaces so a managed retail or office branch gets its full WAN-edge stack, its wireless WAN and its local wireless from a single appliance. Because the functions are software, new services can be inserted or rolled back on a running site without touching the hardware.

For sites where a fan is a liability dust-prone plant rooms, sealed cabinets, or noise-sensitive retail and office space the Solution pairs in a CASwell CAF-0260, a fanless uCPE with the same VNF capability, dual 10G SFP+ fiber uplinks and QAT acceleration. It serves the same role on a different site profile: quiet, no moving parts, and fiber-fed where a 10G underlay is the primary transport. Both appliances run the identical function set and join the same central SD-WAN fabric, so a mixed estate of managed branches and silent or fiber-fed sites is still operated as one network the choice between them is site environment, not a different architecture.

Crucially, this is one appliance per site, not a high-availability pair: HA would require two of the same models, whereas the NCA-1525 and CAF-0260 are two profiles within one catalogue. Hardware crypto acceleration on both keeps encrypted SD-WAN and VPN throughput off the CPU, and the WAN circuits and branch LAN remain the customers. The result is a single, software-defined way to light any branch: pick the appliance that fits the site, deploy the functions the site needs, and manage the whole estate from one console.

Features

• Four boxes become one router, firewall, WAN optimizer and SD-WAN edge run as software (VNFs) on a single x86 appliance

• Change in software, not on-site functions are inserted, updated or rolled back on a running site without a truck roll

• Two site profiles, one fabric NCA-1525 for mainstream managed branches, fanless CAF-0260 for silent or dust-prone and fiber-fed sites

• Same function set on both either appliance runs the identical VNF stack and joins the same central SD-WAN network

• Wireless WAN ready NCA-1525 supports 5G/LTE and Wi-Fi 6 modules for cellular WAN and local wireless connectivity.

• Fiber-fed fanless option CAF-0260 offers dual 10G SFP+ uplinks with no moving parts for quiet, reliable operation

• Hardware crypto acceleration Intel QAT on both keeps encrypted SD-WAN/VPN throughput off the CPU

• One refresh, not four a single appliance replaces and refreshes the whole branch stack

• Central management zero-touch provisioning and one console across the estate

• Clean layer separation Solution supplies the uCPE hardware; VNF/SD-WAN software, WAN circuits and branch LAN remain the customer's

Specifications

Ideal For

Branch and retail estates replacing a stack of single-function appliances with one software-defined box per site, operators who need to add or change network services without rolling a truck, mixed estates spanning managed offices and silent or dust-prone sites, fiber-fed branches needing a fanless 10G edge, and any network team seeking to run and refresh a whole branch fleet router, firewall, WAN optimization and SD-WAN from a single console rather than four separate hardware lifecycles.
