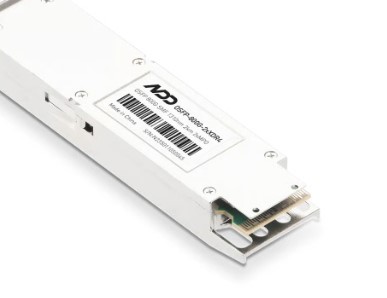

NVIDIA/Mellanox Compatible 800GBASE-2xXDR4 OSFP Transceiver Module
The NVIDIA/Mellanox Compatible 800GBASE-2xXDR4 OSFP transceiver module is designed for 800G Ethernet connectivity in compatible SN5610 Series Switch applications. It features a Twin-port OSFP form factor and supports a transmission distance of up to 2km over single-mode fiber.
The module operates at a 1310nm wavelength and uses dual MTP/MPO-12 APC connectors for optical connectivity. Its 800GBASE-2xXDR4 configuration is designed for high-speed data center networking applications.
For optical transmission and reception, the transceiver uses EML and PIN technologies respectively. Both the electrical and optical modulation use 8x106.25Gb/s PAM4.
With a power consumption of ≤16W, the module is designed for high-bandwidth 800G Ethernet applications. It operates within a case temperature range of 0 to 70°C (32 to 158°F).
The transceiver uses SMF media and is 800G Ethernet compliant. Its IHS/Closed Finned Top design is intended for compatible high-speed networking equipment requiring 800G optical connectivity.
Key Features
-
800GBASE-2xXDR4 optical transceiver
-
Twin-port OSFP form factor
-
2km transmission distance
-
1310nm wavelength
-
Dual MTP/MPO-12 APC connector
-
≤16W power consumption
-
EML transmitter
-
PIN receiver
-
8x106.25Gb/s PAM4 electrical and optical modulation
-
0 to 70°C case temperature
-
SMF media
-
800G Ethernet compliant
Specifications:
| Form Factor |
Twin-port OSFP |
| Distance |
2km |
| Wavelength |
1310nm |
| Connector |
Dual MTP/MPO-12 APC |
| Power Consumption |
≤16W |
| Transmitter |
EML |
| Receiver |
PIN |
| Media |
SMF |
| Modulation（electrical ） |
8x106.25Gb/s PAM4 |
| Modulation（Optical ） |
8x106.25Gb/s PAM4 |
| Case Temperature(℃) |
0 to 70°C (32 to 158°F) |
| Protocol |
800G Ethernet Compliant |
