If you are working with industrial computers, you know how hard it is to find a system that can handle tough jobs. Many systems are not strong enough or do not have the right features. This can cause big problems and cost a lot of time and money. The Neousys NRU-51V+-JON16, Rugged NVIDIA Jetson Orin NX, 16GB/128GB Industrial PC is a great solution to this problem. It is a powerful and rugged system that can handle even the toughest industrial jobs. With its strong NVIDIA Jetson Orin NX system-on-module and 16GB of LPDDR5 memory, this system can handle big workloads and keep running smoothly. This means you can trust it to get your work done, even in the toughest conditions.

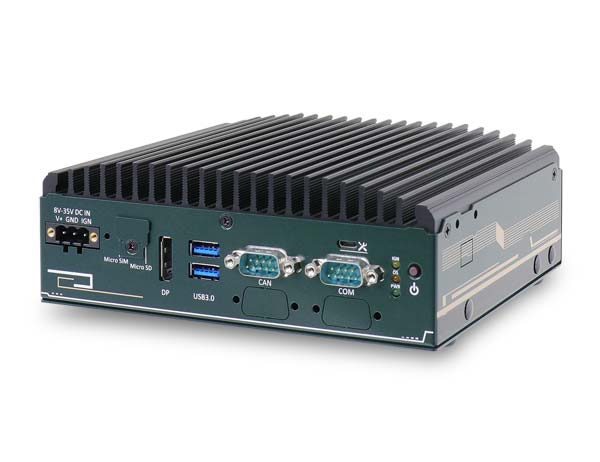

Neousys NRU-51V+-JON16, Rugged NVIDIA Jetson Orin NX, 16GB/128GB Industrial PC with Neousys
Are you tired of using industrial computers that are not strong enough or do not have the right features? Look no further than the Neousys NRU-51V+-JON16. This system is a game-changer for anyone who needs a powerful and rugged industrial computer. With its NVIDIA Jetson Orin NX system-on-module and 16GB of LPDDR5 memory, this system can handle even the toughest jobs. It also has a lot of features that make it perfect for industrial use, such as 4x GMSL2 camera inputs and 1x 10GBASE-T 10GbE port. If you need a system that can keep up with your demanding work, the Neousys NRU-51V+-JON16 is the perfect choice.
Key Features
- NVIDIA Jetson Orin NX system-on-module
- 16GB LPDDR5 memory
- 128GB storage
- 4x GMSL2 camera inputs
- 1x 10GBASE-T 10GbE port
- 1x 1GBASE-T 1GbE port
- 2x USB 3.1 Gen1 ports
- 1x micro USB (OTG only)
- 1x DisplayPort
- 1x hardware configurable RS-232/422/485 port
- 1x isolated CAN 2.0 port
Specifications
| System Core |
|
| Processor |
NVIDIA® Jetson Orin™ NX system-on-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU |
| Memory |
16GB LPDDR5 @ 3200 MHz on SOM |
| eMMC |
N/A |
| Bundled JetPack Version |
JetPack 5.1.1 |
| Panel I/O Interface |
|
| GMSL2 Camera |
4x GMSL2 FAKRA Z connectors, supporting 4x 1920 × 1080 @ 30 FPS camera input |
| Ethernet Port |
1x 10GBASE-T 10GbE port with screw-lock1x 1GBASE-T 1GbE port with screw-lock |
| USB |
2x USB 3.1 Gen1 ports (total 5 Gbps shared with M.2 B key)1x micro USB (OTG only) |
| Video Port |
1x DisplayPort, supporting 3840 × 2160 at 60Hz |
| Serial Port |
1x hardware configurable RS-232/422/485 port |
| CAN Bus |
1x isolated CAN 2.0 port |
| Isolated DIO |
1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO |
| Ground Terminal |
1x M4 ground terminal for chassis ESD shielding |
| Internal I/O Interface |
|
| Mini PCI Express |
1x full-size mini PCI Express socket (PCIe + USB 2.0) for M.2 M 2242 NVMe with adapter for storage
1x full-size mini PCI Express socket (PCIe + USB 2.0) for GNSS, V2X, or CAN
|
| M.2 |
1x 3042/3052 M.2 B key (USB 3.1 Gen1 + USB 2.0) for 4G/5G module with dual SIM support (1x front-accessible, 1x internal) |
| Power Supply |
|
| DC Input |
1x 3-pin pluggable terminal block for 8V to 35V DC input and ignition power control (V+/GND/IGN) |
| Mechanical |
|
| Dimension |
173 mm (W) × 144 mm (D) × 60 mm (H) |
| Weight |
1.4 kg |
| Mounting |
Wall-mount bracket (optional) |
| Environmental |
|
| Storage Temperature |
-40°C to 85°C |
| Humidity |
10% to 90%, non-condensing |
| Vibration |
Operating, MIL-STD-810H, Method 514.8, Category 4 |
| Shock |
Operating, MIL-STD-810H, Method 516.8, Procedure I |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
