If you are looking for a reliable and powerful industrial computer, you may have encountered some problems. One of the main issues is finding a computer that can withstand harsh environments and provide consistent performance. The Neousys Nuvo-2611VTC, Intel Elkhart Lake Atom x6425E Industrial fanless PC is designed to solve this problem. It is built to be rugged and reliable, with a fanless design that makes it perfect for use in dusty or dirty environments. This computer is also designed to be powerful, with a quad-core processor and up to 32 GB of RAM. This means that it can handle demanding tasks with ease, making it perfect for use in a variety of industrial applications.

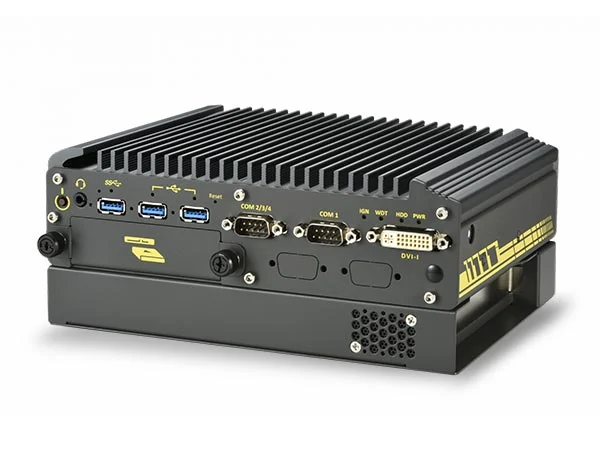

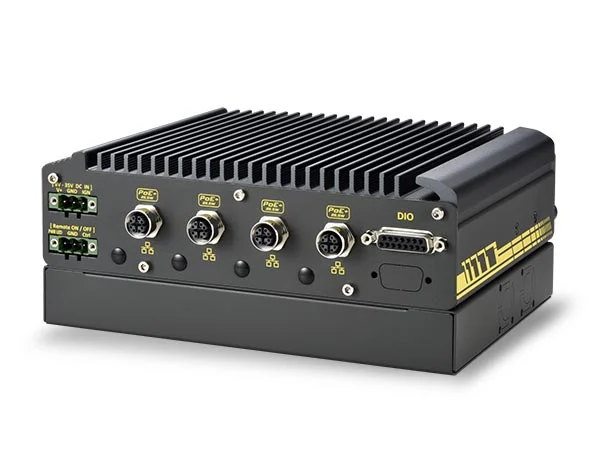

Neousys Nuvo-2611VTC, Intel Elkhart Lake Atom x6425E Industrial fanless PC with Neousys
Are you tired of using industrial computers that are slow and unreliable? Look no further than the Neousys Nuvo-2611VTC. This powerful computer is designed to provide fast and consistent performance, even in the most demanding environments. With its quad-core processor and up to 32 GB of RAM, it can handle even the most complex tasks with ease. The Neousys Nuvo-2611VTC is also built to be rugged and reliable, with a fanless design that makes it perfect for use in dusty or dirty environments. This means that you can use it in a variety of industrial applications, from manufacturing to transportation. Whether you need a computer for data collection, video processing, or other applications, the Neousys Nuvo-2611VTC is the perfect choice.
Key Features
- Intel Elkhart Lake Atom x6425E quad-core processor, 2.0GHz / 3.0GHz, 12W
- Up to 32 GB DDR4-3200 SDRAM, one SODIMM socket
- 4 x Gigabit Ethernet ports via M12 X-coded connectors by Intel I210
- IEEE 802.3at PoE+ PSE compliant, maximum 25.5W output per PoE+ port, total PoE+ power budget 100W
- VGA and DVI dual display outputs via DVI-I connector
- 1 x USB 3.1 Gen 1 port with screw-lock
- 2 x USB 2.0 ports with screw-lock
- 1 x isolated RS-485 port with 15 kV ESD protection (COM1)
- 3 x 3-wire RS-232 ports (COM2/3/4) or 1 x RS-422/485 (COM2)
- 1 x 3.5 mm jack for Mic-in and Speaker-out
- 4-channel isolated DI and 4-channel isolated DO
Specifications
| System Core |
|
| Processor |
Intel® Atom® x6425E quad-core processor, 2.0GHz / 3.0GHz, 12W |
| Graphics |
Integrated Intel® UHD Graphics |
| Memory |
Up to 32 GB DDR4-3200 SDRAM, one SODIMM socket |
| TPM |
Supports fTPM 2.0 |
| Panel I/O Interface |
|
| Ethernet Ports |
4 × Gigabit Ethernet ports via M12 X-coded connectors by Intel® I210 |
| PoE Capability |
IEEE 802.3at PoE+ PSE compliant, maximum 25.5W output per PoE+ port, total PoE+ power budget 100W |
| Video Output |
VGA and DVI dual display outputs via DVI-I connector |
| USB 3.1 |
1 × USB 3.1 Gen 1 port with screw-lock |
| USB 2.0 |
2 × USB 2.0 ports with screw-lock |
| Serial Ports |
1 × isolated RS-485 port with 15 kV ESD protection (COM1);
3 × 3-wire RS-232 ports (COM2/3/4) or 1 × RS-422/485 (COM2)
|
| Audio |
1 × 3.5 mm jack for Mic-in and Speaker-out |
| Isolated DIO |
4-channel isolated DI and 4-channel isolated DO |
| Expansion Bus |
|
| Mini-PCIe |
1 × full-size Mini PCI Express socket with PCIe and USB 2.0 signal;
1 × full-size Mini PCI Express socket with USB 2.0 signal
|
| M.2 B Key |
1 × M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal Micro SIM sockets |
| Storage Interface |
|
| M.2 SATA |
1 × M.2 2280 M Key (SATA interface only) socket for SATA SSD installation |
| SATA Drive Bay |
1 × front-accessible tray for 2.5-inch HDD installation (up to 15 mm height) |
| Power Supply |
|
| DC Input |
1 × 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+) |
| Remote Control & LED Output |
1 × 3-pin pluggable terminal block for remote control and PWR LED output |
| Power Backup |
|
| Capacity |
2500 watt-second |
| Mechanical |
|
| Dimensions |
205 × 155 × 86 mm (W × D × H) |
| Weight |
2.5 kg |
| Mounting |
Damping bracket (default) |
| Environmental |
|
| Operating Temperature |
-40°C to 70°C* |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
10% to 90%, non-condensing |
| Vibration |
Operating, MIL-STD-810G Method 514.7, Category 4; IEC 61373:2010, Category 1,
Class B Body Mounted (part of EN50155)
|
| Shock |
Operating, MIL-STD-810G Method 516.7, Procedure I; IEC 61373:2010, Category 1,
Class B Body Mounted (part of EN50155)
|
| Standards & Certifications |
|
| EMC |
E-Mark**, EN 50121 (EN 50155 EMC); CE/FCC Class A according to EN 55032 & EN 55035 |
