Are you tired of using industrial PCs that are slow and unreliable? Do you need a powerful and efficient solution for your industrial applications? Look no further than the Neousys Nuvo-2615RL-H, Intel Atom x6425E 12W processor, 32GB SDRAM Industrial PC. This powerful machine is designed to provide fast and reliable performance, making it perfect for a wide range of industrial applications. With its advanced features and robust design, this industrial PC is the perfect solution for anyone looking to upgrade their current system. Many buyers face the problem of finding an industrial PC that can handle demanding tasks, but the Neousys Nuvo-2615RL-H is here to solve that problem.

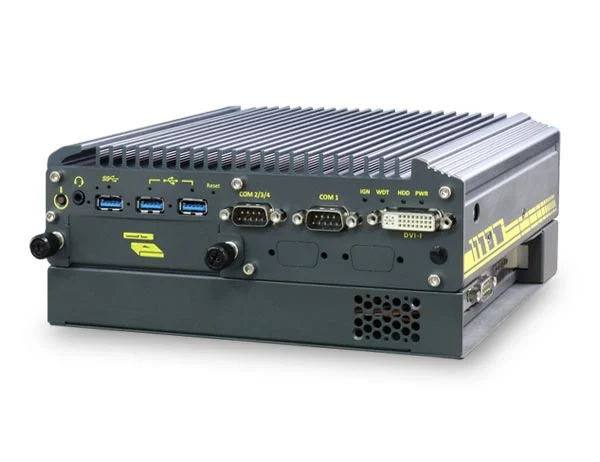

Neousys Nuvo-2615RL-H, Intel Atom x6425E 12W processor, 32GB SDRAM Industrial PC
The Neousys Nuvo-2615RL-H solves the problem of slow and unreliable industrial PCs by providing a fast and efficient solution. This problem matters to users because it can cause delays and downtime in industrial applications, leading to lost productivity and revenue. The Neousys Nuvo-2615RL-H gives a clear solution by providing a powerful and reliable industrial PC that can handle demanding tasks. With its advanced features and robust design, this industrial PC is the perfect solution for anyone looking to upgrade their current system.
Key Features
- Intel Atom x6425E 12W processor, providing fast and reliable performance
- 32GB SDRAM, providing ample memory for demanding applications
- 4 x Gigabit Ethernet ports, providing high-speed connectivity
- 1 x USB 3.1 Gen 1 port, providing fast and reliable data transfer
- 2 x USB 2.0 ports, providing additional connectivity options
- 1 x isolated RS-485 port, providing reliable and efficient communication
- 1 x 3.5 mm jack for Mic-in and Speaker-out, providing audio connectivity
- 1 x M.2 2280 M Key socket, providing storage expansion options
- 1 x SATA drive bay, providing additional storage options
- Support for fTPM 2.0, providing enhanced security features
Specifications
| System Core |
|
| Processor |
Intel® Elkhart Lake Atom® x6425E quad-core processor, 2.0GHz / 3.0GHz, 12W |
| Graphics |
Integrated Intel® UHD Graphics |
| Memory |
Up to 32 GB DDR4-3200 SDRAM, one SODIMM socket |
| TPM |
Supports fTPM 2.0 |
| Panel I/O Interface |
|
| Ethernet Ports |
4 × Gigabit Ethernet ports via M12 X-coded connectors by Intel® I210 |
| PoE Capability |
IEEE 802.3at PoE+ PSE compliant, maximum 25.5W output per PoE+ port, total PoE+ power budget 50W |
| Video Output |
VGA and DVI dual display outputs via DVI-I connector |
| USB 3.1 |
1 × USB 3.1 Gen 1 port with screw-lock |
| USB 2.0 |
2 × USB 2.0 ports with screw-lock |
| Serial Ports |
1 × isolated RS-485 port with 15 kV ESD protection (COM1);
3 × 3-wire RS-232 ports (COM2/3/4) or 1 × RS-422/485 (COM2)
|
| Audio |
1 × 3.5 mm jack for Mic-in and Speaker-out |
| Isolated DIO |
4-channel isolated DI and 4-channel isolated DO |
| Expansion Bus |
|
| Mini-PCIe |
1 × full-size Mini PCI Express socket with PCIe and USB 2.0 signal;
1 × full-size Mini PCI Express socket with USB 2.0 signal
|
| M.2 B Key |
1 × M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal Micro SIM sockets |
| Storage Interface |
|
| M.2 SATA |
1 × M.2 2280 M Key (SATA interface only) socket for SATA SSD installation |
| SATA Drive Bay |
1 × front-accessible tray for 2.5-inch HDD/SSD installation (up to 15 mm height) |
| Power Supply |
|
| DC Input |
1 × 3-pin pluggable terminal block for isolated 43V to 160V DC input |
| Power Backup |
|
| Capacity |
2500 watt-second (Nuvo-2615RL only) |
| Mechanical |
|
| Dimensions |
Nuvo-2615RL: 205 × 156 × 86 mm (W × D × H) |
| Weight |
Nuvo-2615RL: 2.7 kg |
| Mounting |
Damping bracket (default) |
| Environmental |
|
| Operating Temperature |
-40°C to 70°C, compliant with EN50155 Class OT4 |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
10% to 90%, non-condensing |
| Vibration |
IEC 61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock |
IEC 61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Standards & Certifications |
|
| EMC |
EN 50155:2017, Clause 13.4.8; CE/FCC Class A according to EN 55032 & EN 55035 |
| EN50155 |
All mandatory sections of EN 50155:2017;Nuvo-2615RL: EN50155 Class S3, EN50155 C2 |
| EN45545 |
EN 45545-2 (Fire protection on railway vehicles) |
