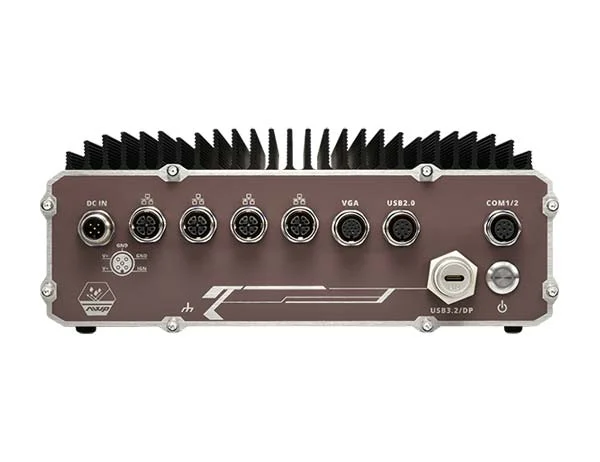

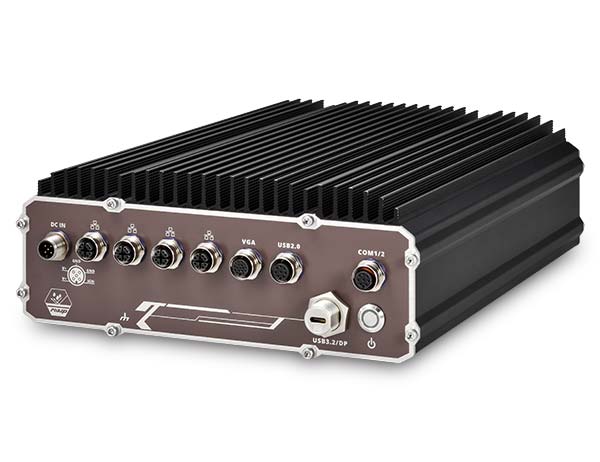

Neousys Nuvo-9650AWP IP66 Waterproof Intel 14th/13th/12th-Gen Core Industrial PC
Neousys Nuvo-9650AWP IP66 waterproof Intel 14th/13th/12th-Gen Core Industrial PC is designed for industrial applications that require modern computing performance, reliable connectivity, and rugged operation in demanding environments. It supports Intel® 14th-Gen, 13th-Gen, and 12th-Gen Core™ processors through an LGA1700 socket, providing flexible processing options for different industrial workloads.
The system uses the Intel® H610E platform controller hub and supports up to 128 GB DDR5 4800 SDRAM through two SODIMM slots. Integrated Intel® UHD Graphics 770 or 730 provides graphics processing for industrial displays and applications, while dTPM 2.0 support provides a platform for system security requirements.
For industrial networking, the Nuvo-9650AWP provides one Gigabit Ethernet port and three 2.5G Ethernet ports through M12 X-coded connectors. It also includes waterproof USB interfaces, DisplayPort, VGA, isolated RS-232, and isolated RS-422/485 connectivity, allowing the system to connect with industrial equipment, displays, sensors, and other field devices.
Storage can be configured using two internal SATA ports for 2.5-inch HDD or SSD installation and an M.2 2280 M key socket with PCIe Gen4 x4 for NVMe SSDs. Two full-size Mini PCI Express sockets and an M.2 B key socket with SIM slot provide additional expansion options for wireless, cellular, and other industrial communication modules.
The Nuvo-9650AWP is built for demanding industrial installations with 8V to 48V DC input, built-in ignition power control, optional wall mounting, and a rugged environmental design. Its vibration and shock specifications, broad operating temperature range, and IP66 waterproof design make it suitable for industrial systems requiring protected computing and connectivity in harsh operating conditions.
Key features
-
Supports Intel® 14th-Gen, 13th-Gen and 12th-Gen Core™ CPU
-
Up to 128 GB DDR5 4800 SDRAM
-
1x Gigabit Ethernet and 3x 2.5G Ethernet ports
-
Waterproof USB, DisplayPort and M12 industrial interfaces
-
Supports 2x internal SATA and 1x M.2 NVMe SSD
-
2x full-size Mini PCI Express sockets and M.2 B key cellular expansion
-
8V to 48V DC input with built-in ignition power control
-
MIL-STD-810H vibration and shock specifications with IP66 waterproof design
SPECIFICATION
| System Core |
|
| Processor |
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP),
Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP),
Support Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W/ 65W TDP)
|
| Chipset |
Intel® H610E platform controller hub |
| Graphics |
Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory |
Up to 128 GB DDR5 4800 SDRAM (two SODIMM slots) |
| TPM |
Supports dTPM 2.0 |
| I/O Interface |
|
| Ethernet |
1x Gigabit Ethernet port by Intel® I219-LM (M12 X-coded)
3x 2.5G Ethernet ports by Intel® I226-IT (M12 X-coded) |
| USB 3.2 |
1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector
1x reserved USB 3.2 Gen1 type-A connector (rear side) |
| USB 2.0 |
2x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal) |
| Video Port (Integrated Graphics) |
1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution
1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
1x reserved DisplayPort, supporting 4096 x 2304 resolution (rear side) |
| Serial Port |
1x isolated RS-232 port (COM1)
1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector |
| Storage Interface |
|
| SATA HDD |
2x Internal SATA port for 2.5" HDD/ SSD installation |
| M.2 |
1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Internal Expansion Bus |
|
| Mini PCI Express |
2x full-size mini PCI Express socket (PCIe + USB2) |
| M.2 B key |
1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
| Power Supply |
|
| DC Input |
8V to 48V DC input with built-in ignition power control |
| Mechanical |
|
| Dimension |
225mm (W) x 286mm (D) x 90mm (H) |
| Weight |
5.25 kg |
| Mounting |
wall-mounting (Optional) |
| Environmental |
|
| Operating Temperature |
Operating Temperature with 35W CPU
-25°C ~ 70°C*
with 65W CPU
-25°C ~ 70°C* (configured as 35W TDP mode)
-25°C ~ 50°C* (configured as 65W TDP mode) |
| Storage Temperature |
-40°C ~ 85°C |
| Humidity |
10%~90% , non-condensing |
| Vibration |
MIL-STD-810H, Method 514.8, Category 4 |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
