If you are looking for a reliable and fast network connection, you may have noticed that your current network adapter is not meeting your needs. This can be a big problem, especially if you are working with large files or need to transfer data quickly. The Neousys PCIe-PoE550X 2-port 10GbE Network adapter Card, PoE+ Capability is here to solve this problem by providing a fast and reliable network connection. With its 10GbE network speed, you can transfer data quickly and efficiently, making it perfect for businesses and individuals who need a fast network connection. This product is designed to provide a clear solution to your network needs, giving you the speed and reliability you need to get your work done.

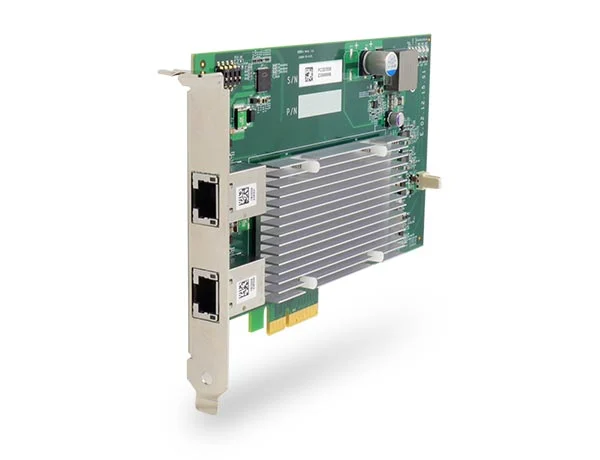

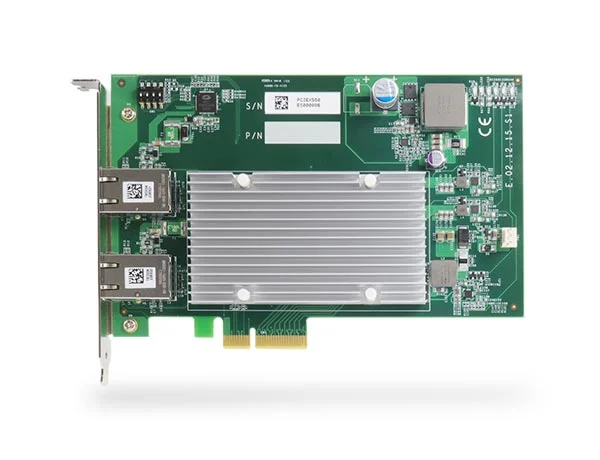

Neousys PCIe-PoE550X 2-port 10GbE Network adapter Card, PoE+ Capability with Neousys
Are you tired of slow network speeds and dropped connections? Look no further than the Neousys PCIe-PoE550X 2-port 10GbE Network adapter Card, PoE+ Capability. This powerful network adapter is designed to provide fast and reliable network connections, making it perfect for businesses and individuals who need to transfer large amounts of data. With its Neousys technology, you can trust that you are getting a high-quality product that will meet your needs. The Neousys PCIe-PoE550X is used for providing fast and reliable network connections, and it is especially useful for applications that require high network speeds, such as video streaming and online gaming.
Key Features
- 2-port 10GbE Network adapter Card, providing fast and reliable network connections
- PoE+ Capability, providing up to 25.5W per port
- Gen3 PCI Express x4 bus interface, providing a fast and reliable connection to your computer
- Supports 15.5 KB jumbo frame, teaming, and IEEE 1588, providing advanced network features
- IEEE 802.3an, 802.3ab, and 802.3bz compliant, providing compatibility with a variety of network standards
- CAT 6a, CAT 6, and CAT 5e cable support, providing flexibility in your network setup
- Maximum 11.5W power requirement for 2x 10 GbE operation, providing an energy-efficient solution
- Maximum 51W power requirement for powering PoE+ devices, providing a reliable power source
- Operating temperature range of 0C to 60C, providing a reliable solution in a variety of environments
- CE Class A, FCC Class A, and IEC 61000-4-x Class/Level 3 compliant, providing a safe and reliable solution
Specifications
| General |
|
| Bus Interface |
Gen3 PCI Express x4 |
| Networking |
|
| # of 10 GbE Port |
2x 10 GbE ports by Intel® X550-AT2 controller, supporting 15.5 KB jumbo frame, teaming and IEEE 1588 |
| Network Protocol Support |
IEEE 802.3 Ethernet interface for 10GBASE-T (IEEE 802.3an), NBASE-T (IEEE 802.3bz)
and 1000BASE-T (IEEE 802.3ab)
|
| PoE Capability |
Optional IEEE 802.3at-2009 (PoE+), up to 25.5W per port |
| Cable Requirement |
For 10GBASE-T: CAT 6a (100 meters) or CAT 6 (55 meters)
For 5 Gbps NBASE-T: CAT 6 (100 meters)For 2.5 Gbps NBAST-T: CAT 5e (100 meters)
|
| Power |
|
| Power Requirement |
Maximum 11.5W for 2x 10 GbE operationMaximum 51W for powering PoE+ devices |
| Environmental |
|
| Operating Temperature |
0°C to 60°C with air flow |
| Compliance |
|
| EMC |
CE Class A, according to EN 55024/55032FCC Class A, according to FCC Part 15, Subpart B |
| EMS |
IEC 61000-4-x Class/Level 3 |
| Mechanical |
|
| Dimension |
168 mm (W) x 111.2 mm (H) |
