If you are looking for a reliable and powerful embedded industrial PC, you may have noticed that many options on the market are not designed to meet the specific needs of industrial applications. They often lack the necessary features, such as robust construction, high-performance processing, and flexible expansion options. This can lead to decreased productivity, increased downtime, and higher maintenance costs. The Neousys POC-715, Intel Core i3-N305 Embedded Industrial PC is designed to solve these problems by providing a rugged, high-performance, and highly customizable solution for industrial applications. With its powerful Intel Core i3-N305 processor, robust construction, and flexible expansion options, this PC is ideal for a wide range of industrial applications, from manufacturing and automation to transportation and energy management.

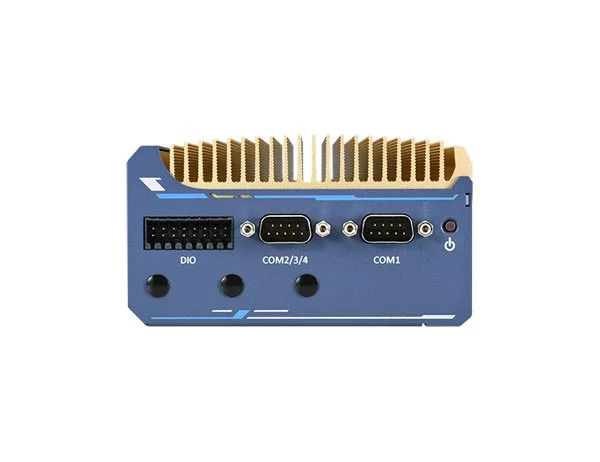

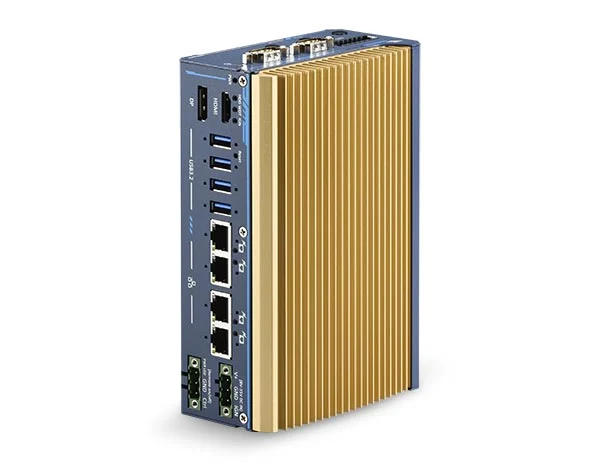

Neousys POC-715, Intel Core i3-N305 Embedded Industrial PC with Neousys
Are you tired of using industrial PCs that are not designed to meet the specific needs of your application? Look no further than the Neousys POC-715, Intel Core i3-N305 Embedded Industrial PC. This powerful and rugged PC is designed to provide high-performance processing, flexible expansion options, and robust construction, making it ideal for a wide range of industrial applications. With Neousys, you can trust that your industrial PC will be reliable, efficient, and highly customizable to meet the specific needs of your application. The Neousys POC-715 is a game-changer for industries that require high-performance computing, such as manufacturing, automation, and transportation.
Key Features
- Intel Core i3-N305 processor with 8C/8T and 1.8/3.8 GHz frequency
- Up to 16 GB DDR5-4800 SDRAM with one SODIMM socket
- Integrated Intel UHD Graphics with 32EUs
- 4x GbE Ethernet ports by Intel i350-AM4
- 1x DP++1.2 and 1x HDMI 1.4b for native video output
- 1x software-programmable RS-232/422/485 port and 3x 3-wire RS-232 ports
- 4x USB 3.2 Gen2 ports with screw-lock
- 1x M.2 2280 M key socket for NVMe SSD storage
- 1x full-size mini PCI Express socket with internal micro SIM socket
- 1x MezIO expansion interface for Neousys MezIO modules
Specifications
| System Core |
|
| Processor |
Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) |
| Graphics |
Integrated Intel® UHD Graphics with 32EUs |
| Memory |
Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM |
Supports TPM 2.0 |
| Panel I/O Interface |
|
| Ethernet |
4x GbE Ethernet ports by Intel® i350-AM4 |
| PoE+ |
IEEE 802.3at PoE+ on port #1~4
- 30W power budget (with UL certified)
- 100W power budget (maximum) |
| Native Video Port |
1x DP++1.2, Supporting 4096 x 2160 resolution
1x HDMI™ 1.4b, Supporting 3840 x 2160 30Hz |
| Serial Port |
1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
| USB |
4x USB 3.2 Gen2 ports with screw-lock |
| Isolated DIO |
4-CH isolated DI and 4-CH isolated DO |
| Storage Interface |
|
| M.2 |
1x M.2 2280 M key socket (PCIe Gen3 x1) for NVMe SSD storage (supports SATA signal) |
| Expansion Bus |
|
| Mini-PCIe |
1x full-size mini PCI Express socket with internal micro SIM socket |
| Expandable I/O |
1x MezIO® expansion interface for Neousys MezIO® modules |
| Power Supply |
|
| DC Input |
1x 3-pin pluggable terminal block for 8 to 35V DC input |
| Remote Ctrl & LED Output |
1x 3-pin pluggable terminal block for remote control and power LED |
| Mechanical |
|
| Dimension |
64 (W) x 116 (D) x 176 (H) mm |
| Weight |
1.2 kg |
| Mounting |
DIN-rail mount (standard) or wall-mount (optional) |
| Fan |
Optional external-accessible 80mm x 80mm fan for system heat dissipation |
| Environmental |
|
| Operating Temperature |
-25°C to 70°C* |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
10% to 90%, non-condensing |
| Vibration |
MIL-STD-810H, Method 514.8, Category 4 |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
