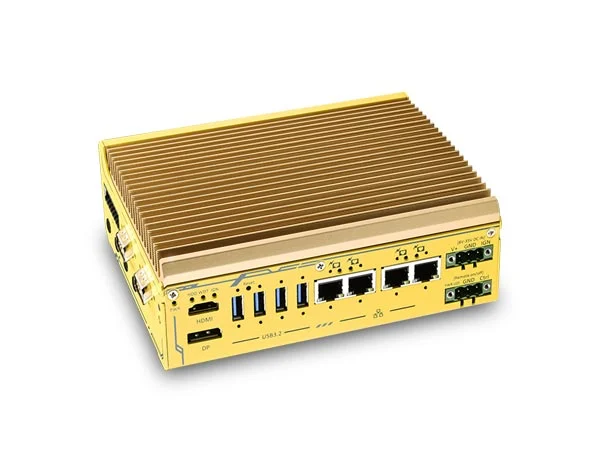

Neousys POC-751VTC, Intel Alder Lake Core i3-N305, 16 GB SDRAM, Industrial PC
POC-751VTC is Neousys' next-generation ultra-compact in-vehicle computer with E-Mark certification for in-vehicle applications such as a mobile gateway, mobile surveillance, and passenger information system.
POC-751VTC utilizes the latest Intel® Alder Lake i3-N305 with eight CPU cores and supports up to 16GB of DDR5-4800 memory, capable of delivering up to 1.5x the CPU performance when compared to previous POC-551VTC. And with Intel's UHD Graphics supporting Open Visual Inference and Neural network Optimization (OpenVINO), users can execute deep learning and inference models for light AI applications.
The system offers four 802.3at PoE+ ports to supply 25W power to compatible connected devices such as IP cameras. Internal expansion wise, the system features two heatsink cooled mini-PCIe slots for wireless communication module installation which is essential for future intelligent vehicle applications. There are also two isolated CAN 2.0 ports that support SocketCAN in Linux for in-vehicle communications, and isolated digital I/Os for sensor and actuator control. Power input wise, it accepts wide range 8V to 35V DC input with built-in ignition power control to suit a variety of vehicle deployments.
With the combination of ignition power control, wide-range DC input, rich I/Os, and edge AI capabilities, POC-751VTC is the perfect ultra-compact solution for modern intelligent in-vehicle applications.
Features:
- Intel® Alder Lake Core™ i3-N305 processor 15W with 8 E-Cores
- 4x GbE PoE+ ports/ 4x USB3.2 Gen 2 with screw-lock
- DP++/ HDMI 1.4b dual display outputs
- 2x isolated CAN 2.0 port, supporting SocketCAN in Linux
- 2x mPCIe for WiFi/ 4G/ 5G module with conduction-cooled heatsink
- 8-CH isolated DI & 8-CH isolated DO
- 8V - 35V DC input with built-in ignition power control
- E-Mark certified and EN 50155 EMC compliant
Specifications:
| System Core |
|
| Processor |
Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) |
| Graphics |
Integrated Intel® UHD Graphics with 32EUs |
| Memory |
Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM |
Supports TPM 2.0 |

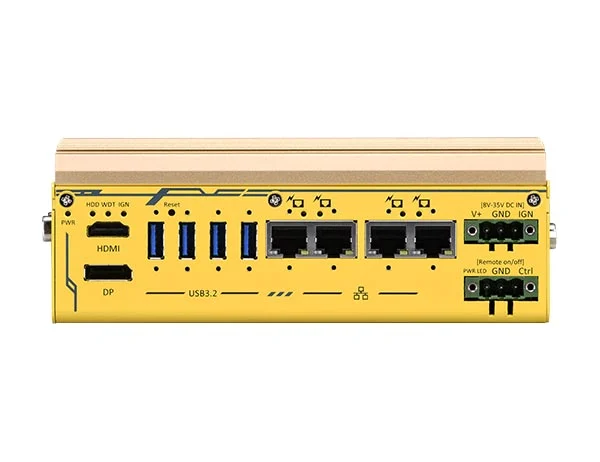

| Panel I/O Interface |
|
| Ethernet |
4x Gb Ethernet ports by Intel® I350-AM4 |
| PoE |
4x IEEE 802.3at Gigabit PoE+ ports via RJ45 connector |
| USB |
4x USB 3.2 Gen2 ports with screw-lock |
| CAN Bus |
2x isolated CAN 2.0 ports, supporting SocketCAN in Linux |
| Isolated DIO |
4x isolated DI and 4x isolated DO (on MB)
4x isolated DI and 4x isolated DO (on MezIO)
|
| Video Port |
1x DP++, supporting 4096 × 2160 @ 60Hz
1x HDMI 1.4b, supporting 3840 × 2160 @ 30Hz
|

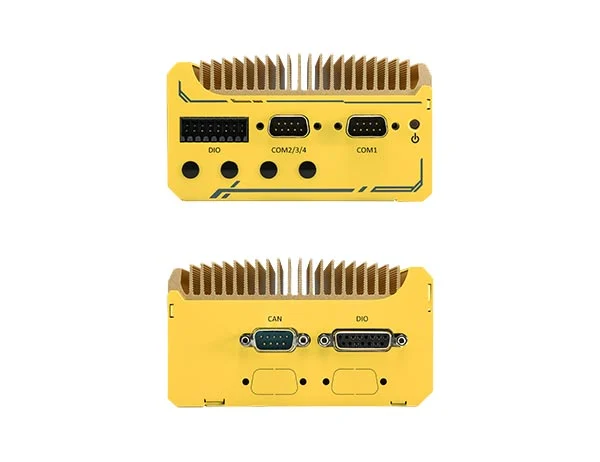

| Serial Port |
1x software-programmable RS-232/422/485 port (COM1)
3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
|
| Storage Interface |
|
| M.2 |
1x M.2 2280 M Key socket for SATA SSD storage |
| Expansion Bus |
|
| Mini PCIe |
2x full-size Mini PCIe for WiFi/4G/5G module with conduction-cooled heatsink |
| Power Supply |
|
| DC Input |
1x 3-pin pluggable terminal block for 8V to 35V DC input (IGN/GND/V+) |
| Ignition Control |
Built-in ignition power control |
| Remote Control & LED Output |
1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical |
|
| Dimensions (W × D × H) |
176 × 116 × 64 mm |
| Weight |
1.7 kg |
| Mounting |
Horizontal-type wall-mount (Standard)
|
| Environmental |
|
| Operating Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Humidity |
10% to 90%, non-condensing |
| Vibration |
EN 50155:2017 / IEC 61373, Category I, Class B – Body mounted |
| Shock |
EN 50155:2017 / IEC 61373, Category I, Class B – Body mounted |
| EMC |
E-Mark, EN 50121 (EN 50155 EMC)CE/FCC Class A, according to EN 55032 & EN 55035 |
