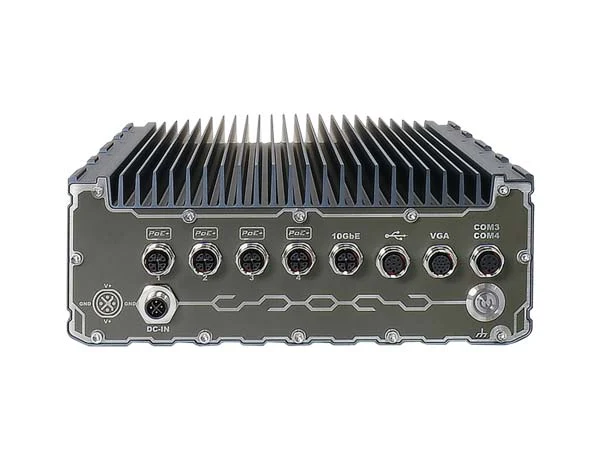

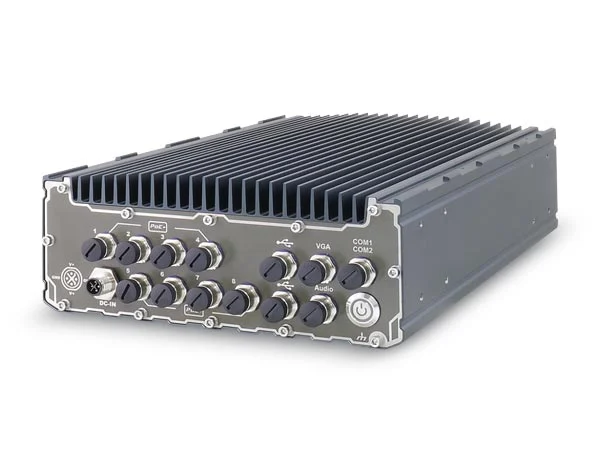

Neousys SEMIL-1714J, Half-rack IP67 Waterproof Industrial Computer

Neousys SEMIL-1714J, Half-rack IP67 Waterproof Industrial Computer

Neousys SEMIL-1714J, Half-rack IP67 Waterproof Industrial Computer is built for industrial environments where reliable computing, protected connectivity, and rugged operation are required. This half-rack industrial computer supports Intel® Xeon® E and 9th/ 8th-Gen CPUs using the LGA1151 socket, with integrated Intel® UHD Graphics 630 and up to 64 GB ECC/ non-ECC DDR4 memory.

The SEMIL-1714J provides multiple industrial I/O interfaces for connecting networking equipment, displays, serial devices, and USB peripherals. It includes four Gigabit PoE+ ports, with one Intel® I219 port and three Intel® I210 ports, as well as an optional 10 GbE port. The PoE+ ports can provide up to 25.5W each for compatible connected devices.

For storage and expansion, the system supports two internal SATA ports for 2.5-inch HDD or SSD installation with RAID 0/1, two full-size mSATA ports, and one M.2 2280 M key socket for an NVMe SSD or Intel® Optane™ memory installation. Two full-size mini PCI Express sockets provide additional expansion flexibility for industrial applications.

The computer is designed for vehicle and industrial installations with an 8V to 48V DC input, built-in ignition power control, and a SuperCAP UPS with a 2500 watt-second capacity. Its VGA output supports up to 1920 x 1200 resolution, while RS-232, USB 2.0, and M12-connected interfaces support integration with industrial equipment and field systems.

With its compact 220mm x 310mm x 90.5mm mechanical design, rack-mounting and wall-mounting options, and industrial environmental specifications, the SEMIL-1714J can be deployed in space-constrained industrial systems. Its MIL-STD-810G vibration and shock specifications, broad operating temperature capabilities, and CE/FCC Class A compliance support use in demanding industrial and transportation environments.

Key features

• Supports Intel® Xeon® E and 9th/ 8th-Gen CPU with LGA1151 socket

• Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM

• 4x Gigabit PoE+ ports with IEEE 802.3at support

• Optional 10 GbE port by Intel® X550AT controller

• Supports 2.5" HDD/ SSD, mSATA, and M.2 NVMe storage

• 8V to 48V DC input with built-in ignition power control

• SuperCAP UPS with 2500 watt-second capacity

• Rack-mounting and wall-mounting for industrial installations

SPECIFICATION
