When you need a fast, reliable connection for industrial IoT or edge devices, slow or unstable networks cause downtime and lost data. This matters because every minute of interruption can cost money and affect safety. The Neoway N510M 5G Wireless Module gives you a ready-to-use 5G link that works with LTE fallback, so you stay online without extra hardware.

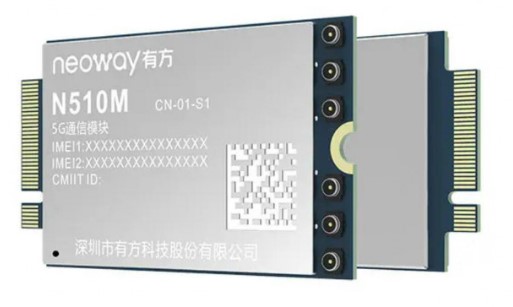

Neoway N510M 5G Wireless Module with Neoway
Speed that keeps your machines moving. The Neoway N510M is a compact 75-pin M.2 module that brings true 5G performance to any compatible board. It is designed for developers who need a single card that can handle 5G, LTE, and older UMTS networks. If your project stalls because the network cannot keep up, this module solves the problem by delivering up to 2 Gbps downlink and seamless fallback to 600 Mbps LTE.
Key Features
- Supports 5G NR bands n1, n28, n41, n77, n78, n79.
- LTE-FDD bands B1, B3, B5, B7, B8 for fallback.
- Dual-core ARM Cortex-A55 processor up to 1.35 GHz.
- 2 Gb flash memory for local storage and firmware.
- RNDIS and NCM dial-up support for easy PC connectivity.
- Six antenna ports for optimal signal gain.
- PCIe Gen2 and USB 2.0/3.1 interfaces for flexible board design.
- UART, I2S, and UART interfaces for peripheral control.
- Supply voltage 3.4 V to 4.3 V, typical 3.8 V.
Specifications
| General |
|
| Highlight |
Support RNDIS and NCM dialup
Support IPv4, IPv6, and IPv4/v6 dual-stack
Support PCIe Gen2 interface
Support USB 2.0/3.1
Support two USIM interfaces |
| Application Interfaces |
|
| PCIe |
PCIe Gen 2 |
| USB |
USB 2.0/3.1 |
| I2S |
Supported |
| UART |
Supported |
| USIM |
USIM(1.8V/3.0V) × 2 |
| Certification Approvals |
|
| Certification Approvals |
CCC*, CTA*, SRRC*, CE-R*, RoHS* |
| Frequency |
|
| 5G NR |
n1*/n28*//n41/n77/n78/n79 |
| LTE-FDD |
B1/B3/B5/B7/B8 |
| LTE-TDD |
B34/B38/B39/B40/B41 |
| UMTS |
B1/B2/B5/B8 |
| Electrical |
|
| Supply voltage |
3.4 to 4.3 V(DC), Typ.: 3.8V |
| Operating temperature |
-20°C to +70°C |
| Power consumption |
TBD |
| Mechanical |
|
| Dimensions |
52.0 mm × 30.0 mm × 3.8 mm |
| Package |
75-pin M.2 |
| Antenna Qty. |
6 |
| Processor & Memory |
|
| Processor |
Dual-core ARM Cortex-A55 processor, up to 1.35 GHz |
| Memory |
2Gb Flash |
| Data Rate |
|
| 5G NR |
NR DL: 2Gbps (@100MHz 1CC, 256QAM); NR UL: 1Gbps (@100MHz 1CC, 256QAM) |
| LTE |
DL Cat 12 with 600 Mbps; UL Cat 13 with 150 Mbps |
| WCDMA |
DL Cat 24 (64QAM, DC-HSDPA), throughput up to 42.2 Mbps; UL Cat 7 (16QAM, HSUPA),
throughput up to 11 Mbps
|
| Firmware |
|
| Firmware upgrade |
Via USB or FOTA* |
