Imagine a device that can stay online even when Wi-Fi drops out or cables fail. The Neoway N511 5G Cellular module gives you that reliability. It is a compact M.2 card that brings fast 5G, LTE and older networks to any compatible hardware. If you have been frustrated by lost connections in remote locations, this module solves the problem. You need a steady link to send data, run apps, or manage machines, and Neoway delivers it.

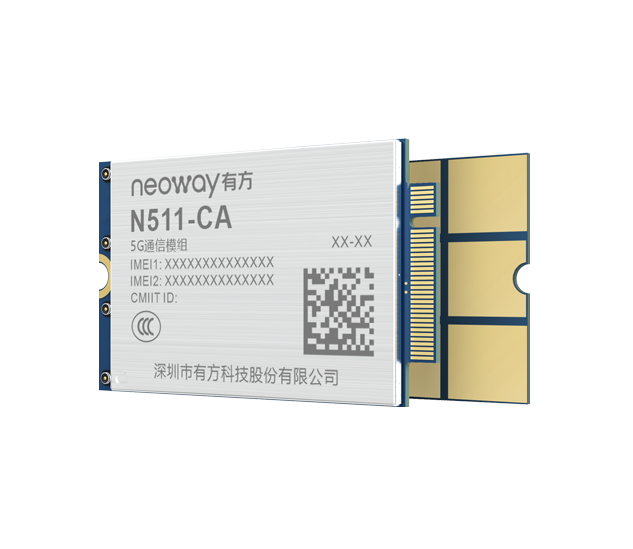

Neoway N511 5G Cellular module
Many IoT projects, industrial controllers and edge computers lose productivity because they rely on weak or unavailable Wi-Fi. That downtime can cost money and damage reputation. The N511 removes that risk by providing a built-in cellular link that works on 5G, LTE and UMTS bands. It plugs into a standard M.2 slot, draws little power and starts up quickly. In short, it turns any device into a self-contained, always-connected unit.
Usages of Neoway
The module fits well in smart meters that must report usage 24/7. It powers remote surveillance cameras that need a reliable feed in rural areas. Factory robots can stay linked to the cloud even when the plant network is down. Mobile kiosks, digital signage and vending machines all benefit from a cellular backup. In each case the Neoway N511 gives you a simple way to keep data flowing.
Benefits
- Fast 5G speeds let you upload large files in seconds, keeping operations smooth.
- Wide band support ensures connectivity in many countries and regions.
- Low power draw extends battery life for portable or solar-powered devices.
- Rugged temperature range lets the module survive harsh indoor and outdoor settings.
- Plug-and-play M.2 form factor reduces installation time and cost.
Key Features
- Supply voltage 3.4 V ~ 4.3 V, typical 3.8 V.
- Compact size 52 mm 30 mm 2.45 mm.
- M.2 package fits standard slots.
- Operating temperature from -20 C to +70 C.
- PCIe Gen 2, USB 2.0/3.1, I2S, UART interfaces.
- USIM slot supporting 1.8 V and 3.0 V cards.
- 5G NR bands n1, n3, n8, n28, n41, n77, n78, n79.
- LTE bands B1, B3, B5, B8, B34, B38, B39, B40, B41.
- UMTS bands B1, B5, B8.
- Supports PPP, RNDIS, TCP, UDP, FTP, HTTP, HTTPS, NTP, IPv4 and IPv6.
- Certified for China, SEA markets (CCC*, SRRC*, CTA*).
Specifications
| Supply Voltage |
3.4 V ~ 4.3 V, typical: 3.8 V |
| Dimensions |
52.0 mm x 30.0 mm x 2.45 mm |
| Package |
M.2 |
| Operating temperature |
-20℃ ~ +70℃ |
| Interface |
PCIe Gen 2
USB 2.0/3.1
I2S
UART
USIM (1.8 V/3.0 V) |
| Frequency Bands |
5G NR: n1/n3/n8/n28/n41/n77/n78/n79;
LTE: B1/B3/B5/B8/B34/B38/B39/B40/B41;
UMTS: B1/B5/B8 |
| Protocol |
PPP/RNDIS/TCP/UDP/FTP/HTTP/HTTPS/NTP/
IPv4/IPv6 |
| Region |
China/SEA |
| Certifications |
CCC*, SRRC*, CTA* |
