NetApp AFF A250, 2U 4 NVMe Slots Dual Controller HA SAN/NAS System

NetApp AFF A250 is a 2U dual-controller HA SAN/NAS system designed for storage environments that need flexible connectivity, NVMe support, and scale-out capacity. Its active-active dual-controller design provides a compact storage platform with 4 PCIe expansion slots, 16 x 32Gb FC target ports, 4 x 100GbE ports, and 20 x 25GbE ports. With support for NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, and Amazon S3, the NetApp AFF A250 supports a broad range of specified storage networking protocols.

NetApp AFF A250 2U Dual Controller HA SAN/NAS System

Storage infrastructures often require a system that can support different networking protocols, host operating systems, and storage media while providing room for future scale-out. The NetApp AFF A250 uses an active-active dual-controller configuration in a 2U controller form factor and supports up to 2 to 24 nodes, or 12 HA pairs, per cluster. A cluster can support up to 576 SSDs and a maximum effective capacity of 35PB.

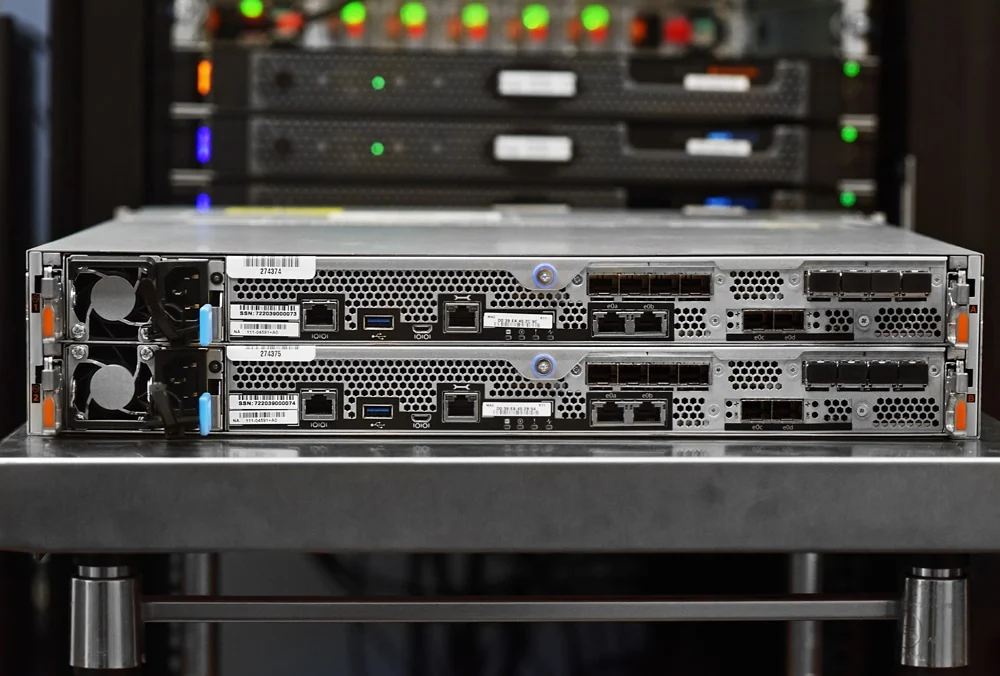

The system provides a wide selection of connectivity options. Each active-active dual-controller system includes 16 x 32Gb autoranging FC target ports, 4 x 100GbE ports with 40GbE autoranging, 20 x 25GbE ports with 10GbE autoranging, 4 x 10Gbase-T ports with 1GbE autoranging, and 8 x 12Gb/6Gb SAS ports. The system also supports NS224 and DS224C shelves and runs ONTAP 9.8 RC1 or later.

Benefits

• Active-active dual-controller design provides the specified HA configuration.

• Up to 24 nodes support scale-out cluster expansion.

• Up to 576 SSDs provide large-scale storage capacity.

• Multiple FC and Ethernet interfaces support flexible connectivity.

• Broad storage networking support accommodates SAN and NAS environments.

Usages

The NetApp AFF A250 is designed for storage infrastructures that need both SAN and NAS connectivity. Its supported storage networking options include NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, and Amazon S3, allowing the system to work with the specified storage access methods.

For expansion, the system supports NS224 2U shelves with 24 SFF NVMe drives and DS224C 2U shelves with 24 2.5" SFF drives. At the cluster level, the platform supports 2 to 24 nodes, with a maximum of 12 HA pairs, and up to 576 SSDs.

The NetApp AFF A250 also supports a range of host and client operating systems, including Microsoft Windows, Linux, Oracle Solaris, AIX, HP-UX, macOS, VMware, and ESX. Its 2U controller form factor and 491W median power consumption provide the specified system configuration for rack-based storage deployments.

Key Features

• NetApp AFF A250

• 2U controller form factor

• Active-active dual controller

• 4 PCIe expansion slots

• 16 x 32Gb FC target ports

• 4 x 100GbE ports

• 20 x 25GbE ports

• 4 x 10Gbase-T ports

• 8 x 12Gb/6Gb SAS ports

• Up to 24 nodes per cluster

• Up to 576 SSDs

• Maximum effective capacity of 35PB

Specifications
