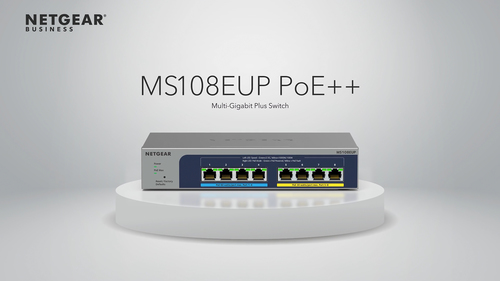

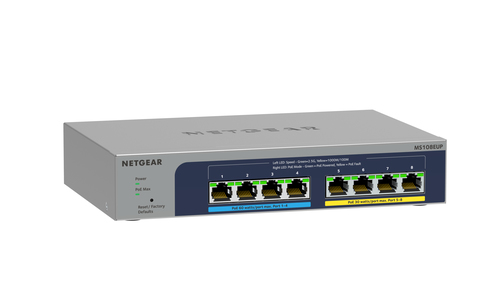

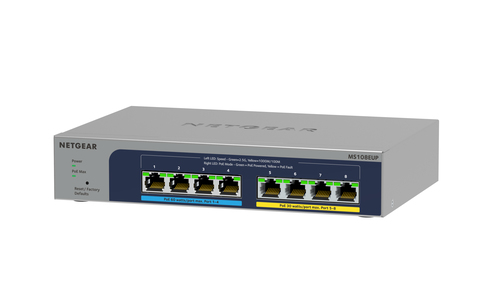

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.
Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.
PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.
Specifications
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
64 |
| Virtual LAN features |
Port-based VLAN, Tagged VLAN |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
100BASE-T, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
12000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
40 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Password protection |
Yes |
| Queue scheduling algorithms |
Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Number of multicast groups filtered |
128 |
| Multicast support |
Yes |
| Design |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Grey |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Mean time between failures (MTBF) |
373644 h |
| Power |
| Power supply included |
Yes |
| Power source |
PoE |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
230 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
900 g |
| Height |
40 mm |
| Depth |
140 mm |
| Width |
210 mm |
| Certificates |
| Certification |
CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
