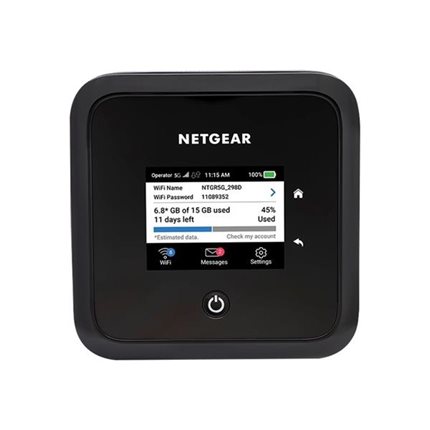

NETGEAR Nighthawk MR5200 5G Mobile Router
NETGEAR Nighthawk MR5200 is a 5G Mobile Router designed to provide fast and flexible wireless connectivity for home, travel, remote work, and mobile networking applications. Powered by the Qualcomm SDX55 chipset, it combines 5G connectivity with WiFi performance in a compact portable design.
The router delivers AX1800 maximum PHY throughput, with up to 1.2Gbps on the 5GHz band and 600Mbps on the 2.4GHz band. This provides high-speed wireless connectivity for compatible laptops, smartphones, tablets, and other connected devices.
The NETGEAR Nighthawk MR5200 supports a wide range of North American and European 4G/LTE, 5G/NR, and 3G/WCDMA bands. This broad band support provides flexible connectivity for compatible mobile network deployments across supported regions.
A 2.4-inch touch LCD panel provides an external display for convenient device interaction and data usage management. The MR5200 also includes one Gigabit Ethernet port, one USB Type-C port, and two TS9 RF ports for flexible wired and RF connectivity.
The 5040mAh battery supports portable operation, making the Nighthawk MR5200 suitable for mobile offices, travel, temporary internet access, remote locations, and other applications where a dedicated 5G mobile router can provide convenient connectivity.
Key Features
-
Qualcomm SDX55 chipset for 5G mobile connectivity
-
AX1800 maximum WiFi PHY throughput
-
Up to 1.2Gbps on 5GHz and 600Mbps on 2.4GHz
-
2.4-inch touch LCD panel
-

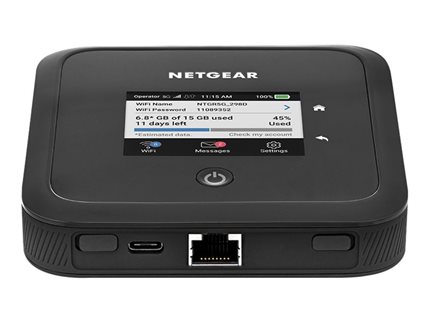

1 × Gigabit Ethernet and 1 × USB Type-C port
-
2 × TS9 RF ports for external RF connectivity
-
5040mAh battery for portable operation
-
Supports North American and European cellular bands
Specifcations:
| Category |
Description |
| Chipset |
Qualcomm SDX55 |
| WiFi |
AX1800 max throughput (PHY) |
| 5GHz |
1.2Gbps |
| 2.4GHz |
600Mbps |
| Data Usage Meter |
Manage your data and how much you use |
| External Display |
2.4” touch LCD panel |
| Battery |
A5040mAh battery |
| USB Port |
One (1) USB Type-C |
| Ethernet Port |
One (1) Gigabit Ethernet |
| RF Ports |
Two (2) TS9 RF ports |
| North America 4G/LTE Bands |
1, 2, 3, 4, 5, 7, 12, 13, 14, 25, 29, 30, 38, 41, 46, 48, 66, 71 |
| North America 5G/NR Bands |
n2, n5, n25, n41, n66, n71, n78 |
| North America 3G/WCDMA Bands |
1, 2, 5, 8 |
| Europe 4G/LTE Bands |
1, 3, 7, 8, 20, 28, 38, 40 |
| Europe 5G/NR Bands |
n1, n28, n77, n78 |
| Europe 3G/WCDMA Bands |
1, 2, 5, 8 |
