Businesses that rely on internet traffic often face attacks that slow or stop their services. When a network is compromised, customers lose trust and revenue drops. The NetScout Arbor Edge Defense 8100 2U Security Appliance stops those attacks before they reach your servers, keeping traffic fast and safe. It gives you a single device that watches, blocks, and reports threats so you can focus on running your business.

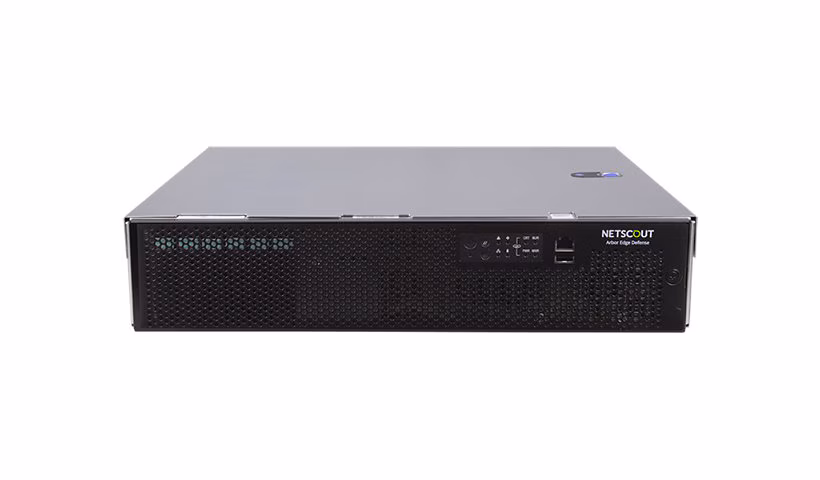

NetScout Arbor Edge Defense 8100 2U Security Appliance with NetScout
If you need a strong shield for your data center, this appliance is the answer. It is a high-performance security gateway that inspects every packet and stops DDoS, malware, and other attacks in real time. Companies that run web sites, cloud services, or VoIP often see traffic spikes that can hide attacks. Without a device like this, you risk downtime and costly recovery. NetScouts proven technology gives you confidence that your network stays online.
Key Features
- 2U rack-mount chassis, 3.45 in height.
- Dual hot-swap AC/DC power supplies, 850 W each.
- 2 x 240 GB SSDs in RAID 1 for fast, reliable storage.
- Integrated hardware bypass for uninterrupted traffic flow.
- Software bypass option for inspection-free pass-through.
- 4 x 1 GbE and up to 8 10 GbE bypass ports.
- Latency under 80 microseconds.
- ArbOS operating system with advanced threat intelligence.
- Two 10/100/1000 Base-T copper management ports and serial console.
- Operating temperature 41 F-104 F, humidity 5-85 %.
- Full regulatory compliance: UL, CE, FCC, RoHS, and more.
Specifications:
| Features |
8100 |
| Physical Dimensions |
Chassis: 2U rack height
Height: 3.45 inches (8.67 cm)
Width: 17.14 inches (43.53 cm)
Depth: 20 inches (50.8 cm)
Weight: 36.95 lbs. (17.76 kg) |
| Power Options |
DC: 2 x DC redundant, hot swap capable power supplies
DC Power Ratings: -40 to -72 Vdc, 28/14 A max (per DC input)
AC: 2 x AC redundant, hot swap capable power supplies
AC Power Ratings: 100 to 240 VAC, 50 to 60 Hz, 12/6 A max
Both AC and DC power options are 850-watt. |
| Hard Drives |
2 x 240GB SSD in RAID 1 Configuration |
| Environmental |
Operating: Temperature : 41ºF to 104ºF (5º to 40ºC) Humidity: 5–85%;
Non-Operating: Temperature -40º to 158ºF (-40º to 70ºC); Humidity 95% |
| Operating System |
Our proprietary ArbOS® operating system |
| Management Interfaces |
2 x 10/100/1000 BaseT Copper; RJ-45 serial console port |
| Protection Interfaces |
• 4 x 1 GigE bypass ports (LX, SX or copper)
• 8 x 1 GigE bypass ports (LX, SX, copper or mixed)
• 12 x 1 GigE bypass ports (LX, SX, copper or mixed)
• 4 x 10 GigE bypass ports (LR or SR)
• 8 x 10 GigE bypass ports (LR, SR, or mixed) |
| Traffic Bypass Options |
Integrated hardware bypass; Internal “software” bypass to pass traffic without inspection |
| Latency |
Less than 80 microseconds |
| Availability |
Inline bypass, dual power supplies, solid-state hard drive RAID cluster |
| Regulatory Compliance |
UL 60950-1 2nd edition/CSA C22.2 No.60950-1-07 2nd Edition, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, CB Certificate and Report to IEC62368-1 and IEC609501, 2nd edition and all international deviations, CE, FCC 47CFR Parts 15, Verified Class A limit, ICES-003 Class A Limit, VCCI Class A ITE, RoHS (recast) Directive 2011/65/ EU, Moroccan Conformity Mark, KC (Korea) Approval, RCM (Australia/New Zealand) Approval, EAC (Russia) |
