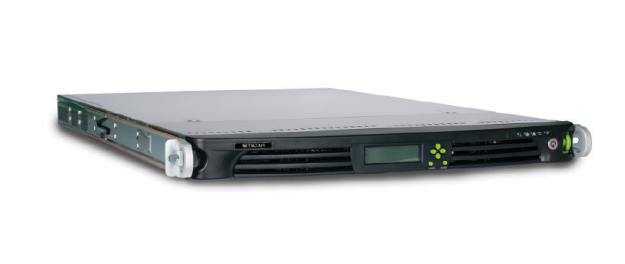

Netscout InfiniStreamNG 2410 16TB 4-Port 1GbE Network Monitoring Appliance
InfiniStreamNG Platform Overview The InfiniStreamNGTM platform represents the next evolution of NETSCOUT’s high capacity and flexible appliances that leverage Adaptive Service IntelligenceTM (ASI) technology to perform deep packet capture and analysis of services, service enablers and network performance. Offering unsurpassed scalability, InfiniStreamNG probes are integrated with the nGeniusONE® Service Assurance platform to provide a common set of packet-flow-based metadata for use in troubleshooting, service and application performance, detailed key performance indicators, as well as real-time and historical forensic analysis. NETSCOUT® offers multiple InfiniStreamNG models (appliance, COTS-based software and virtual appliances) to support the different processing and storage needs of enterprise and service provider environments including business services, mobile, fixed-line voice, residential triple-play, satellite and cable/MSO networks.
Highlights
• Provides storage capacity of 16TB
per appliance
• Supports NETSCOUT’s suite of Service
Assurance applications
• Designed for smaller scale environments
Specifications
| Product |
InfiniStreamNG 2410 Appliance |
| Packet Capture Ports |
4 Port 1 GbE SFP |
| Transceivers |
Ordered separately from NETSCOUT |
| Management Port |
2 RJ-45 1/10GBASE-T |
| IPMI |
1 IPMI 1000BASE-T |
| Storage |
16TB (RAID 5) |
| Operating System Storage |
Solid State Drive (SSD) dedicated to Linux® OS |
| Rack Unit |
1 Rack Unit (1RU) |
| Height |
1.7 in (43 mm) |
| Width |
17.2 in (437 mm) |
| Depth |
25.6 in (650 mm) |
| Weight |
38 lbs (17.24 kg) |
| Mounts |
Rack mount side rails included |
| Power Rating (AC) |
1+1 hot-swappable, redundant |
| AC Power Rating |
700W: 100-140 VAC, 50-60 Hz, 8.0-6.0 Amp |
| AC Power Rating |
750W: 180-240 VAC, 50-60 Hz, 4.5-3.8 Amp |
| Maximum Consumption (AC) |
2.7A, 262W |
| Heat Dissipation (AC) |
894 BTU/hr |
| Power Rating (DC) |
1+1 hot-swappable, redundant |
| DC Power Rating |
-48VDC, 650W, 20A (x2) |
| Maximum Consumption (DC) |
5.9A, 281W |
| Heat Dissipation (DC) |
959 BTU/hr |
| Vibration |
0.25G from 5-200 Hz for 15 minutes |
| Operating Temperature |
41° to 95°F (5° to 35°C) |
| Operating Humidity |
8% - 90% (non-condensing) |
| Altitude |
-50 to 10,000 ft (-16 to 3,048 m) |
| Mechanical Shock |
1 shock pulse of 20G for up to 2.5ms |
| Regulatory Approvals |
FCC Part 15 Class A, CE Mark (EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3), VCCI (Japan) Class A, RCM (Australia), RRA (Korea) KC Cert #: KCC-REM-NSZNV41U, UL 60950-1, CAN/CSA C22.2 No.60950, IEC 60950-1, EN 60950-1, CB Report, UL-GS (DEMKO) |
