Are you tired of using low-quality battery testing systems that do not provide accurate results? Do you want a reliable and efficient way to test your batteries? Look no further than the Neware BTS4000-5V6A, 8 Channels per Unit, Battery testing system. This product is designed to provide you with accurate and reliable results, making it an essential tool for anyone who works with batteries. With its advanced features and user-friendly interface, this battery testing system is the perfect solution for your battery testing needs. The Neware brand is known for its high-quality products, and this battery testing system is no exception.

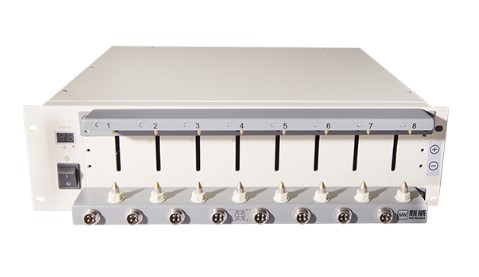

Neware BTS4000-5V6A, 8 Channels per Unit, Battery testing system
The Neware BTS4000-5V6A, 8 Channels per Unit, Battery testing system solves the problem of inaccurate battery testing results. This problem matters to users because inaccurate results can lead to faulty batteries being used, which can cause damage to devices and even pose a safety risk. The Neware BTS4000-5V6A provides a clear solution by using advanced technology to provide accurate and reliable results. With its 8 channels per unit, this battery testing system can test multiple batteries at once, making it a efficient solution for users who need to test a large number of batteries.
Key Features
- 8 channels per unit: The Neware BTS4000-5V6A has 8 channels per unit, allowing you to test multiple batteries at once.
- Advanced data acquisition and analysis: The Neware BTS4000-5V6A has advanced data acquisition and analysis capabilities, providing you with detailed information about your batteries.
- Accurate and reliable results: The Neware BTS4000-5V6A provides accurate and reliable results, giving you confidence in your battery testing.
- User-friendly interface: The Neware BTS4000-5V6A has a user-friendly interface, making it easy to use and navigate.
- Cost-effective: The Neware BTS4000-5V6A is a cost-effective solution for battery testing, providing accurate and reliable results at a lower cost than other battery testing systems.
- Supports multiple battery types: The Neware BTS4000-5V6A supports multiple battery types, including lithium-ion, nickel-cadmium, and lead-acid batteries.
- Advanced safety features: The Neware BTS4000-5V6A has advanced safety features, such as overcharge protection and short-circuit protection, to ensure safe and reliable testing.
- Compact design: The Neware BTS4000-5V6A has a compact design, making it easy to use in a variety of settings.
- Easy to maintain: The Neware BTS4000-5V6A is easy to maintain, with a simple and intuitive design that makes it easy to perform routine maintenance tasks.
- Supports multiple testing modes: The Neware BTS4000-5V6A supports multiple testing modes, including constant current, constant voltage, and pulse testing.
- Provides detailed test reports: The Neware BTS4000-5V6A provides detailed test reports, giving you a comprehensive understanding of your batteries' performance.
Note: This model does not have a temperature measurement function. An additional auxiliary channel module is required to test the temperature,
Specifications
| Input |
|
| AC |
AC 220V/110V ±10% / 50Hz |
| Input power |
425 W |
| Resolution |
AD: 16bit；DA: 16bit |
| Input impedance |
≥1MΩ |
| Voltage |
|
| CV output range |
25mV~5V |
| Min discharge voltage |
1.0V for universial holder,1.5V for 2m cable |
| Accuracy |
± 0.05% of FS |
| Stability |
± 0.05% of FS |
| Current |
|
| Output range/channel |
Range1: 0.5mA-100mA; Range2: 100mA-3A; Range3: 3A-6A |
| Accuracy |
± 0.05% of FS |
| CV cut-off current |
Range1: 0.2mA; Range2: 6mA; Range3: 12mA |
| Stability |
± 0.05% of FS |
| Power |
|
| Output power/channel |
30 W |
| Stability |
± 0.1% of FS |
| Time |
|
| Current response time |
Max rising time:1ms (10%FS~90%FS) |
| Working step time |
≤(365*24)h/step Time format-00: 00: 00.000(h、m、s、ms) |
| Data record |
|
| Data record conditions |
Min data recordinterval:100ms
Min voltage change: 10mV
Min current change: 0.2mA; 6mA; 12mA
|
| Frequency |
10Hz |
| Charge |
|
| Charge modes |
CC, CV, CCCV, CP |
| Cut-off condition |
Voltage, Current, Time, Capacity, -△V |
| Discharge |
|
| Discharge modes |
CC, CP, CR, CV |
| Cut-off condition |
Voltage, Current, Time, Capacity |
| Pulse |
|
| Charge |
CC, CP |
| Discharge |
CC, CP |
| Min pulse width |
500ms |
| Pulse counts |
Up to 32 |
| Chg and Dischg switch |
Supported |
| Cut-off condition |
Voltage, Time |
| DCIR |
Supported |
| Cycle |
|
| Max cycles |
65535 |
| Max steps |
254 |
| Cycle nest |
3 |
| Protection |
|
| Safety protection |
● Power-off data protection
● Off-line operation mode
● User-defined protection conditions, such as upper and lower limited current/voltage,
delay time, temperature, etc
|
| Channels feature |
Independent pairs of closed loop for constant |
| Channels control mode |
Independent control |
| Data acquisition method |
Kelvin connection |
| Noise |
<85dB |
| Database |
MySQL |
| Communicatin |
TCP/IP |
| Operating system |
Windows 7/8/10 64 bit |
| Data export |
EXCEL, TXT, CSV, PDF, Plot/Graph |
| Disk drive |
500GB |
| Communication port |
Ethernet port |
| Leak Current |
<5μA |
| Channels per unit |
8 |
| Operation and storage environment requirement |
|
| Items |
Values |
| Operation environment temperature |
0℃~40℃ (When the temperature is 25±10℃, the accuracy error
caused by temperature change is less than 50ppm /℃)
|
| Storage environment temperature |
-10℃~50℃ |
| Operation environment humidity |
≤70% RH(no moisture condensation) |
| Storage environment humidity |
≤80% RH(no moisture |
