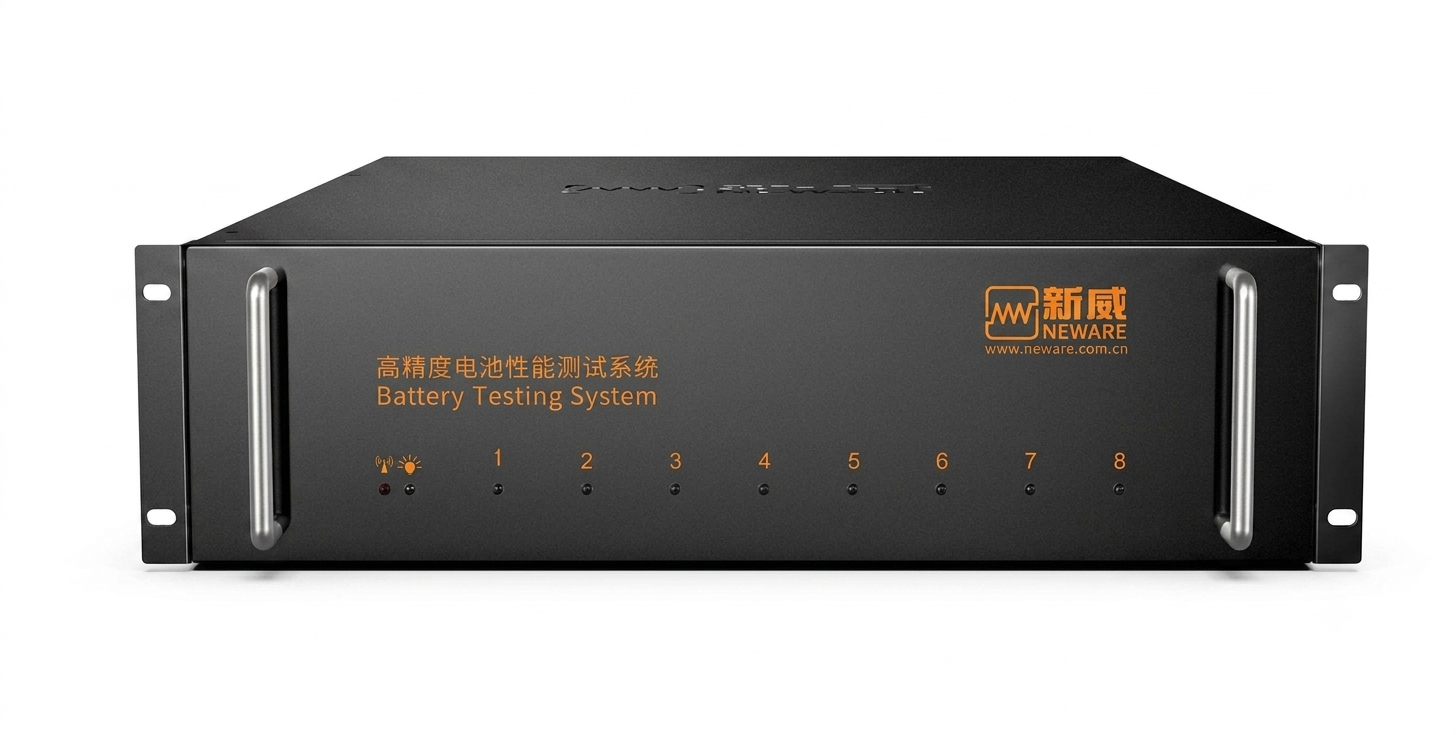

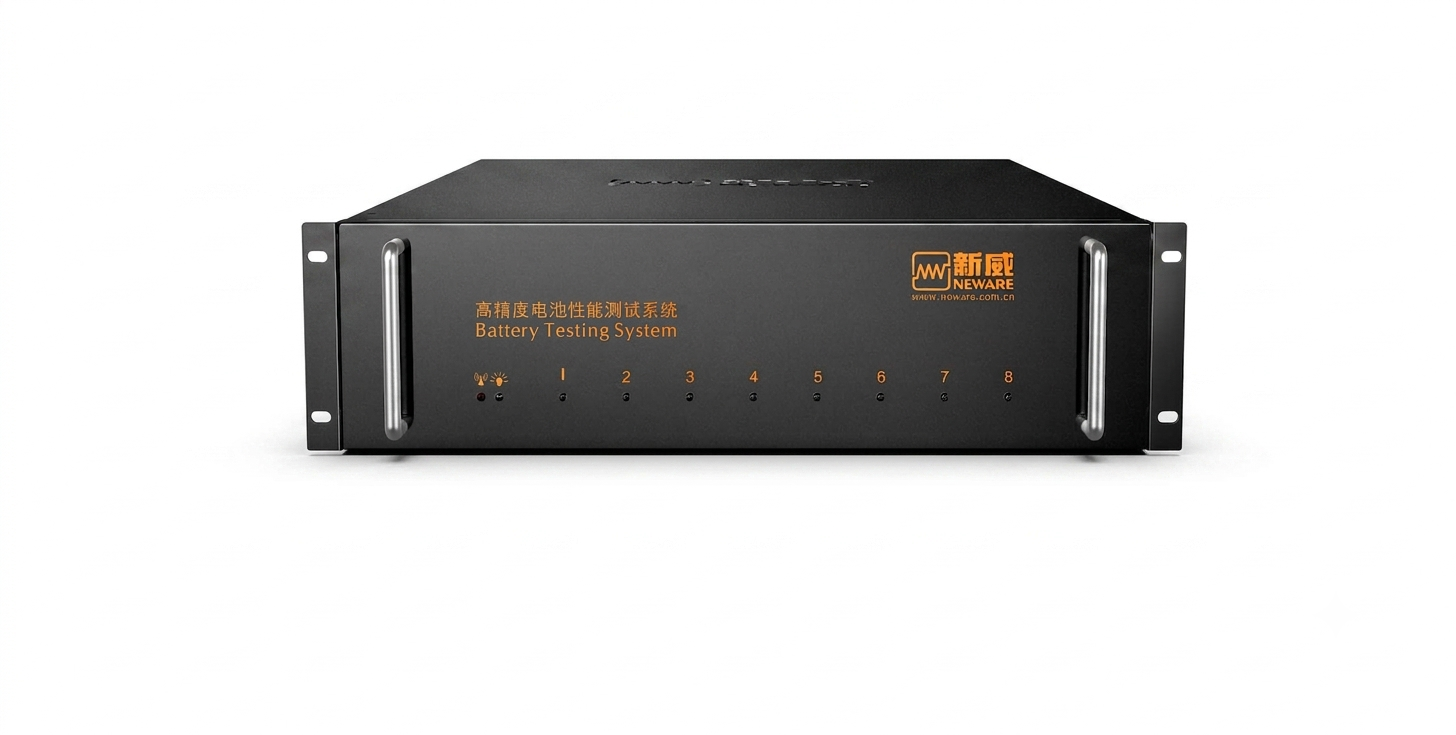

Neware (CT9008-5V5A-T) 8-Channel Battery Testing System
It is an 8-channel testing unit that lets you charge, discharge and measure cells with high precision. Many labs struggle with slow, inaccurate testers that force them to repeat tests and waste time. This machine removes that bottleneck, giving you the confidence to move products to market faster.
CT9008-5V5A is mainly used for battery material and 3C battery research, high-precision testing, rate charge and discharge testing, DCIR internal resistance testing, cycle life testing, and can realize single-step setting of recording conditions and protection conditions.
Every side is a highlight

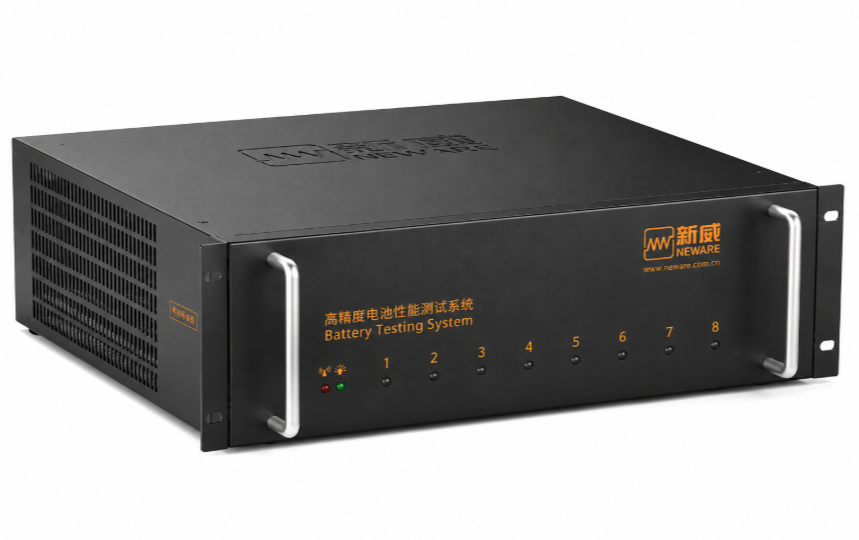

The standalone CT-9008 features an all-black sheet metal paint design with a subtle matte texture that shimmers under light, showcasing the high-end manufacturing process of modern industrial products.
Change begins in the heart.
With an 8-channel design, 0.02% accuracy, 1000Hz data recording, four ranges, and support for core technologies such as GSM and CDMA, it represents a significant improvement.
Key Features
- Eight independent channels, each with 0.7 V-5 V discharge range.
- Four current ranges from 0.1 A to 5 A with 0.02 % accuracy.
- Voltage accuracy 0.02 % of full scale, stability 0.01 %.
- Sampling rate 5 Hz, logging up to 1000 Hz for detailed traces.
- Multiple charge modes: CC / CC-CV / CV / CP / CP-CV / CR
- Discharge modes include pulse and CC-CV for stress testing.
- DCIR measurement step supports internal resistance checks.
- Power-failure data protection and user-defined safety limits.
- TCP/IP Ethernet communication and MySQL database integration.
Specifications
| Model |
CT9008-5V5A-T |
| Channels per unit |
8 |
| Input Power Supply |
AC 220V +10% / -20%, 50Hz |
| Input active power |
420W |
| Resolution |
AD: 16bit
DA: 16bit |
| Input Impedance |
≥ 1000MΩ (power-on state; leakage current when powered off: 100uA) |
| Channel Features |
wide dynamic range, high-speed sampling, high precision |
| Voltage range per channel |
Charge: 0~+5V,
Discharge: 0.7V~5V |
| Minimum discharge voltage |
0.7V |
| Voltage Accuracy |
± 0.02% of FS |
| Voltage Stability |
±0.01% of FS |
| Current range per channel |
Range1: 0.1uA-150uA
Range2: 150uA-5mA
Range3: 5mA-150mA
Range4: 150mA-5000mA
|
| Current Accuracy |
± 0.02% of FS
Range1: ±30nA
Range2: ±1uA
Range3: ±30uA
Range4: ±1mA
|
| Current Stability |
±0.01% of FS |
| Single-channel output power |
25W |
| Power Stability |
± 0.02% of FS |
| Current response time |
≤100μS (10% to 90% or 90% to 10%) |
| Step time range |
≥10ms |
| Temperature Type |
T thermocouple |
| Test range |
-40 ~ +110℃ |
| Measurement accuracy |
±1℃ |
| Sampling rate |
5Hz |
| Logging conditions |
Time△t: (0.001S~300S)
Voltage△U: ≥1mV
Current△I: ≥100nA |
| Logging frequency |
1000Hz |
| Charging mode |
CC / CC-CV / CV / CP / CP-CV / CR |
| Charging cut-off condition |
Voltage, current, relative time, capacity, energy, power |
| Discharging modes |
CC / CP / CR / Pulse discharging / CC-CV |
| Discharging cut-off condition |
Voltage, current, relative time, capacity |
| DCIR |
Supports DCIR measurement step |
| Max cycles |
1~65535 |
| Max steps |
255 |
| Cycle nesting |
Features nested cycle function, up to 4 levels of nesting supported |
| Software protection |
Power-failure data protection, Offline operation mode, User-defined protection conditions, such as upper and lower current/voltage, upper capacity limit protection, voltage fluctuation protection, current fluctuation protection |
| Voltage & Current Detection Sampling |
4-wire connection |
| Database |
MySQL |
| Communication |
TCP/IP (100M Ethernet) |
| Data export |
EXCEL2003, 2010, TXT |
| Communication port |
Ethernet port |
| Server Operating System |
Windows 10 |
| Barcode Scanning Function |
Supported by software; test data can be bound to barcodes via a barcode scanner (barcode scanner not included) |
| Operating temperature range |
25±5℃ (for guaranteed accuracy), 25±20℃ (extreme operating temperature) |
| Storage temperature range |
0~60℃ |
| Operating ambient relative humidity range |
≤70% RH (no condensation) |
| Storage ambient relative humidity range |
≤80% RH (no condensation) |
