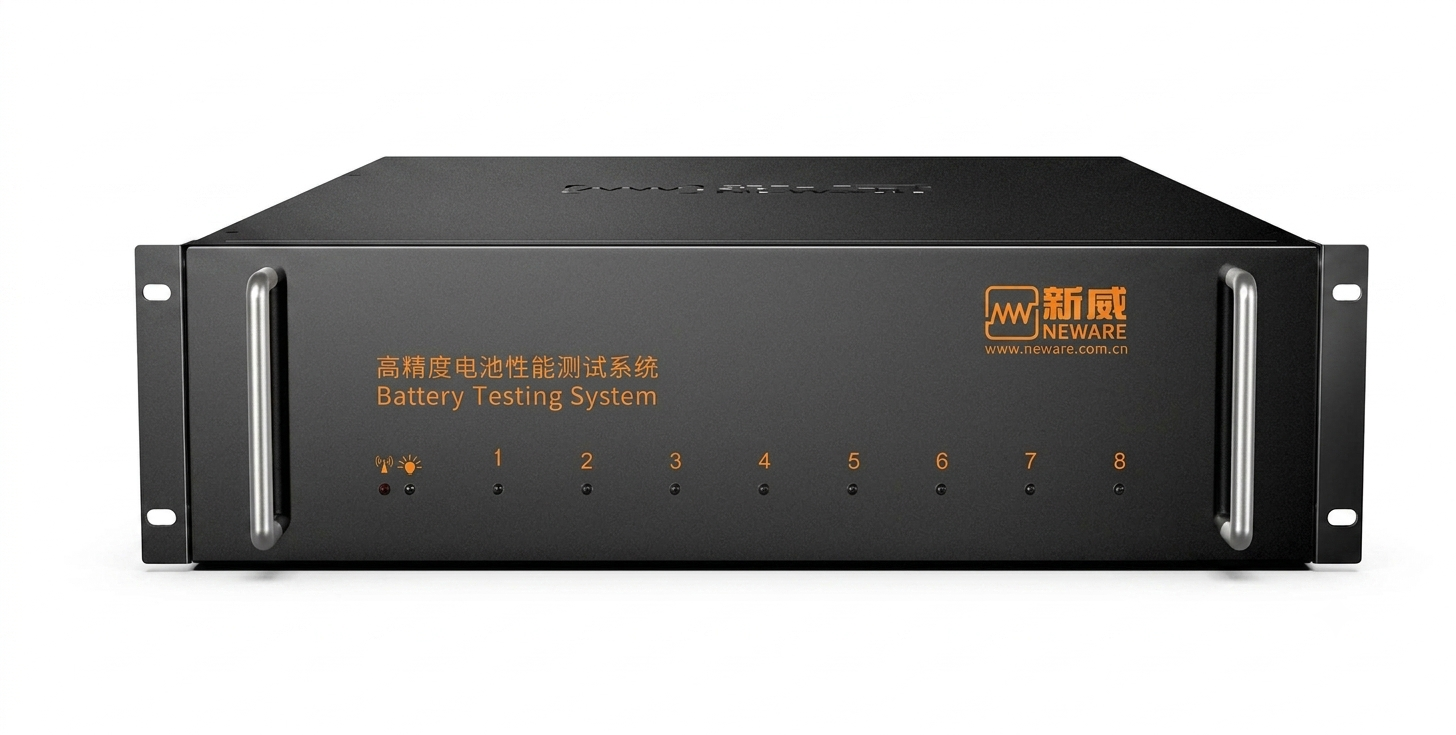

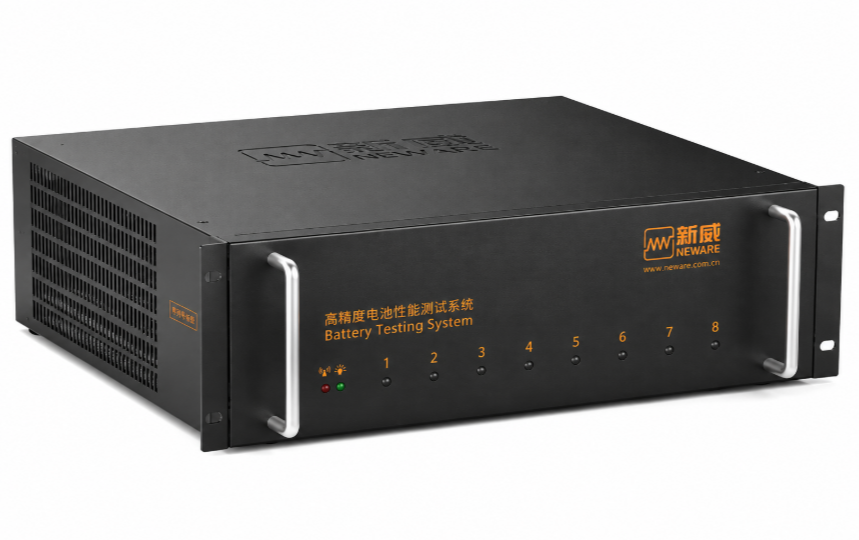

Name: Neware (CT9008-5V6.5A-T) 8-Channel Battery Testing System
SKU: INDM-120
Price: 12028.99 USD
Availability: InStock

Neware (CT9008-5V6.5A-T) 8-Channel Battery Testing System

In Stock

UK Free Shipping

Description
Documents
Reviews

If you are working with batteries, you know how important it is to test them properly. But testing batteries can be a real problem. You need to make sure that your batteries are working correctly and safely. This is where the Neware battery testing system comes in. It helps you to test your batteries quickly and easily. The Neware system is designed to solve the problem of battery testing. It gives you a clear solution to your battery testing needs. With the Neware system, you can test your batteries with confidence.

Neware (CT9008-5V6.5A-T) 8-Channel Battery Testing System with Neware

Are you tired of using old and outdated battery testing systems? Do you want a system that is easy to use and gives you accurate results? Look no further than the Neware (CT9008-5V6.5A-T) 8-Channel Battery Testing System. This system is designed to make battery testing easy and efficient. It is perfect for anyone who works with batteries, from researchers to manufacturers. With the Neware system, you can test your batteries quickly and easily. It is a powerful tool that will help you to get the job done.

Key Features

8-channel testing system, allowing you to test multiple batteries at once
Highly accurate test results, with a resolution ratio of 16bit
Fast sampling rate, with a sampling rate of 1Hz
Supports a wide range of test modes, including constant current, constant voltage, and constant power
Easy to use software, with a user-friendly interface and customizable test parameters
Highly reliable and durable, with a long lifespan and low maintenance requirements
Perfect for testing a wide range of batteries, from small batteries used in consumer products to large batteries used in industrial applications
Supports data logging and analysis, making it easy to track and understand your test results
Compatible with a wide range of operating systems, including Windows 10
Supports upper-computer communication, making it easy to integrate with other systems and devices

Note: This model supports temperature measurement.

Specifications

Unit Type	CT-9008-5V6.5A-T
Power Supply	AC 220V +10% / -20%, 50Hz
Interior Input Power	350W
Resolution Ratio	AD：16bit；DA：16bit
Input Impedance	≥1000MΩ (leakage current is 100μA during shutdown)
Channel Characteristics	Four-range, wide dynamic range, high-speed samplingandhighprecision
Voltage Range per Channel	Charging: 0~+5V; Discharge: +5V~0.6V
Minimum Discharge Voltage	0.6V
Voltage Accuracy	± 0.02% of FS
Voltage Stability	±0.005% of FS
Current Range per Channel	Range 1: 0.1μA—195μA Range 2: 195μA—6.5mA Range 3: 6.5mA—195mA Range 4: 195mA—6500 mA
Current Accuracy	± 0.02% of FS Range 1: ± 39nA Range 2: ± 1.3μA Range 3: ± 39μA Range 4: ± 1.3mA
Current Stability	±0.005% of FS
Single-Channel Output Power	32.5W
Power Stability	± 0.01% of FS
Temperature	Type T thermocouple
Temperature Test Range	-40 ~ + 110℃
Temperature Measurement Accuracy	± 1℃
Sampling Rate	1Hz
Data Logging Record Condition	Time △ t:> =1ms Voltage △ U:> =1mV Current △ I:> = 100nA
Record Frequency	1000Hz (continuous charge and discharge mode)
Charging Mode	Constant current charge / constant current constant voltagecharge/constant voltage charge /constant power charge /constant powerconstant voltage charge /constant resistance charge
Charge Cut-Off Condition	Voltage, current, relative time, capacity, energy, and power
Discharge Mode	Constant current discharge / constant power discharge /constantresistance discharge / constant current constant voltage discharge;
Discharge Cut-Off Condition	Voltage, current, relative time, and capacity
DCIR Test	Support for DCIR measurement steps
Cycle Measurement Range	1 to 65,535 times
Single Cycle Step Number	255
Loop Nesting	With a nesting cycle function, up to 4 layers of nesting support
Software Protection	Power loss data protectionWith the offline test functionSafety protection conditions can be set, parameters canbesetincluding: voltage limit / voltage limit / current limit / current limit/capacity limit protection / voltage fluctuation protection/currentfluctuation protection;
Voltage and Current Detection and Sampling	Four-line connection
Database	The MySQL database was used to manage the test data
Upper-Computer Communication Mode	Based on the TCP / IP protocol (100M Ethernet)
Data Output Mode	EXCEL2003, 2010, TXT
Number of Main Channels of Equipment	8
Types of Fixtures	Universal clamp (polymer clamp)
Server Operating System	Windows 10
Scan Code Function	The software can implement, configure scanning gun sc
Operating Temperature Range	25 ± 5℃ (accuracy guarantee), 25 ± 20℃ (limit use temperature)
Storage Temperature Range	0~60℃
Relative Humidity Range of Working Environment	70% RH (no moisture condensation)
Storage Environment Relative Humidity Range	80% RH (no moisture condensation)
