In busy stores or warehouses, workers often waste time searching for a scanner that can fit in a pocket and still read every barcode quickly. When the device is bulky or unreliable, errors increase and lines grow longer. The Newland BS80 Piranha II solves that by offering a tiny, lightweight scanner that reads all common 1D codes and works wired or wirelessly, so you can keep your workflow smooth.

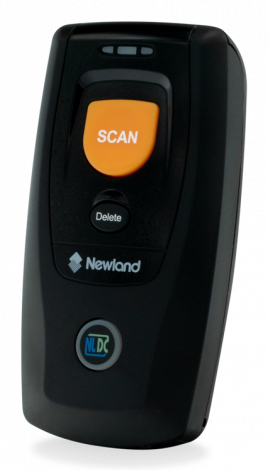

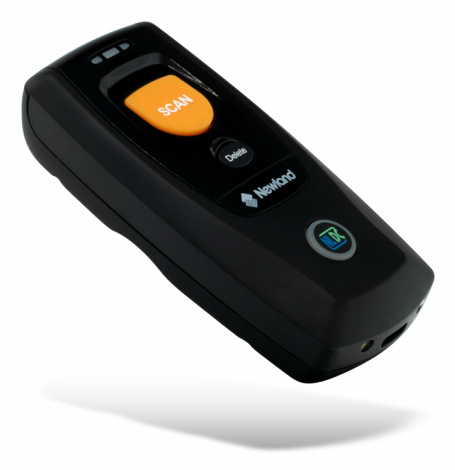

Newland BS80 Piranha II 1D Linear Wired & Wireless Handheld Barcode Scanner with Newland
Meet the scanner that fits in your hand and your pocket. The Newland BS80 Piranha II 1D Linear Wired & Wireless Handheld Barcode Scanner is built for fast, accurate capture of every standard 1D barcode. Retail clerks, inventory staff and mobile workers all need a device that never misses a code, even on screens. This scanner gives you that reliability, whether you connect it by USB or pair it with Bluetooth to a phone or tablet.
Key Features
- Supports all major 1D symbologies including Code 128, EAN-13 and UPC.
- Bluetooth Low Energy (BLE) for quick pairing with Android, iOS and Windows.
- USB-C port for charging and wired data transfer.
- Drop proof up to 1.2 m and IP42 protection against dust.
- Battery life up to 6.5 hours on a 900 mAh Li-Ion cell.
- LED indicators give clear status feedback.
- Optional two-bay cradle allows charging of up to ten scanners together.
- Vibration function alerts you when a scan is successful.
- CE, FCC, RoHS certified for safe global use.
Specifications
| Scanning |
| Pitch reading angle |
-60 - 60° |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Linear (1D) barcodes supported |
Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128),
ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
|
| Sensor type |
Linear |
| Scanner type |
1D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
50 m |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Certification |
IEC 62471, IEC60825 |
| Vibration function |
Yes |
| Internal memory |
1 MB |
| Built-in display |
No |
| LED indicators |
Notification |
| Protection features |
Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
| Power consumption |
25 mA |
| Battery life |
6.5 h |
| Battery voltage |
3.7 V |
| Battery capacity |
900 mAh |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
67 g |
| Height |
24.5 mm |
| Depth |
88 mm |
| Width |
46 mm |
| Operational conditions |
| Drop resistance |
1.2 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
900 mAh |
| Rechargeable battery |
Yes |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Telecom Engineering Center (TELEC) |
| Doesn't contain |
Cadmium, Lead, Mercury |
| Warranty period |
3 year(s) |
| Other features |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
