Many businesses lose time when barcode scanners miss codes or work slowly. When a scanner cannot read a label, workers must re-scan or type data by hand, which slows the line and frustrates staff. This problem hurts productivity and can cause errors in orders or tickets. The Newland FM430 Barracuda fixes this by using a high-resolution camera and smart sensors that read almost any 1D or 2D barcode fast, even in dim light.

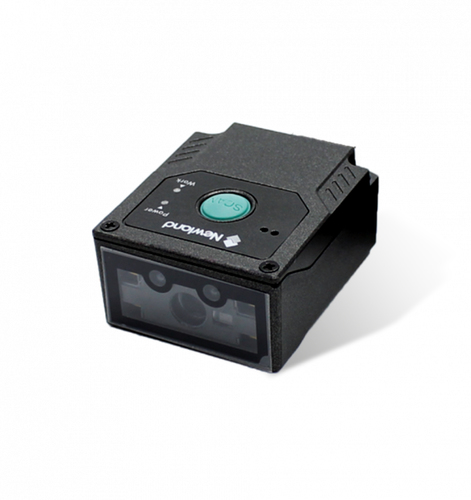

Newland FM430 Barracuda NLS-FM430-U 1D/2D 1280x800 pixels Fixed Barcode Scanner with Newland

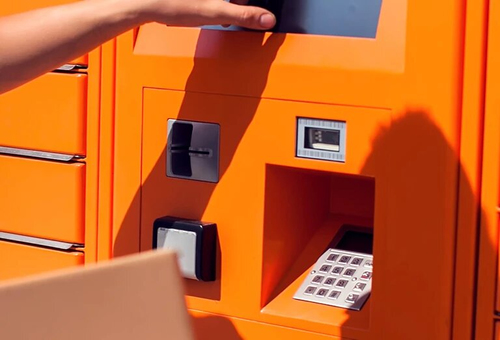

Imagine a scanner that never asks you to adjust the angle or press harder. The FM430 Barracuda is a fixed-mount reader that captures barcodes the moment they appear. It is built for retail counters, kiosks, and delivery stations where speed matters. If you have struggled with missed reads or slow hand-held devices, this scanner removes that pain and keeps the line moving.
Key Features
- 1280 x 800 pixel CMOS sensor for clear image capture.
- Supports all major 1D and 2D codes, including QR, Data Matrix, and UPC.
- 360 yaw and 55 pitch/tilt range for flexible mounting.
- 2 m USB cable simplifies installation.
- Automatic brightness adjustment for screen-based barcodes.
- Optional red cross laser aimer for precise targeting.
- Drop-proof and ESD protected housing for rugged use.
- Power consumption of 276.8 mA from standard 5 V USB.
- Lightweight design at 75 g, easy to mount in tight spaces.
Specifications
| Scanning |
| Yaw reading angle |
0 - 360° |
| Pitch reading angle |
-55 - 55° |
| Tilt reading angle |
-55 - 55° |
| Read rate (max) |
60 reads/s |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, ITF-6,
Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
|
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Fixed bar code reader |
| Ports & interfaces |
| Cable length |
2 m |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
| Certification |
FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC |
| Processor frequency |
1000 MHz |
| Built-in processor |
Yes |
| Print contrast |
25% |
| Buzzer |
Yes |
| Protection features |
Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code |
IP54 |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Product colour |
Black |
| Power |
| Power consumption |
276.8 mA |
| AC adapter output voltage |
100 - 240 V |
| Input frequency |
50 - 60 Hz |
| Input voltage |
5 V |
| Power source type |
USB |
| Weight & dimensions |
| Weight |
75 g |
| Height |
24.3 mm |
| Depth |
49.5 mm |
| Width |
41.5 mm |
| Packaging data |
| Cables included |
USB |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
