Tired of missed scans and slow checkout lines? The Newland HR22 Dorada II handheld scanner lets you capture every barcode in seconds, even if the code is damaged or tiny. It is built for busy stores, warehouses, and field workers who cannot afford delays. With fast Bluetooth 5.0 and a powerful CMOS sensor, you get reliable reads without the hassle of cords or frequent battery swaps.

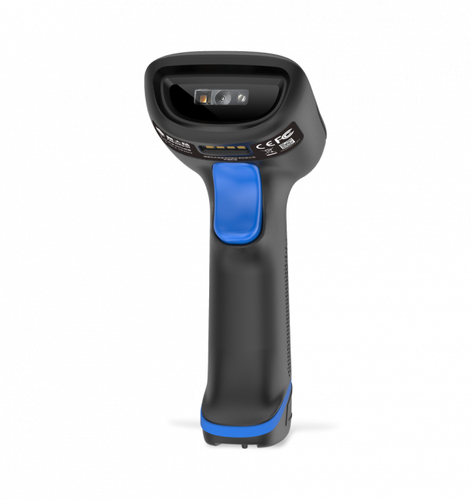

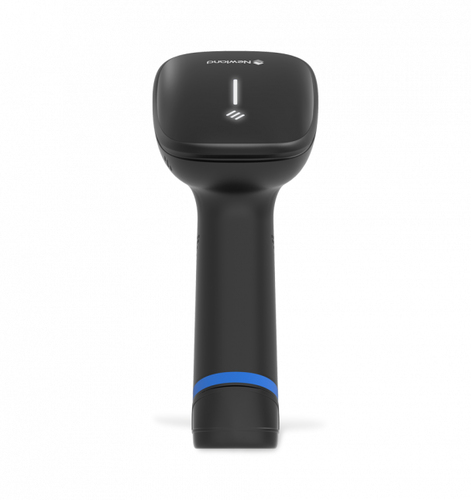

Newland HR22 Dorada II 2D CMOS 1D/2D 640x480 pixels Handheld Barcode Scanner
Many businesses lose time because ordinary scanners fail on high-density or worn barcodes. That loss adds up in slower orders and unhappy customers. The HR22 solves this by using Newlands latest decoding engine and a 640 x 480 pixel CMOS sensor that reads both 1D and 2D codes from any angle. The result is a smooth workflow, fewer read errors, and higher productivity for every employee.
.
Key Features
- CMOS sensor with 640 x 480 pixel resolution.
- Supports 1D barcodes such as Code 128, EAN-13, UPC-A.
- Supports 2D codes including QR, Data Matrix, PDF417, Aztec.
- IP52 rating and 1.5 m drop resistance for tough environments.
- Bluetooth 5.0 with up to 100 m wireless range.
- Removable 2600 mAh Li-Ion battery with 6-hour charge time.
- Weight of only 209 g for comfortable handheld use.
- Quick start guide included for instant deployment.
Specifications
| Scanning |
| Pitch reading angle |
-60 - 60° |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, Codabar, Code 11, Code 128, Code 39, EAN-13, EAN-8, GS1 Databar RSS14, ISBN,
ISSN, ITF-14, ITF-6, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, UPC-A, UPC-E
|
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Bluetooth version |
5.0 |
| Wireless range |
100 m |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
| Built-in processor |
Yes |
| Print contrast |
20% |
| Built-in display |
No |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Charging time |
6 h |
| Battery voltage |
5 V |
| Battery capacity |
2600 mAh |
| Number of batteries supported |
1 |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Base weight |
340.5 g |
| Weight |
209 g |
| Height |
144 mm |
| Depth |
67.5 mm |
| Width |
117.5 mm |
| Packaging data |

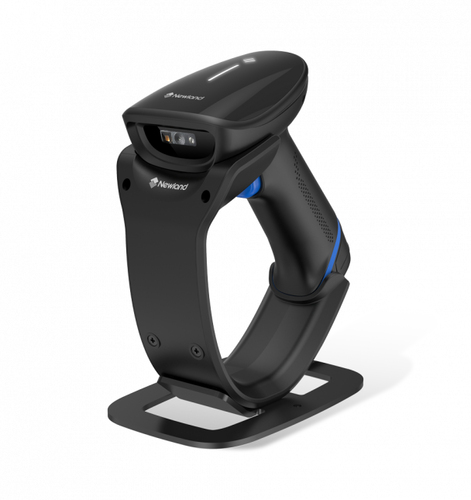

| Charging base |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2600 mAh |
| Technical details |
| Sustainability compliance |
Yes |
| Other features |
| Quick start guide |
Yes |
