Tired of missed scans and slow checkout lines? The Newland HR33 (NLS-HR3300-BT) Marlin 1D/2D 1280 x 800 pixels Barcode Scanner is built to end that frustration. It captures every barcode quickly, even the damaged ones, so you can keep your workflow moving. If you need reliable scanning in a busy store, warehouse, or office, this device gives you the speed and accuracy you have been looking for.

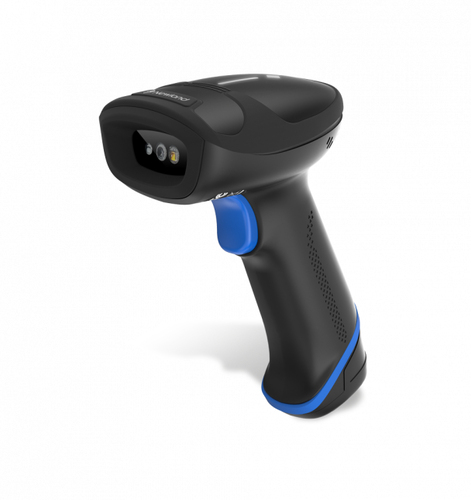

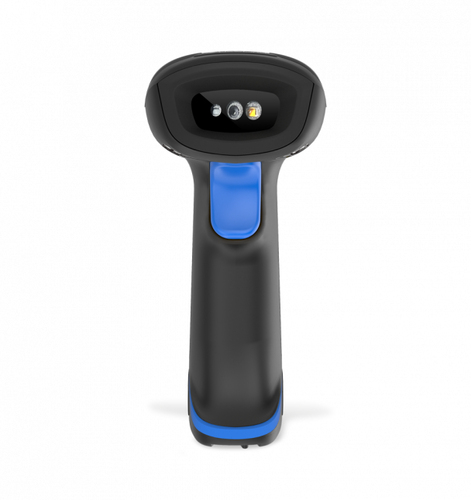

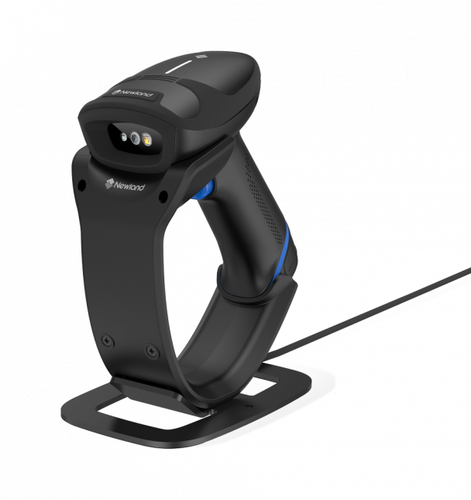

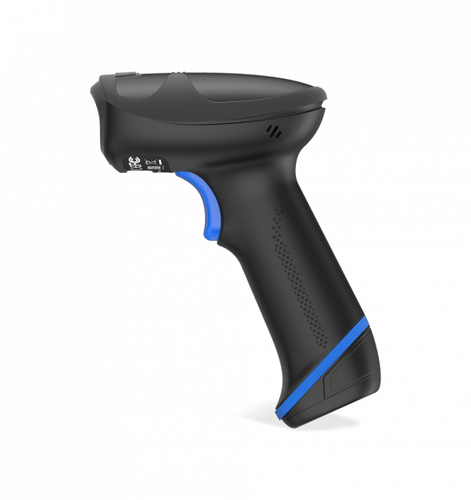

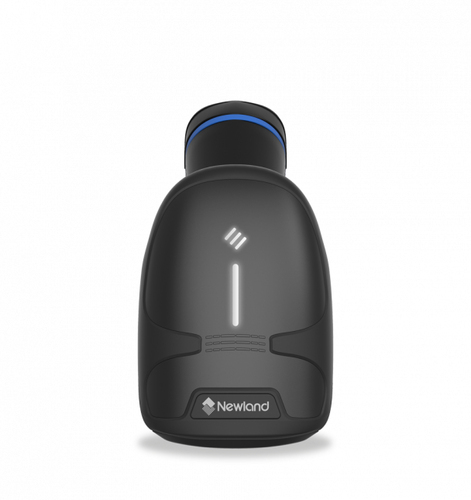

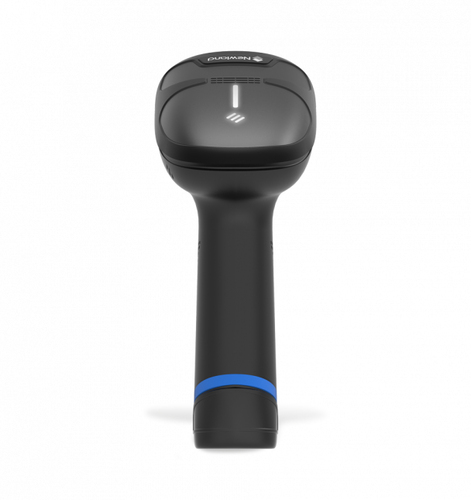

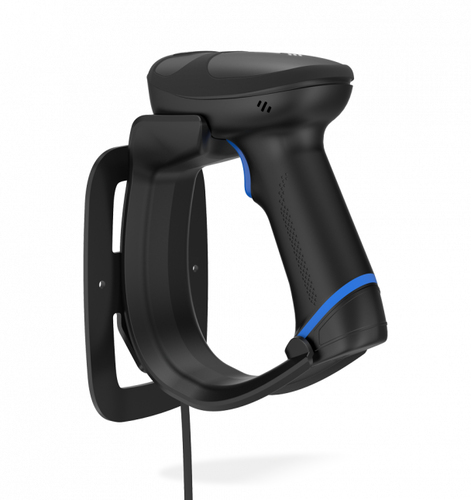

Newland HR33 (NLS-HR3300-BT) Marlin 1D/2D 1280 x 800 pixels Barcode Scanner
Many businesses lose time when scanners cannot read low-quality or angled codes. That loss adds up in labor cost and customer annoyance. The HR33 solves the problem by using a high-resolution 1280 x 800 sensor and a laser guide that reads from a wide angle. With Bluetooth 5.0 you get a stable link up to 100 m, so you can work without cables and keep the line moving.
Key Features
- 1280 x 800 pixel CMOS sensor for clear image capture.
- Laser guide for precise aiming on any surface.
- Supports 1D and 2D codes including QR, Data Matrix, PDF417.
- Bluetooth 5.0 with up to 100 m wireless range.
- 12-hour continuous use on a single charge.
- Quick-release battery compartment for fast swaps.
- IP52 rating protects against dust and splashes.
- Drop resistance up to 1.5 m for tough handling.
- Configurable scripting for custom scan commands.
- LED and buzzer feedback for instant scan confirmation.
- USB 2.0 port for optional wired connection and charging.
- 5-year warranty shows confidence in durability.
Specifications
| Scanning |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Vertical field of view |
30° |
| Horizontal field of view |
48° |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Laser guide |
Yes |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Chinese Sensible Code, GM Code |
| Linear (1D) barcodes supported |
AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E, ISBT 128 |
| OCR types supported |
China Travel Permit OCR, Chinese ID Card, Passport OCR |
| Sensor type |
CMOS |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Bluetooth version |
5.0 |
| Wireless range |
100 m |
| USB 2.0 ports quantity |
1 |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
| Certification |
IEC62471, IEC60825 |
| Vibration function |
Yes |
| Print contrast |
15% |
| Buzzer |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Input voltage |
5 V |
| Charging time |
6 h |
| Battery life |
15 h |
| Battery capacity |
2600 mAh |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Presentation base weight |
340 g |
| Presentation base dimensions (WxDxH) |
140 x 144.5 x 90 mm |
| Weight |
210 g |
| Height |
144 mm |
| Depth |
87.5 mm |
| Width |
117.5 mm |
| Operational conditions |
| Drop resistance |
1.5 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2600 mAh |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
