MT90 Orca III
Mobile Computers
The MT90 Orca III Mobile Computer is designed with an optimal form factor for a full touchscreen mobile computer with barcode scanner. Its consumer-style design and Android operating system makes the experience similar to picking up a personal mobile phone. This makes for an intuitive use and a limited need for staff training.
From the moment you take it out of the box, the MT90 Orca III is easy to use.
The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 270g, it’s easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it by your side – ready to use – during all other activities.
Full touchscreen mobile computer.

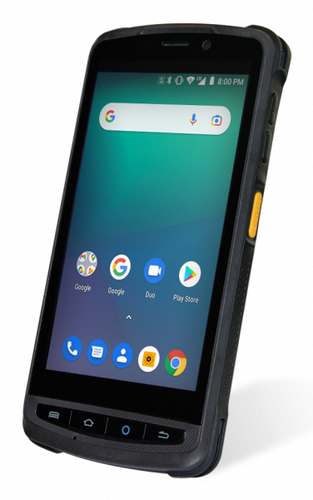

The MT90 Orca III is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca III is easy to set up and use right out of the box.
Megapixel barcode scanning.
Developed for quick and efficient barcode scanning, the MT90 Orca III ensures maximum productivity. Its megapixel scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.
Reliable all day use with a replaceable battery.
The MT90 Orca III has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.
Business-class durability.
The MT90 Orca III is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, or 1.8m with a rubber boot, ensuring longer and more reliable use.
GMS.
The MT90 Orca III offers Google Mobile Services (GMS) with integrated Google applications such as Gmail, Google Maps and Google Play Store.
Accessories that match your operations.

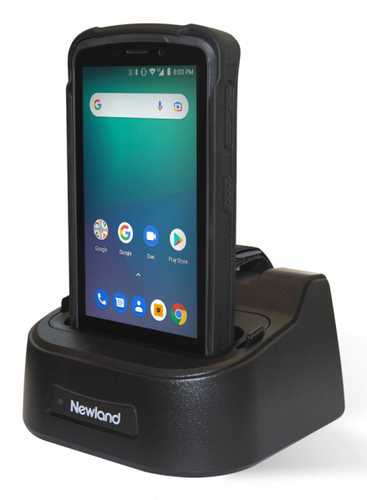

A wide range of accessories for the MT90 Orca III are included in the package, namely: single slot charging & communication (USB) cradle, rubber boot, hand strap and wrist lanyard. Pistol grip, UHF pistol grip, long-range pistol grip and holsters are optional.
Specifications
| Display |
| Touchscreen |
Yes |
| Touchscreen type |
Capacitive |
| Display resolution |
1280 x 720 pixels |
| Display diagonal |
12.7 cm (5") |
| Memory |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Flash memory |
64 GB |
| Internal memory |
4 GB |
| Processor |
| Number of cores |
8 |
| Processor frequency |
2 GHz |
| Network |
| Near Field Communication (NFC) |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data network |
2G, 3G, 4G |
| Internal modem |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| GPS Performance |
| GLONASS |
Yes |
| Assisted GPS (A-GPS) |
Yes |
| GPS (satellite) |
Yes |
| Camera |
| Auto focus |
Yes |
| Built-in flash |
Yes |
| Sensor type |
CMOS |
| Rear camera resolution (numeric) |
8 MP |
| Built-in camera |
Yes |
| Audio |
| Speakers |
Yes |
| Built-in microphone |
Yes |
| Ports & interfaces |
| Headphone connectivity |
3.5 mm |
| Performance |
| Certification |
CE RED, FCCID, RoHS, IEC6247 |
| Drop proof |
Yes, 1.5 cm |
| Drop proof |
Yes, 1.5 cm |
| International Protection (IP) code |
IP65 |
| LED indicators |
Yes |
| Vibrating alert |
Yes |
| 2D (matrix & stacked) barcodes supported |
Code 39, Data Matrix, PDF417, QR Code |
| Scanner type |
1D/2D |
| Barcode reader |
Yes |
| RFID reader |
Yes |
| Product colour |
Black |
| Software |
| Bundled software |
Ndevor, SOTI, Airwatch |
| Operating system installed |
Android |
| Power |
| AC adapter output current |
2 A |
| AC adapter output voltage |
5 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Battery recharge time (off) |
5 h |
| Battery life (max) |
10 h |
| Battery voltage |
3.8 V |
| Battery capacity |
4500 mAh |
| Weight & dimensions |
| Height |
20 mm |
| Depth |
155 mm |
| Width |
78 mm |
| Weight |
270 g |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-20 - 55 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
| Keypad number of keys |
10 |
| Electrostatic Discharge (ESD) protection (air) |
15 kV |
| Electrostatic Discharge (ESD) protection (contact) |
8 kV |
| Battery |
| Battery capacity |
4500 mAh |
