Dispatch Time: Next Working Day
Product Code: SCNR-127
MPN #: WD4-BS20-SR

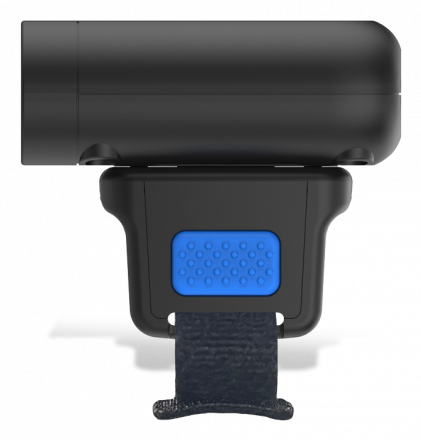

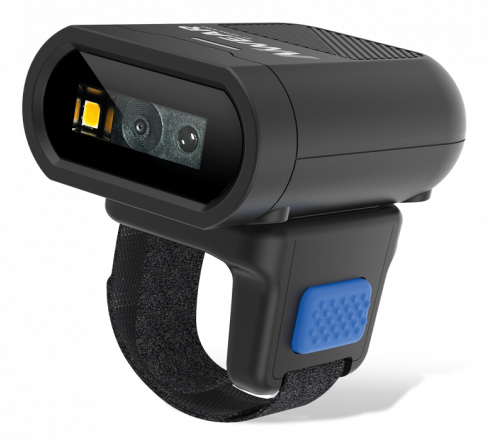

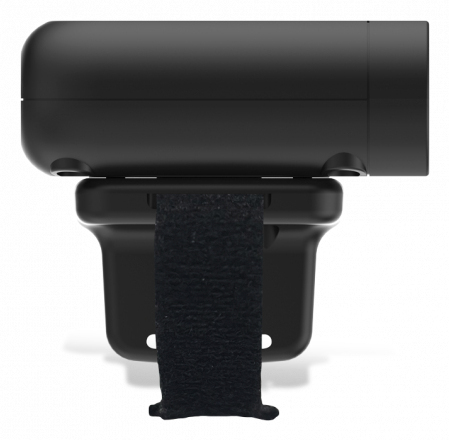

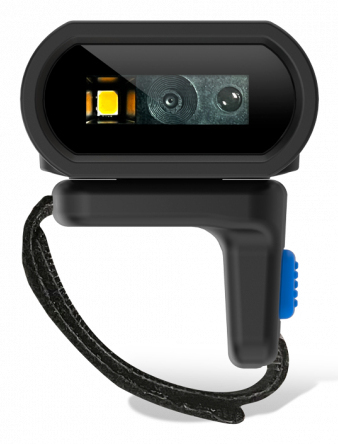

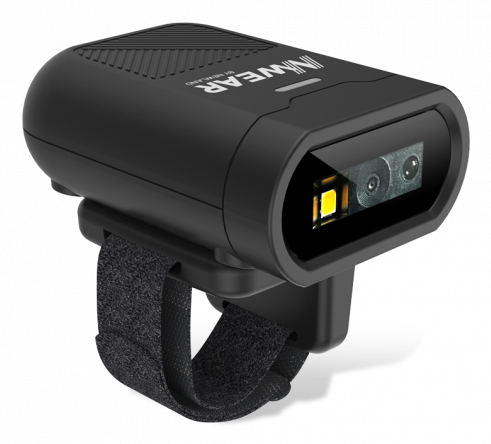

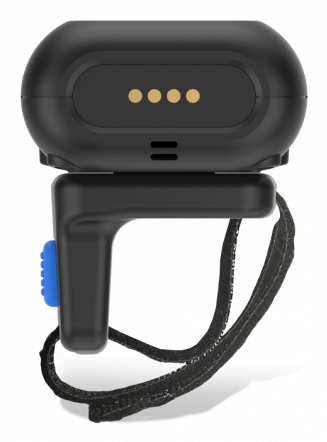

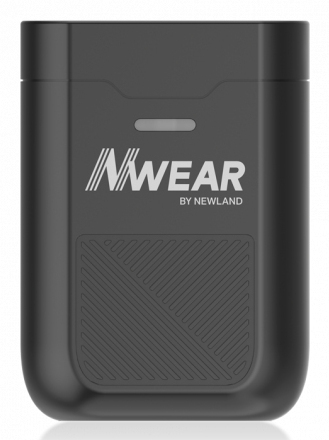

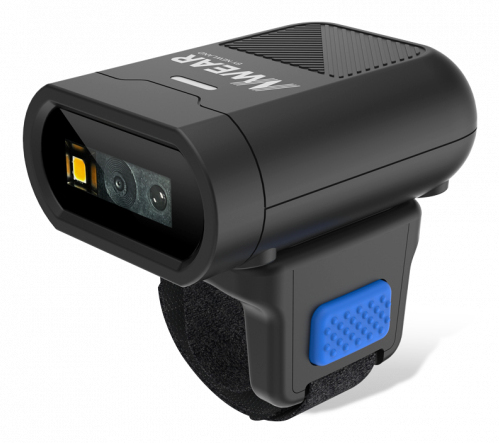

Tired of juggling a scanner and a box at the same time? The Newland WD4 Ring Scanner lets you scan while you move, so you never have to stop to put a device away. It fits on your finger like a ring, giving you hands-free, fast scanning for every 1D and 2D barcode. If you spend a shift lifting, sorting, or delivering items, this scanner removes the pause that slows you down.
Workers often lose time because a traditional handheld scanner must be held, stored, and re-grabbed for each scan. That interruption adds up and creates fatigue. The WD4 solves this by staying securely on your finger, letting you scan with a light press of your thumb while your other hand carries boxes or tools. Bluetooth 5.0 gives reliable, fast connection to phones, tablets, or PCs, so you keep moving without wires or delays.
| Scanning | |
| Pitch reading angle | -60 - 60° |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Trigger mode | Manual |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 25, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 25, UPC-A, UPC-E |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Type | Wearable bar code reader |
| Ports & interfaces | |
| Bluetooth version | 5.0 |
| Wireless range | 40 m |
| Standard interfaces | Bluetooth |
| Connectivity technology | Wireless |
| Performance | |
| Certification | CE, RoHS |
| Print contrast | 20% |
| Buzzer | Yes |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Charging time | 2 h |
| Battery life | 8 h |
| Battery voltage | 4.35 V |
| Battery capacity | 670 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source type | Battery |
| Weight & dimensions | |
| Weight | 48 g |
| Height | 44.2 mm |
| Depth | 38 mm |
| Width | 52.5 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Battery | |
| Battery capacity | 670 mAh |
