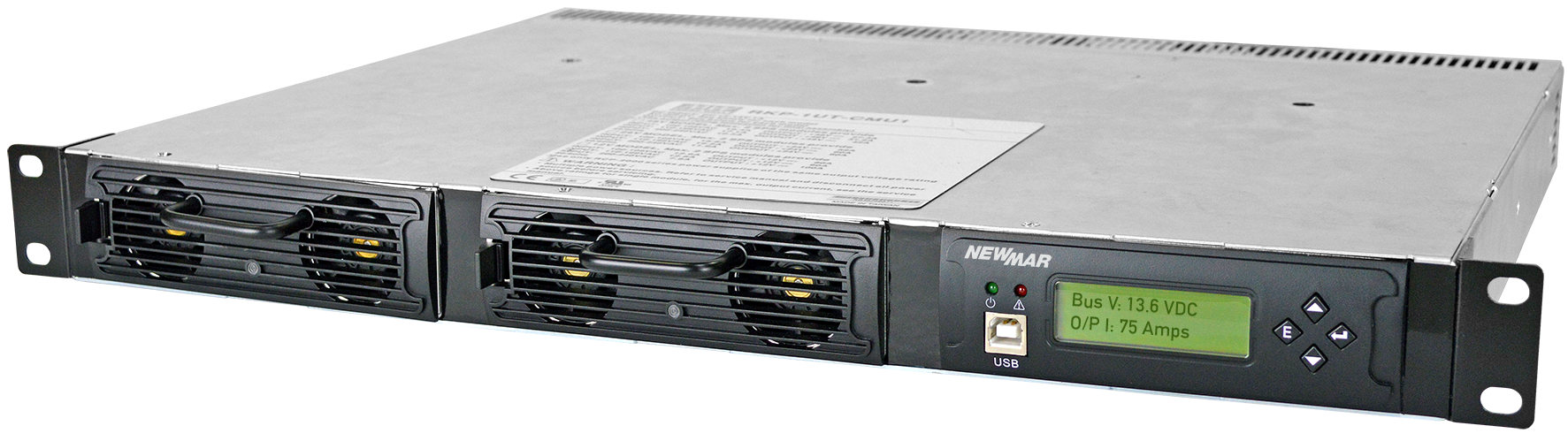

Newmar Scout 12V DC, 95-200A, 1140-2400W, N+1 Redundant DC Power System
The Scout is a compact, high power density 12 volt rackmount power system that brings telecom power technology to 12 volt base station radio applications to power transmitters and maintain back-up batteries. Its dual 100 amp hot swap rectifi ers confi gured in N+1 redundancy provides fault tolerant reliability. Remote monitoring capability provides system administrators with operating status.
Features
- Redundant hot swap rectifiers provide high system reliability
- Powers transmitters and maintains back-up batteries
- 100 amp output per module - 200 amp system capacity (230V AC input)
- Controller module provides Web based remote monitoring and alarms, and digital LCD display
of DC volts and amps
- Compact 1U rackmount shelf
- Optional: LVD, power distribution shelf, and expansion shelf
- Four programmable Form C alarm relay contacts
- Abnormal conditon event log: over voltage protection, overload protection, output short circuit protection, over-temperature protection, internal over-temperature alarm, low AC power shutdown, and fan malfunction protection
Specifications
| Input |
|
| Voltage |
90 - 264 VAC, 50 - 60 hz. via IEC socket (x2) |
| Current (per module) |
13 amps @ 115 VAC, 7 amps @ 230 VAC |
| Output |
|
| Voltage |
13.6 VDC, adjustable 10.5 - 14.0 VDC |
| Power (per module) |
1200 watts, 100 amps @ 230 VAC input
1140 watts, 95 amps @ 115 VAC input |
| Protection |
Short circuit, overvoltage, current limit, over-temperature |
| Monitors |
- LCD Digital Display: DC volt and current
- Remote via Ethernet (web page)
- DC ok via TTL
- AC fail
- Over-temp
- Fan fail
|
| Operating temperature |
-40 to + 70˚ C |
| Mechanical |
|
| 19" rackmount |
flush, 1RU, 13.75" depth |
