Nexcom CE-RL-01 I7, Intel Core i7-1370PE, 16GB/256GB Marine Fanless PC

Nexcom CE-RL-01 I7, Intel Core i7-1370PE, 16GB/256GB Marine Fanless PC

Nexcom CE-RL-01 I7 is a marine fanless PC designed for computing, monitoring, control, and data processing in marine and industrial environments. It uses a 13th Gen Intel® Core™ i7-1370PE processor and supports DDR5 memory up to 64GB. The fanless aluminum/metal chassis helps provide reliable operation without relying on an internal cooling fan.

The system supports 2 x DDR5 memory slots with non-ECC and un-buffered memory and provides two M.2 storage connections supporting SATA and NVMe devices. Its display capability supports up to four multiple displays in Windows, with resolution up to 4096x2160@60Hz. These capabilities make the PC suitable for applications that require multiple screens and responsive data handling.

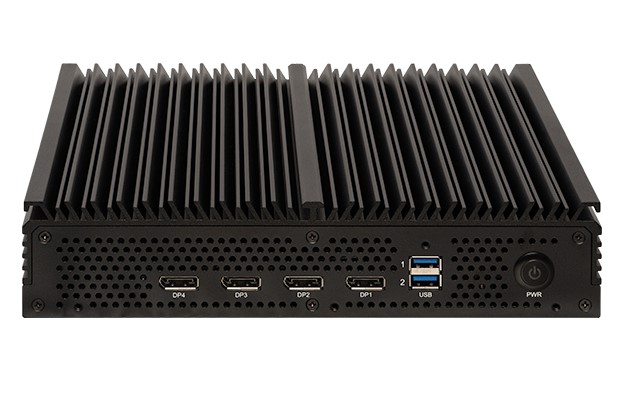

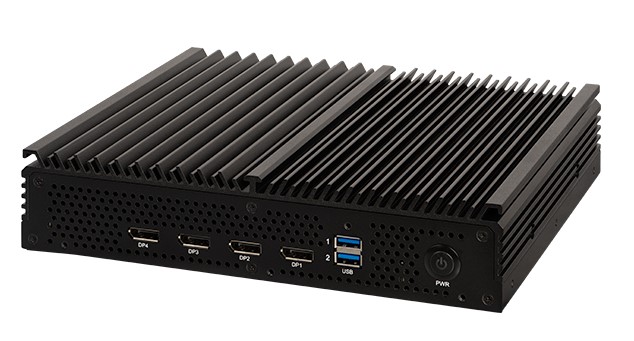

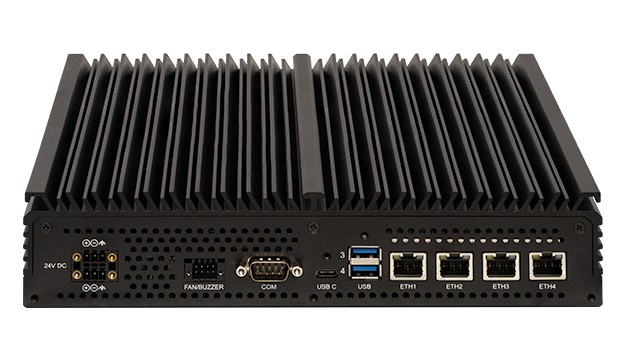

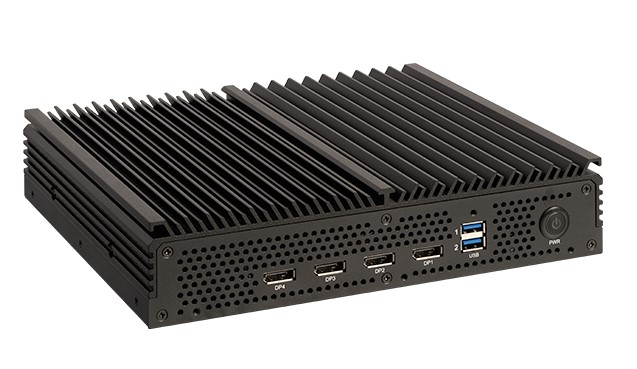

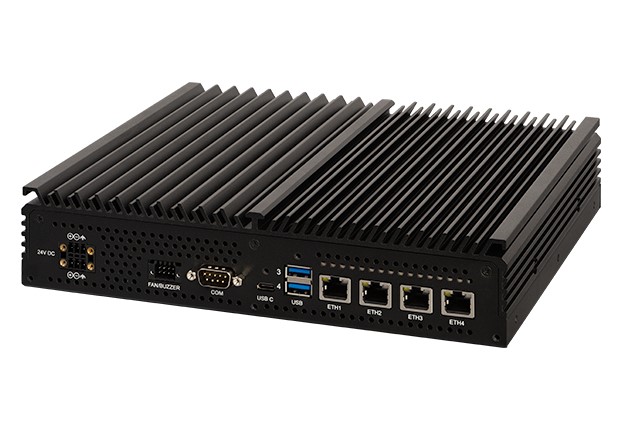

The front I/O includes four DisplayPort DP++ connections and two USB 3.2 Type-A ports with 10Gbps transfer speeds. The rear panel adds USB 3.2 Type-C and Type-A ports, an isolated RS-232/422/485 COM port, and four 2.5GbE RJ45 ports with wake up on LAN support. This connectivity supports marine monitoring, control systems, network communication, and other equipment integration needs.

The Nexcom CE-RL-01 I7 uses a 24V DC power input and supports 18V~31V DC input with dual power redundancy and low-power monitor detection. It supports AT/ATX power modes with ATX as the default mode. The system also provides a dual power input connector, helping support applications where power continuity is important.

With its fanless design, compact dimensions, and marine-oriented environmental specifications, this PC can be used in shipboard systems, marine control equipment, navigation-related computing, industrial monitoring, and other demanding environments. It operates from 0°C~55°C and supports 10%~95% non-condensing humidity, while its listed vibration and shock compliance supports deployment where equipment may experience movement and mechanical stress.

Key features

• 13th Gen Intel® Core™ i7-1370PE embedded processor

• 2 x DDR5 memory, up to 64GB Max

• 2 x M.2 2242 or 2280 supporting SATA and NVMe

• Up to 4 multiple displays with resolution up to 4096x2160@60Hz

• 4 x 2.5GbE RJ45 ports with wake up on LAN

• Dual power redundancy with 24V DC input

• Aluminum/Metal chassis with fanless design

• Windows 11 and Windows 10 support
