Nexcom PPC-156T-RL-i5, Intel Core i5-1340PE, 16GB/256GB Marine Panel PC
Nexcom PPC-156T-RL-i5, Intel Core i5-1340PE, 16GB/256GB Marine Panel PC is designed for marine and industrial applications that require reliable computing, clear visualization, and flexible connectivity in demanding environments. Powered by a 13th Gen Intel® Core™ Raptor Lake-P i5 Processor, this panel PC provides a capable platform for marine monitoring, control, automation, and onboard information systems.
The 15.6” 16:9 LCD panel delivers 1920 x 1080 resolution with 16.7M colors, a 1000:1 contrast ratio, and typical 850 cd/m2 backlight luminance. Its 88-degree viewing angles in all directions support clear viewing from different positions, while the 0.1%~100% dimming level provides adjustable screen brightness for different operating conditions.
The PCAP multi-touch screen supports 10-point recognition and features AR + AF coating with 88% light transmission. A front touch icon provides Power ON/OFF, dimming up, and dimming down functions. For external display applications, the Type C interface supports ALT mode with resolution up to 4096*2160 60Hz.
The Nexcom PPC-156T-RL-i5 provides a wide range of I/O options, including an isolated DB9 COM port supporting RS-232/422/485, USB 3.2 Type-C, two USB 3.2 Type-A ports, and four 2.5GbE RJ45 ports with wake up on LAN support. Storage is provided through two M2 slots supporting 2242 or 2280 SATA and NVMe devices, while two DDR5 memory slots support up to 64GB of non-ECC and un-buffered memory.
Built for integration into marine and industrial systems, the panel PC supports a 24VDC power input with reverse polarity protection and galvanic/electrical isolation. Hardware monitoring, watchdog functionality, TPM 2.0, and system temperature and voltage monitoring support dependable operation. With Flash mount Kit or VESA mount (75 x 75mm), the Nexcom PPC-156T-RL-i5 can be used for marine control stations, vessel monitoring, industrial automation, machine control, and other applications requiring an integrated touchscreen computing platform.
Key features
- 13th Gen Intel® Core™ Raptor Lake-P i5 Processor
- 15.6” 16:9 LCD panel with 1920 x 1080 resolution
- PCAP multi-touch screen with 10 Points recognition
- Typical 850 cd/m2 backlight luminance with 0.1%~100% dimming
- 2 x DDR5 slots supporting up to 64GB Max
- 2 x M2 slots supporting 2242 or 2280 SATA and NVMe
- 4 x 2.5GbE RJ45 ports with wake up on LAN
- 24VDC power input with reverse polarity and galvanic/electrical isolation
Specifications:
|
System
|
- The 13th Gen Intel® Core™ Raptor Lake – P i5 Proccesor
- Memory: 2 x DDR5, up to 64GB Max, non-ECC and un-buffered
- Storage: 2 x M2 support 2242 or 2280 (SATA and NVMe)
- Intel® Iris® Xe Graphics eligible
- Watchdog
- H/W Monitor: monitoring system temperature and voltage
- TPM 2.0
|
|
Panel
|
- 15.6”, 16:9 LCD Panel
- Resolution: 1920 x 1080, 16.7M Color
- LVDS Channel: 24Bit (8 x 3, RGB)
- Contrast Ratio: 1000:1
- Viewing Angle: 88(T), 88(B), 88(L), 88(R)
- Diming Level: 0.1%~100%
- Backlight luminance: typ. 850 cd/m2
- Operation Temperature: -30 to 80℃
|
|
Touch Screen
|
- PCAP, Multi-Touch type with 10 Points recognition
- Surface treatment: AR + AF Coating
- Light Transmission: 88%
- Touch interface: USB
|
|
Power Touch Button
|
|
|
Display Output
|
- Type C support ALT mode, resolution up to 4096*2160 60Hz
|
|

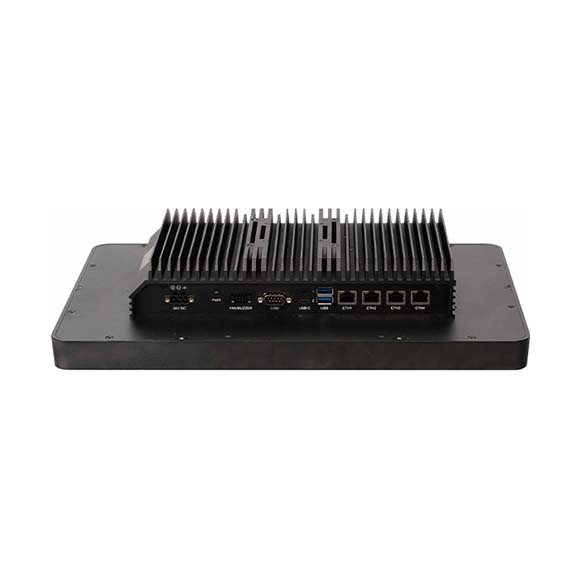

I/O Interface
|
- 1 x DC 24V power input connector with 3 pin terminal blocksr
- 1 x Fan/buzzer connector: 2x4 pin Phoenix terminal blocks
- 1 x COM Port (DB9), supports RS-232/422/485, isolated
- 1 x USB 3.2, 10Gbps, Type-C, supports ALT mode
- 2 x USB 3.2, 10Gbps, Type-A
- 4 x 2.5GbE RJ45 port, supports wake up on LAN
|
|
Cerifications
|
- EN 55032/35
- UKCA
- FCC/IC Class A
|
|
Power Requirements
|
- DC power input:
- Input voltage: 24VDC (+30% / -25% voltage variation)
- Reverse polarity protection
- Galvanic/ Electrical isolated
- Power consumption: 120W (max)
|
|
Dimensions
|
- 398.68 (L) x 257.68 (W) x 75 (H) mm
- Flash mount Kit or VESA mount (75 x 75mm)
|
|
Environment
|
- Operating temperature: 0°C to 55°C
- Storage temperature: -30°C to 75°C
- Operating humidity: 10%~95%, non-condensing
|
