Imagine a network that never slows down, even when hundreds of homes and businesses connect at the same time. The Nokia 7360 ISAM FX-16, 16 Slots 14 RU Fiber Optical Line Terminal is the engine that makes that possible. It is an optical line terminal built for carriers who need reliable, high-capacity fiber access. If your current equipment drops packets or cannot add new services, you are losing customers and revenue. This device solves those pain points with a modular design and redundant power, keeping your service up and your customers happy.

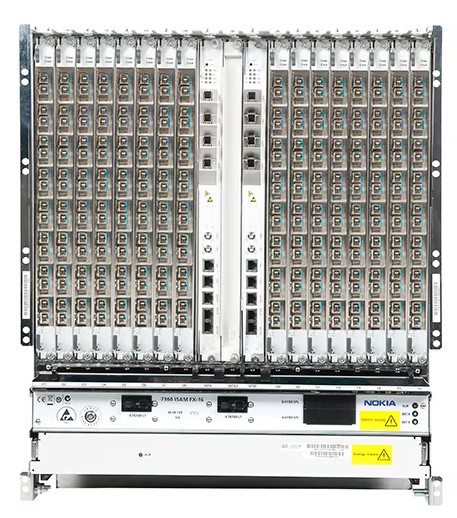

Nokia 7360 ISAM FX-16, 16 Slots 14 RU Fiber Optical Line Terminal
The main problem many operators face is limited bandwidth and single points of failure in their OLTs. When the network cant grow, you miss out on new broadband contracts and risk outages that damage your reputation. This Nokia terminal removes those limits. It offers high-density GPON, XGS-PON and other PON technologies, plus fully redundant power feeds, so the network stays alive even if one supply line fails. The result is a smooth, scalable platform that lets you add more users without replacing the whole rack.
Key Features
- Four line-termination slots for GPON, XGS-PON, Multi-PON and point-to-point cards.
- Two redundant network card slots for full power and data plane backup.
- 48/60 V DC nominal input with dual Branch A/B power feeding.
- 14 RU rack height, compatible with ETSI 600 300 mm racks.
- High-density switching matrix: 480 Gb/s (FANT-F) or 1.28 Tb/s (FANT-G) depending on module.
- Uplink capacity up to 360 Gb/s per slot for massive downstream traffic.
- Managed by Nokia 5520 AMS for easy provisioning over EPON (DPoE).
- Operating temperature range -40 C to +65 C and humidity 5 %-93 % non-condensing.
- Supports both SNMP/MIB legacy management and NETCONF/YANG SDN control.
- Enables network slicing for multiple service providers on a single platform.
Specifications
| General |
|
| Brand |
Nokia |
| Series |
7360 ISAM FX-16 |
| Product type |
Optical Line Terminal (OLT) |
| Shelf Type |
FX-16 |
| Shelf Configuration |
4 slots for line termination cards
2 slots for redundant network cards |
| Rack Height |
14 RU |
| Rack Compatibility |
can be used in ETSI-sized 600 x 300 mm racks |
| Dimensions (H × W × D) |
622.5mm × 497.4 mm × 280 mm |
| Power Input |
48/60 V DC nominal |
| Power Feeding |
Fully redundant power feeding (Branch A and B) |
| Fiber Access Technologies |
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point |
| LT Support |
Gigabit PON (GPON) line cards
10G Ethernet PON (EPON) line card with DPoE
Point-to-point fiber line cards
Universal NG-PON line cards |
| Supported Network Termination (NT) Cards |
|
| Nokia ISAM FANT-F |
480 Gb/s switching matrix (bidirectional)
Active/Active redundancy
160 Gb/s uplink capacity
Small Form Factor Pluggable SFP+ cages |
| Nokia ISAM FANT-G |
1.28 Tb/s switching matrix (bidirectional)
Active/Active redundancy in the data planeand Active/Standby in the control and management plane
360 Gb/s uplink capacity
C-Form Factor Pluggable (CFP4) |
| Management |
Fully managed by the Nokia 5520 AMSDOCSIS Provisioning over EPON (DPoE) |
| Operating conditions |
|
| Operating temperature |
-40°C to +65°C (-40°F to +149°F) |
| Relative humidity |
5% to 93% (non-condensing) |
| Full service platform |
|
| Services |
Residential, mobile and business applications converged on a single modular platform:
IPTV services
Multimedia service
High-speed Internet access
Business access
Cell-site backhaul |
| Flexibility in technologies |
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point.
Non-blocking, high-capacity backplane of 2 x 100 Gb/s per slot.
Supports both traditional management models (ISAM release for SNMP/MIB) and SDN programming (Lightspan release for NETCONF/YANG).
Supports network sharing and network slicing between multiple services and/or content providers. |
