Many service providers struggle with growing bandwidth demand and the need for a reliable backbone that can handle many customers at once. When the network cannot keep up, users see slow internet, dropped video streams, and frustrated business clients. The Nokia 7360 ISAM FX-4, 4 slots 5RU Fiber Optical Line Terminal (OLT) solves this by giving you a compact, high-capacity platform that supports many fiber technologies and offers built-in redundancy. It lets you expand services without costly replacements, keeping your network fast and dependable.

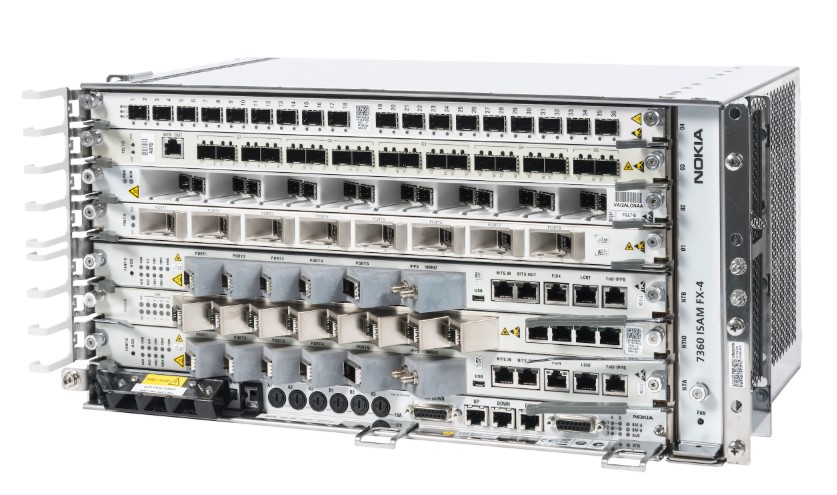

Nokia 7360 ISAM FX-4, 4 slots 5RU Fiber Optical Line Terminal (OLT) with Nokia
Imagine a single box that can power residential broadband, mobile backhaul, and business connections all at once. That is the Nokia 7360 ISAM FX-4 OLT. It is a modular line terminal that fits into a standard 19-inch rack and provides high-density GPON, XGS-PON, Multi-PON and point-to-point fiber access. Providers who need to add new services quickly or protect against power loss will find this device essential. Nokias reputation for sturdy hardware adds confidence that the network will stay up even in harsh environments.
Key Features
- 4 slots for line termination cards.
- 2 slots for redundant network cards.
- 5 RU rack height, 19-inch compatible.
- 48/60 V DC nominal power input.
- Fully redundant power feeding (Branch A and B).
- High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point.
- Gigabit PON, 10G EPON with DPoE, universal NG-PON line cards.
- 480 Gb/s (FANT-F) or 1.28 Tb/s (FANT-G) switching matrix options.
- Active/Active redundancy in data plane, active/standby in control plane.
- Managed by Nokia 5520 AMS with DOCSIS provisioning over EPON.
- Operating temperature -40 C to +65 C, humidity 5 % to 93 % non-condensing.
Specifications
| General |
|
| Brand |
Nokia |
| Series |
7360 ISAM FX-4 |
| Product type |
Optical Line Terminal (OLT) |
| Shelf Type |
FX-4 |
| Modular shelves |
4 slots for line termination cards
2 slots for redundant network cards |
| Rack Height |
5 RU |
| Rack Compatibility |
19 inch Rack |
| Dimensions (H × W × D) |
222 mm × 446.5 mm × 278.3 mm |
| Power Input |
48/60 V DC nominal |
| Power Feeding |
Fully redundant power feeding (Branch A and B) |
| Fiber Access Technologies |
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point. |
| LT Support |
Gigabit PON (GPON) line cards
10G Ethernet PON (EPON) line card with DPoE
Point-to-point fiber line cards
Universal NG-PON line cards |
| Network Termination (NT) support |
|
Nokia ISAM FANT-F
|
480 Gb/s switching matrix (bidirectional)
Active/Active redundancy
160 Gb/s uplink capacity
Small Form Factor Pluggable SFP+ cages |
Nokia ISAM FANT-G
|
1.28 Tb/s switching matrix (bidirectional)
Active/Active redundancy in the data planeand Active/Standby in the control and management plane
360 Gb/s uplink capacity
C-Form Factor Pluggable (CFP4) |
| Management |
Fully managed by the Nokia 5520 AMS
DOCSIS Provisioning over EPON (DPoE) |
| Operating conditions |
|
| Operating temperature |
-40°C to +65°C (-40°F to +149°F) |
| Relative humidity |
5% to 93% (non-condensing) |
| Full service platform |
|
| Services |
Residential, mobile and business applications converged on a single modular platform:
IPTV services
Multimedia service
High-speed Internet access
Business access
Cell-site backhaul |
Flexibility in technologies
|
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point.
Non-blocking, high-capacity backplane of 2 x 100 Gb/s per slot.
Supports both traditional management models (ISAM release for SNMP/MIB) and SDN programming (Lightspan release for NETCONF/YANG).
Supports network sharing and network slicing between multiple services and/or content providers. |
