Running a growing fiber network can feel like juggling too many cables and too much downtime. The Nokia 7360 ISAM FX-8 gives you a compact, reliable hub that turns raw fiber into fast broadband for homes, businesses, and mobile sites. If you are tired of equipment that overheats, cannot expand, or forces you to buy separate boxes for each service, this OLT is built to end those headaches.

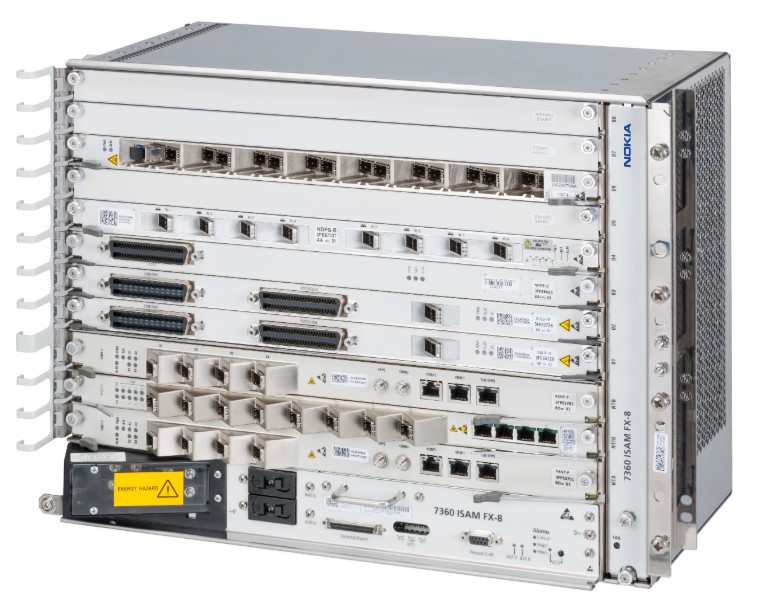

Nokia 7360 ISAM FX-8, 8 slots 8RU Mid-Size Fiber Optical Line Terminal (OLT)
Many providers struggle with limited slot density and lack of redundancy, which leads to service interruptions and costly upgrades. Those problems matter because every minute of outage hurts customers and revenue. The FX-8 solves this by offering eight line-termination slots, two redundant power slots, and support for multiple PON technologies in a single 8-RU chassis. You get high-capacity switching, active-active redundancy, and the ability to add new services without replacing the whole unit.
Key Features
- 8 slots for line termination cards and 2 slots for redundant network cards.
- Fully redundant power feeding (Branch A and B) with -48/-60 V DC input.
- High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point technologies.
- Gigabit PON, 10 G Ethernet PON (DPoE) and universal NG-PON line cards supported.
- 480 Gb/s (FANT-F) or 1.28 Tb/s (FANT-G) switching matrix options.
- Active/Active redundancy in the data plane and active/standby control plane.
- 360 Gb/s uplink capacity with SFP+ or CFP4 cages.
- Managed by Nokia 5520 AMS and compatible with DOCSIS provisioning over EPON.
- Supports network sharing, slicing, and both SNMP/MIB and NETCONF/YANG APIs.
Specifications
| General |
|
| Brand |
Nokia |
| Series |
7360 ISAM FX-8 |
| Product type |
Optical Line Terminal (OLT) |
| Shelf Type |
FX-8 |
| Shelf Configuration |
8 slots for line termination cards
2 slots for redundant network cards |
| Rack Height |
8 RU |
| Rack Compatibility |
19 inch Rack |
| Dimensions (H × W × D) |
355 mm × 446.5 mm × 278.3 mm |
| Power Input |
-48/-60 V DC nominal |
| Power Feeding |
Fully redundant power feeding (Branch A and B) |
| Fiber Access Technologies |
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point |
| LT Support |
Gigabit PON (GPON) line cards
10G Ethernet PON (EPON) line card with DPoE
Point-to-point fiber line cards
Universal NG-PON line cards |
| Supported Network Termination (NT) Cards |
|
| Nokia ISAM FANT-F |
480 Gb/s switching matrix (bidirectional)
Active/Active redundancy
160 Gb/s uplink capacity
Small Form Factor Pluggable SFP+ cages |
| Nokia ISAM FANT-G |
1.28 Tb/s switching matrix (bidirectional)
Active/Active redundancy in the data planeand Active/Standby in the control and management plane
360 Gb/s uplink capacity
C-Form Factor Pluggable (CFP4) |
| Management |
Fully managed by the Nokia 5520 AMS
DOCSIS Provisioning over EPON (DPoE) |
| Operating conditions |
|
| Operating temperature |
-40°C to +65°C (-40°F to +149°F) |
| Relative humidity |
5% to 93% (non-condensing) |
| Full service platform |
|
| Services |
Residential, mobile and business applications converged on a single modular platform:
IPTV services
Multimedia service
High-speed Internet access
Business access
Cell-site backhaul |
| Flexibility in technologies |
High-density GPON, XGS-PON, Multi-PON, TWDM-PON and point-to-point.
Non-blocking, high-capacity backplane of 2 x 100 Gb/s per slot.
Supports both traditional management models (ISAM release for SNMP/MIB) and SDN programming (Lightspan release for NETCONF/YANG).
Supports network sharing and network slicing between multiple services and/or content providers. |
