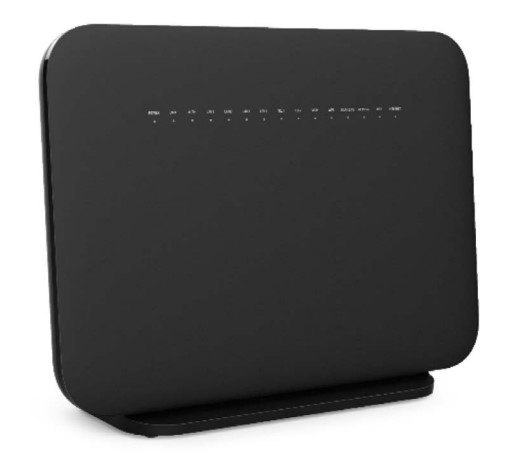

Nokia 7368 ISAM ONT G-240W-G Residential Gateway Optical Network Terminal (ONT)
The Nokia 7368 ISAM ONT G-240W-G is a GPON Residential Gateway Optical Network Terminal designed to provide broadband, voice, wireless, and network services for residential deployments. It combines GPON access with Ethernet, VoIP, WLAN, USB, and integrated gateway functions.
The GPON uplink supports 1490 nm downstream and 1310 nm upstream wavelengths, with line rates of 2.488 Gb/s downstream and 1.244 Gb/s upstream. It supports GEM mode for IP/Ethernet service traffic, ITU-T G.984.3-compliant dynamic bandwidth reporting, AES encryption, FEC, and ITU-T G.988 OMCI management.
For wired connectivity, the G-240W-G provides 10/100/1000Base-T Ethernet with RJ-45 connectors. It supports Ethernet auto-negotiation or manual configuration with MDI/MDIX, IEEE 802.1Q VLAN functionality, IEEE 802.1p marking and remarking, ToS/DSCP mapping, Class of Service, and IGMP v2/v3 snooping.
The integrated WLAN supports 802.11b/g/n with 2x2 configuration and 802.11ac with 3x3 configuration. Wireless features include 64-bit and 128-bit WEP, WPA, WPA-PSK, WPA2, and MAC filtering, providing wireless connectivity for residential devices.
The Nokia 7368 ISAM ONT G-240W-G also includes two FXS RJ-11 ports for VoIP services and two USB 2.0 interfaces. Its residential gateway functions support IPv4/IPv6, PPPoE, IPoE, NAT, DMZ, firewall, DHCP, DNS proxy, IGMP proxy, and TR-069 management. The unit supports wall or desk mounting and operates from -5°C to 45°C.
Key features
-
GPON Residential Gateway Optical Network Terminal
-
2.488 Gb/s downstream and 1.244 Gb/s upstream line rates
-
10/100/1000Base-T Ethernet with RJ-45 connector
-
802.11b/g/n 2x2 and 802.11ac 3x3 WLAN
-
Two FXS RJ-11 ports for VoIP services
-
Two USB 2.0 interfaces
-
Supports IPv4/IPv6, PPPoE/IPoE, NAT, DMZ, and firewall
-
Supports IEEE 802.1Q VLAN, IGMP v2/v3 snooping, and TR-069
Specifications:
| Physical |
|
| Height |
170 mm (6.7 in) |
| Width |
240 mm (9.4 in) |
| Depth |
32 mm (1.3 in) |
| Installation |
|
| Mounting |
Wall or desk mountable |
| Operating Environment |
|
| Temperature |
-5°C to 45°C (23°F to 113°F) |
| Relative Humidity |
10% to 90% |
| Power Requirements |
|
| Power Input |
Local powering with 12 V input (feed uses external AC/DC adapter) |
| Dying Gasp |
Support |
| Power Consumption |
<30 W |
| GPON Uplinks |
|
| Wavelength |
1490 nm downstream, 1310 nm upstream |
| Line Rate |
2.488 Gb/s downstream, 1.244 Gb/s upstream |
| GPON Encapsulation |
GPON Encapsulation Method (GEM) mode support for IP/Ethernet service traffic |
| Dynamic Bandwidth Reporting |
ITU-T G.984.3-compliant |
| Downstream Encryption |
ITU-T G.984.3-compliant Advanced Encryption Standard (AES) |
| Forward Error Correction |
ITU-T G.984.3-compliant FEC |
| ONT Management Control Interface |
ITU-T G.988 Appendix 1 and Appendix 2 OMCI |
| Software Image Download |
Remote |
| Laser |
Small form factor (SFF) type laser |
| Connector |
SC/APC |
| Ethernet Interfaces |
|
| Ethernet Interface |
10/100/1000Base-T interface with RJ-45 connectors |
| Forwarding |
Supported |
| Port Configuration |
Ethernet port auto-negotiation or manual configuration with MDI/MDIX |
| Virtual Switch |
Based on IEEE 802.1q virtual LAN (VLAN) |
| VLAN |
VLAN tagging/detagging per Ethernet port and marking/remarking of IEEE 802.1p |
| ToS/DSCP Mapping |
IP type of service/differentiated services code point (ToS/DSCP) to IEEE 802.1p mapping
for untagged frames
|
| Class of Service (CoS) |
Based on VLAN ID, IEEE 802.1p bit |
| IGMP Snooping |
IGMP v2/v3 |
| POTS Interfaces |
|
| FXS Ports |
Two FXS ports for VoIP service with RJ-11 connectors |
| Codecs |
ITU-T G.711, ITU-T G.729 |
| SIP |
RFC 3261 |
| Echo Cancellation |
ITU-T G.168 |
| Services |
Caller ID, call waiting, call hold, 3-way call, call transfer, message waiting indication |
| Ringer Equivalence Numbers (RENs) |
5 per line |
| Dialing |
Dual-tone multi-frequency (DTMF) dialing |
| Ring Signal |
Balanced sinusoidal ring signal, 55 V root mean square (RMS) |
| WLAN Interfaces |
|
| 802.11b/g/n |
2x2 |
| 802.11ac |
3x3 |
| WEP |
64-bit and 128-bit Wired Equivalent Privacy (WEP) support |
| WPA |
Wi-Fi Protected Access (WPA) support, including pre-shared key (WPA-PSK) and WPA2 |
| MAC Filters |
Supported |
| USB Interface |
|
| USB Ports |
Two USB 2.0 interfaces |
| Residential Gateways |
|
| IP Support |
IPv4 and IPv6 |
| Broadband Protocols |
Point-to-Point Protocol over Ethernet (PPPoE) and IP over Ethernet (IPoE) |
| Network Services |
NAT, DMZ and firewall |
| DHCP/DNS |
Dynamic Host Configuration Protocol (DHCP) and domain name system (DNS) proxy |
| IGMP |
IGMP proxy |
| Management |
Supports TR-069 |
| LEDs |
|
| LED Indicators |
Power; Link; Auth; LAN (1~4); TEL (1~2); VoIP; Wi-Fi Protected Setup (WPS)
2.4G/5G; WLAN 2.4G/5G; USB; Internet
|
| Safety and Electromagnetic Interference (EMI) |
|
| Protection |
Protection of over voltage/current |
| Regulatory Compliances |
|
| CE |
CE Mark |
| FCC |
FCC Mark |
