Are you tired of slow and unreliable network connections? Do you need a high-capacity edge router gateway that can handle your growing network demands? Look no further than the Nokia 7750 SR-7, 4 Tbps High-Capacity Edge Router Gateway. This powerful device is designed to provide fast and reliable connections, making it perfect for businesses and organizations that require high-speed data transfer. With its advanced technology and robust features, the Nokia 7750 SR-7 is the perfect solution for anyone looking to upgrade their network infrastructure.

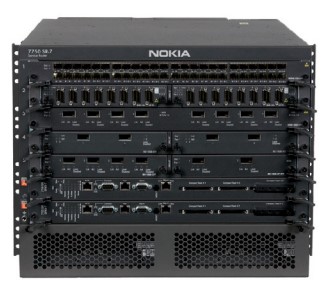

Nokia 7750 SR-7, 4 Tbps High-Capacity Edge Router Gateway
The Nokia 7750 SR-7, 4 Tbps High-Capacity Edge Router Gateway solves the problem of slow and unreliable network connections by providing a high-capacity edge router gateway that can handle large amounts of data transfer. This problem matters to users because slow and unreliable connections can lead to lost productivity, missed opportunities, and a negative impact on business operations. The Nokia 7750 SR-7 gives a clear solution by providing a fast and reliable connection, making it perfect for businesses and organizations that require high-speed data transfer.
Key Features
- System capacity: 4 Tb/s (non-redundant) and 2 Tb/s (redundant)
- Slot capacity: 800 Gb/s (non-redundant) and 400 Gb/s (redundant)
- Per-slot intelligent aggregation: 1.2 Tb/s
- Number of IOM and MS-ISM slots: 5
- Number of MDAs: 10
- Cooling: Side to back
- Network processing technology: FP4
- Supported IOM: IOM5-e, IOM4-e
- IOM capacity: 400 Gb/s (IOM4-e) and 800 Gb/s (IOM5-e)
- Hot swappable: Yes
- ITU-T Sync-E / IEEE 1588v2: Yes / Yes
Specifications
| Product Type |
Service Router |
| System Capacity (FD) |
4 Tb/s (non-redundant); 2 Tb/s (redundant) |
| Slot Capacity (FD) |
800 Gb/s (non-redundant); 400 Gb/s (redundant) |
| Per-Slot Intelligent Aggregation (FD) |
1.2 Tb/s |
| Number of IOM and MS-ISM Slots |
5 |
| Number of MDAs |
10 |
| Cooling |
Side to back |
| 3-connector 400G QSFP-DD MDA-e-XP |
20/100/300 |
| 6-connector 100G QSFP28 MDA-e-XP |
60/600 |
|
16-connector 10/25T SFP28 (MACsec) +
2-connector 100G QSFP28 MDA-e-XP
|
160 +
20/200 |
| 3-connector CFP2-DCO MDA-e-XP |
30 |
| Network Processing Technology |
FP4 |
| Supported IOM |
IOM5-e, IOM4-e |
| IOM Capacity (FD) |
400 Gb/s (IOM4-e); 800 Gb/s (IOM5-e) |
| IOM Capacity with Intelligent Aggregation (FD) |
1.2 Tb/s (IOM4-e); 1.2 Tb/s (IOM5-e) |
| Adapters per IOM |
2 |
| Hot Swappable |
Yes |
| ITU-T Sync-E / IEEE 1588v2 |
Yes / Yes |
| System Modules |
SFM6-7/12, SFM5-12, CPM5, IOM, MDA-e-XP, MDA-e, MS-ISM, EFT, PEM |
| Dimensions |
Height: 35.56 cm
(14.0 in), 8RU
Width: 44.45 cm (17.5 in)
Depth: 64.77 cm
(25.5 in) |
| Weight |
Empty: 34 kg (75 lb)
Loaded: 70 kg (155 lb) |
| Power |
DC power
• DC-40 V to -72 V, 100 A,
4,000 W max or
• DC-46 V to -72 V, 100 A,
4,600 W max
• 1+1 redundancy
External AC power (option)
• Input voltage: 200 V AC
to 240 V AC
• Output voltage: 42 V DC
to 56 V DC
• Current: 50 A |
