Are you tired of slow internet speeds and unreliable connections? Do you want to experience the power of fiber optic technology in your home or business? Look no further than the Nokia G-010G-Q GPON, 1GbE Optical Network Terminal (ONT). This device is designed to provide you with fast and reliable internet speeds, making it perfect for streaming, gaming, and other online activities. With its advanced technology and user-friendly design, the Nokia G-010G-Q GPON is the perfect solution for anyone looking to upgrade their internet experience. Many people struggle with slow internet speeds, and it can be frustrating when you are trying to get work done or enjoy your favorite online activities. The Nokia G-010G-Q GPON is here to solve that problem and provide you with the fast and reliable internet you need.

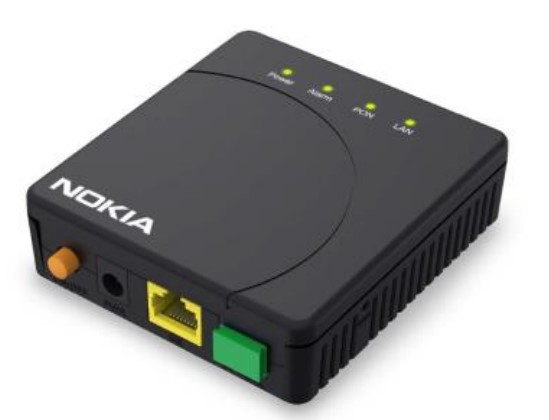

Nokia G-010G-Q GPON, 1GbE Optical Network Terminal (ONT)
The Nokia G-010G-Q GPON solves the problem of slow internet speeds by providing a fast and reliable connection. This is important because slow internet speeds can be frustrating and affect your productivity. The Nokia G-010G-Q GPON gives a clear solution by providing a device that is designed to work with fiber optic technology, giving you the fast and reliable internet you need. With its advanced technology and user-friendly design, the Nokia G-010G-Q GPON is the perfect solution for anyone looking to upgrade their internet experience.
Key Features
- Supports fiber optic technology, providing fast and reliable internet speeds
- Advanced technology and user-friendly design, making it easy to use and install
- Perfect for home or business use, providing a reliable connection for all your needs
- Designed to work with GPON and XGS-PON, giving you the best possible internet experience
- Provides a solution to the problem of slow internet speeds, making it a must-have for anyone looking to upgrade their internet
- Easy to install and use, making it a great option for those who are not tech-savvy
- Supports VLAN stacking and VLAN translation, making it a great option for businesses
- Has a built-in virtual switch, making it easy to manage your network
- Supports IGMP v2/v3 snooping, making it a great option for streaming and gaming
- Has a built-in WebGUI, making it easy to manage and configure your device
- Supports MIB manipulation, making it a great option for businesses that need to manage their network
Specifications
| Physical |
|
| Height |
3.0 cm (1.18 in) |
| Width |
13.5 cm (5.31 in) |
| Length |
13.5 cm (5.31 in) |
| Weight |
0.366 kg (0.81 lb) |
| Installation |
|
| Installation |
Desktop or wall mounting |
| Power requirements |
|
| Power requirements |
12 VDC /1A |
| Power consumption |
<4.4W |
| Operating environment |
|
| Temperature (ambient) |
-5°C to 45°C |
| Relative humidity |
5% to 95%, non-condensing |
| XGS-PON uplinks |
|
| Wavelength |
1260 nm–1280 nm upstream; 1575 nm–1580 nm downstream |
| G.9807.1 XGS-PON standards compliant |
4 dBm ~ 9 dBm launch power; -28 dBm ~ -9 dBm for receiving |
| Connector |
SC/APC connector |
| Upstream transmitter |
10 G burst mode upstream transmitter |
| Downstream receiver |
10 G downstream receiver |
| XGEM framing |
G.9807.1-compliant 10 GPON Encapsulation Method (XGEM) framing |
| XGEM port mapping |
Flexible mapping between XGEM ports and T-CONT |
| Advanced Encryption Standard (AES) |
128 |
| Forward error correction (FEC) |
Yes |
| Activation |
With automatic discovered serial number and password |
| Ethernet interfaces |
|
| LAN interface |
One LAN 100 M/1 G/2.5 G Base-T interface with RJ-45 connector |
| Ethernet port configuration |
Ethernet port auto-negotiation or manual configuration with medium dependent
interface/medium dependent interface crossover (MDI/MDIX)
|
| Virtual switch |
Based on IEEE 802.1Q virtual LAN(VLAN) |
| VLAN |
VLAN stacking (Q-in-Q) and VLAN translation |
| CoS |
Based on VLAN ID, 802.1p bit |
| IGMP |
IGMP v2/v3 snoopinG |
| Operations, administration, and maintenance (OA&M) |
|
| OMCI |
Standard compliant OMCI (the embedded operations channel) interface as
defined by ITU-T G.984.4 and ITU-T G.988
|
| WebGUI |
Supports WebGUI for the ONU. Authentication password configuration from a
LAN port on the hosting switch or router
|
| MIB manipulation |
Management information base (MIB) manipulation over OMCI with create,
delete, set, get and get next commands
|
| Alarm reporting and performance monitoring |
Yes |
| Remote software image download |
Over OMCI, as well as activation and rebooting |
| LEDs |
|
| LEDs |
Power, PON, Alarm, Data |
| Safety and electromagnetic interference (EMI) |
|
| FCC |
FCC compliant |
| UL |
UL 60950-1 |
| CE Mark |
CE Mark |
