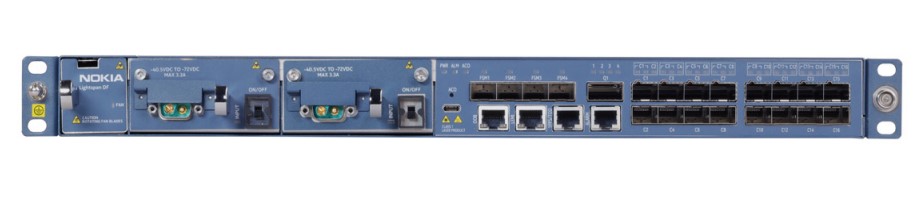

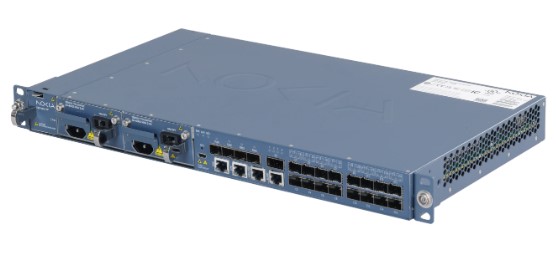

Nokia Lightspan DF-16GM 16-port GPON Mini 1RU Optical Line Terminal (OLT)
The Nokia Lightspan DF-16GM is a compact 1RU Optical Line Terminal designed as a full-service platform for high-performance fiber access networks. It supports multiservice access including IPTV services, multimedia service, high-speed internet access, business access, and cell-site backhaul.
The Lightspan DF-16GM provides 16-port GPON connectivity, while its 8-port multi-PON support enables GPON, XGS-PON, and multi-PON mode operation. The platform is also hardware ready for 4-port 25GS-PON, supporting network evolution and future fiber access requirements.
For network aggregation, the Nokia Lightspan DF-16GM features 1 x 100 GigE uplink through a QSFP28 cage and 4 x 1 or 10 GigE uplinks through SFP+ cages. Its 200 Gb/s bidirectional switching matrix provides high-capacity traffic handling for demanding access network deployments.
The OLT is fully managed by the Nokia Altiplano Access Controller and supports AC or DC powering. Field-replaceable AC or DC power modules and DC+DC power redundancy provide flexible power configurations for different deployment environments.
Designed for demanding operating conditions, the Nokia Lightspan DF-16GM operates from -40°C to +65°C. It includes over-temperature sensors and shutdown protection, a replaceable low-noise fan module, and a dust filter, while its compact 444 mm × 274 mm × 44 mm 1RU chassis is suitable for space-efficient network installations.
Key features
- 16-port GPON Optical Line Terminal
- 8-port multi-PON supporting GPON and XGS-PON
- Hardware ready for 4-port 25GS-PON
- 1 x 100 GigE QSFP28 uplink
- 4 x 1 or 10 GigE SFP+ uplinks
- 200 Gb/s bidirectional switching matrix
- Fully managed by Nokia Altiplano Access Controller
- Operating temperature from -40°C to +65°C
Specifications:
| Full-service platform |
|
| Multiservice access support |
IPTV services; Multimedia service; High-speed internet access; Business access; Cell-site backhaul |
| Downlink support |
8-port multi-PON supporting GPON, XGS-PON and multi-PON mode;
16-port GPON; Hardware ready for 4-port 25GS-PON
|
| Uplink support |
1 x 100 GigE using a QSFP28 cage; 4 x 1 or 10 GigE using SFP+ cages;
200 Gb/s switching matrix (bidirectional)
|
| Management |
|
| Management |
Fully managed by the Nokia Altiplano Access Controller |
| Standards compliance |
|
| Environmental |
|
| ETS EN 300 019-1-1 storage |
Class 1.1 weather-protected, partly temperature-controlled locations |
| ETS EN 300 019-1-2 transport |
Class 2.3 public transportation |
| ETS EN 300 019-1-3 stationary use |
Class 3.1E and Class 3.3 (assuming no condensation and icing) |
| Powering |
|
| ETS EN 300 132-1 |
AC powered |
| ETS EN 300 132-2 |
DC powered |
| Operating conditions |
|
| Operating temperature range |
-40°C to +65°C (-40°F to +149°F) |
| Over-temperature protection |
Over-temperature sensors and over-temperature shutdown |
| Fan and dust protection |
Replaceable low noise fan module and dust filter |
| Power |
|
| Power modules |
Field replaceable AC or DC power modules |
| Power module redundancy |
DC+DC, hardware ready for AC+Battery |
| Input |
|
| DC-powered |
-40.5~-72V DC (-48V nominal) |
| AC-powered |
100~240V AC - input frequency 50 Hz-60 Hz |
| Dimensions |
|
| Width |
444mm (17.48 in) (excluding brackets) |
| Depth |
274 mm (10.79 in) |
| Height |
44 mm (1.73 inch) (1 RU) |
