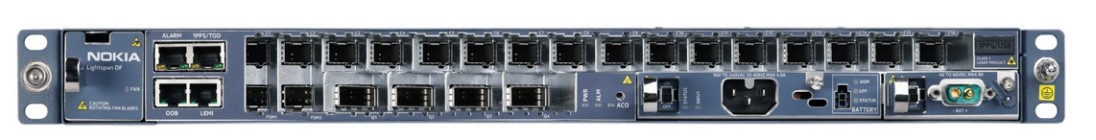

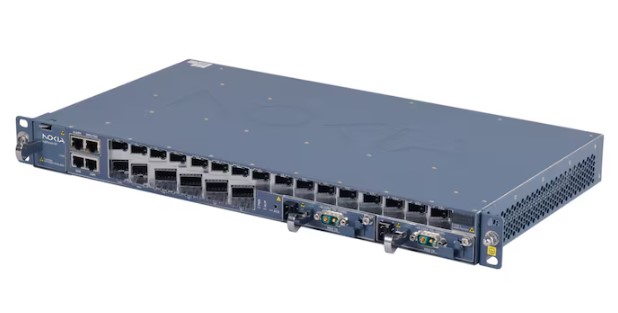

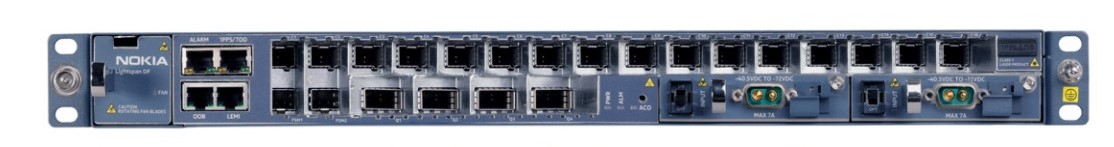

Nokia Lightspan DF-32GM 32-Port GPON 1RU Mini Optical Line Terminal (OLT)
The Nokia Lightspan DF-32GM is a compact 1RU Mini Optical Line Terminal designed for multiservice broadband access networks. It supports IPTV, multimedia services, high-speed internet access, business access, and 5G Mobile Anyhaul applications.
The Lightspan DF-32GM provides flexible downlink options with 16-port Multi-PON supporting GPON, XGS-PON, and Multi-PON mode. It also supports 32-port GPON using Dual-GPON SFP-DD optics and is hardware ready for 8-port 25G PON.
For high-capacity network aggregation, the Nokia OLT provides 4 x 100 GigE using QSFP28 cages and 2 x 1 or 10 GigE using SFP+ cages. Its 600 Gb/s bidirectional switching matrix provides high-speed switching for demanding access networks.
The platform supports SyncE frequency synchronization and IEEE 1588v2 PTP frequency and phase synchronization. SDN controllability is provided through NETCONF/YANG, while IPFIX supports bulk statistics collection and the Nokia Altiplano Access Controller provides centralized management.
Designed for demanding deployment environments, the Nokia Lightspan DF-32GM operates from -40°C to +65°C and includes over-temperature sensors and shutdown protection. It uses a replaceable low-noise fan module and dust filter, with field-replaceable AC, DC, and battery backup power modules.
Key Features
-
32-port GPON using Dual-GPON SFP-DD optics
-
16-port Multi-PON supporting GPON and XGS-PON
-
Hardware ready for 8-port 25G PON
-
4 x 100 GigE QSFP28 uplink cages
-
2 x 1/10 GigE SFP+ uplink cages
-
600 Gb/s bidirectional switching matrix
-
SyncE and IEEE 1588v2 PTP synchronization
-
1RU compact rack-mount form factor
Specifications:
| Full-service platform |
|
| Multiservice access support |
IPTV services; Multimedia service; High-speed internet access; Business access; 5G Mobile Anyhaul |
| Downlink support |
16-port Multi-PON supporting GPON, XGS-PON and Multi-PON mode;
32 port GPON using Dual-GPON SFP-DD optics; Hardware ready for 8-port 25G PON
|
| Uplink support |
4 x 100 GigE using a QSFP28 cage; 2 x 1 or 10 GigE using SFP+ cages;
600 Gb/s switching matrix (bidirectional)
|
| Synchronization |
SyncE frequency synchronization; IEEE 1588v2 PTP frequency and phase synchronization |
| Management |
|
| SDN controllable |
NETCONF/YANG |
| IPFIX |
Support for IPFIX bulk statistics collection |
| Management platform |
Fully managed by the Nokia Altiplano Access Controller |
| Operating conditions |
|
| Operating temperature range |
-40°C to +65°C (-40°F to +149°F) |
| Over-temperature protection |
Over-temperature sensors and over-temperature shutdown |
| Fan and dust protection |
Replaceable low noise fan module and dust filter |
| Power |
|
| Power modules |
Field replaceable AC, DC and Battery backup module |
| Power module redundancy |
DC+DC, AC+Battery |
| DC-powered |
-40.5~-72V DC (-48V nominal) |
| AC-powered |
110~240V AC - input frequency 50 Hz-60 Hz |
| Dimensions |
|
| Width |
444mm (17.48 in) (excluding brackets) |
| Depth |
274 mm (10.79 in) |
| Height |
44 mm (1.73 in) (1 RU) |
| Standards compliance |
|
| Environmental |
|
| ETS EN 300 019-1-1 storage |
Class 1.1 weather-protected, partly temperature-controlled locations |
| ETS EN 300 019-1-2 transport |
Class 2.3 public transportation |
| ETS EN 300 019-1-3 stationary use |
Class 3.1E and Class 3.3 (-40C to +65C, no condensation) |
| Powering |
|
| ETS EN 300 132-1 |
AC powered |
| ETS EN 300 132-2 |
DC powered |
