Need a fiber node that can keep up with exploding data traffic? The Nokia Lightspan MF-14, 19" 15 RU Fiber Access Node is a high-capacity platform built for modern networks. It connects thousands of customers to broadband, IPTV, and mobile services. When your network slows down or crashes, you lose customers and revenue. This node solves that problem by delivering reliable, fast, and scalable fiber access.

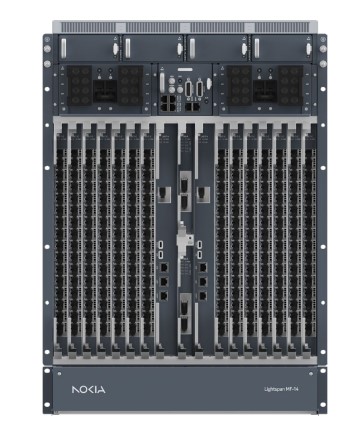

Nokia Lightspan MF-14, 19" 15 RU Fiber Access Node, Highest capacity platform
Many operators struggle with limited bandwidth and frequent outages. Those issues hurt user experience and increase support costs. The Lightspan MF-14 removes the bottleneck. It offers the highest capacity in a compact 19-inch, 15-RU shelf. Redundant power feeding and a 200 Gb/s uplink keep the network alive even when a component fails. With multi-PON support, you can add new services without replacing hardware.
Key Features
- 19-inch, 15 RU modular shelf for easy rack integration.
- Fully redundant power feeding (Branch A and B) for high availability.
- 16-port cards supporting GPON, XGS-PON, multi-PON, and 25 G PON.
- 2 Tb/s bidirectional switching matrix with active/active redundancy.
- 200 Gb/s uplink capacity for massive data flow.
- Four 100 GE QSFP uplink ports for rapid backbone connections.
- Supports IPTV, high-speed internet, business access, and mobile traffic transport.
- Managed by Nokia Altiplano Access Controller for centralized control.
- 48/60 V DC nominal power input for flexible power sourcing.
Specifications
| General |
|
| Brand |
Nokia |
| Series |
Lightspan MF |
| Product type |
Lightspan access node/Optical Line Terminal (OLT) |
| Shelf Type |
MF-14 |
| Moduler shelf |
19 inch 15 RU shelf |
| Rack Height |
15 RU |
| Rack Compatibility |
19 inch Rack |
| Dimensions (H × W × D) |
562.4 mm × 465 mm × 287.7 mm |
| Power Input |
48/60V DC nominal |
| Power Feeding |
Fully redundant power feeding (Branch A and B) |
| Full service Platform |
|
Multiservice access support
|
IPTV services
Multimedia service
High-speed Internet access
Business access
Mobile traffic transport
Wholesale |
| LT Support |
16-port cards supporting GPON, XGS-PON,
multi-PON and 25G PON |
Network Termination (NT) support
|
|
| Lightspan MF LBNT-A |
Lightspan MF LBNT-A
2 Tb/s switching matrix (bidirectional)
Active/Active redundancy
200 Gb/s uplink capacity |
| Lightspan MF-14 LTIO-B |
4x 100GE uplink capacity
Quad Small Form Factor Pluggable
(QSFP) cages |
| Management |
Fully managed by the Nokia Altiplano Access Controller |
| Operating conditions |
|
|
Operating temperature
(at the air inlet of the shelf)
|
-5°C to +55°C(23°F to +131°F) |
| Relative humidity |
5% to 93% (non-condensing) |
