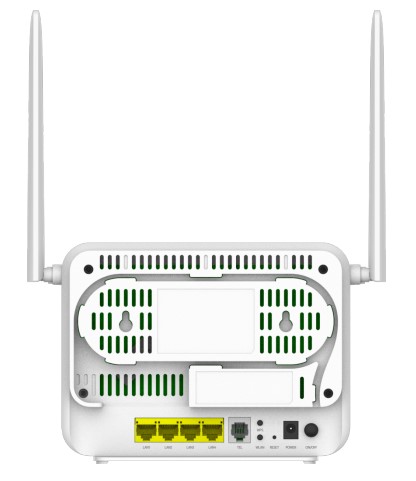

Nokia ONT G-1425G-B Dual-band Wi-Fi 5 Optical Network Terminal
Nokia ONT G-1425G-B is a dual-band Wi-Fi 5 Optical Network Terminal designed for GPON broadband access and residential network connectivity. It combines a GPON uplink, Gigabit Ethernet, dual-band WLAN, and VoIP functionality in a compact desktop or wall-mountable design.
The GPON interface supports 2.488 Gb/s downstream and 1.244 Gb/s upstream line rates, with 1490 nm downstream and 1310 nm upstream wavelengths. It uses a BOSA On Board laser with an SC/APC connector and supports ITU-T G.984.3 features including dynamic bandwidth reporting, AES downstream encryption, and forward error correction.
For wired networking, the Nokia G-1425G-B provides 10/100/1000Base-T connectivity with RJ-45 connectors and supports Ethernet auto-negotiation or manual configuration. VLAN tagging and de-tagging, IEEE 802.1p marking, ToS/DSCP mapping, CoS, and IGMP v2/v3 snooping support efficient traffic handling for broadband and multimedia services.
The integrated dual-band WLAN supports 802.11b/g/n and 802.11ac with 2x2 MIMO, providing Wi-Fi 5 wireless connectivity for compatible devices. WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES, and MAC filtering provide wireless security options for residential deployments.
The Nokia ONT G-1425G-B also includes one FXS port for VoIP services and supports SIP, multiple voice codecs, echo cancellation, caller ID, call waiting, call hold, 3-way calling, call transfer, and message waiting indication. IPv4/IPv6, PPPoE, IPoE, NAT, firewall, DHCP, DNS proxy, IGMP proxy, TR-069, and optional USB 2.0 connectivity provide additional residential gateway capabilities.
Key features
-
Dual-band Wi-Fi 5 with 2x2 MIMO
-
GPON downstream rate up to 2.488 Gb/s
-
GPON upstream rate up to 1.244 Gb/s
-
10/100/1000Base-T Ethernet interface
-
One FXS port for VoIP service
-
Supports IPv4 and IPv6
-
Supports PPPoE and IPoE WAN protocols
-
Desk and wall mounting support
Specifications:
| Physical |
|
| Height |
138 mm (5.4 in) (without antennas) |
| Width |
180 mm (7.1 in) |
| Depth |
37 mm (1.5 in) (without base) |
| Installation |
|
| Mounting |
Desk mountable, Wall mountable |
| Operating environment |
|
| Temperature |
-5°C to 45°C (23°F to 113°F) |
| Relative humidity |
10% to 90% |
| Power requirements |
|
| Power input |
Local powering with 12 V input (feed uses external AC/DC adapter) |
| Dying gasp |
Support |
| Power consumption |
<18 W |
| GPON uplinks |
|
| Wavelength |
1490 nm downstream, 1310 nm upstream |
| Line rate |
2.488 Gb/s downstream, 1.244 Gb/s upstream |
| GEM mode |
Support for IP/Ethernet service traffic |
| Dynamic bandwidth reporting |
ITU-T G.984.3-compliant |
| AES |
ITU-T G.984.3-compliant Advanced Encryption Standard (AES) in downstream |
| FEC |
ITU-T G.984.3-compliant forward error correction (FEC) |
| OMCI |
ITU-T G.988 Appendix 1 and Appendix 2 ONT Management Control Interface (OMCI) |
| Software image download |
Remote software image download |
| Optical interface |
BOSA On Board (BOB) type laser, SC/APC connector |
| Ethernet interfaces |
|
| Ethernet interface |
10/100/1000Base-T interface with RJ-45 connectors |
| Wi-Fi security |
Wi-Fi Protected Access (WPA) support, including pre-shared key (WPA-PSK) and WPA2 |
| Forwarding |
Support |
| Ethernet configuration |
Ethernet port auto-negotiation or manual configuration |
| Virtual switch |
Based on IEEE 802.1q virtual LAN (VLAN) |
| VLAN |
VLAN tagging/de-tagging per Ethernet port and marking/remarking of IEEE 802.1p |
| ToS/DSCP mapping |
IP type of service/differentiated services code point (ToS/DSCP) to IEEE 802.1p mapping for untagged frames |
| CoS |
Based on VLAN ID, IEEE 802.1p bit |
| IGMP snooping |
IGMP v2/v3 snooping |
| POTS interface |
|
| FXS port |
One FXS port for VoIP service with RJ-11 connectors |
| Voice codecs |
G.711 A-law, G.711 μ-law, G.729A, G.729B and G-723.1 |
| SIP |
SIP (RFC 3261) |
| Echo cancellation |
ITU-T G.168 echo cancellation |
| Voice services |
Caller ID, call waiting, call hold, 3-way call, call transfer, message waiting indication |
| RENs |
3 ringer equivalence numbers (RENs) per line |
| DTMF |
Dual-tone multi-frequency (DTMF) dialing |
| Ring signal |
Balanced sinusoidal ring signal, 55 V root mean square (RMS) |
| WLAN Interfaces |
|
| 802.11b/g/n |
2x2 MIMO |
| 802.11ac |
2x2 MIMO |
| WLAN security |
WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES |
| MAC filtering |
MAC filters |
| Residential gateway |
|
| IP support |
IPv4 and IPv6 |
| WAN protocols |
Point-to-Point Protocol over Ethernet (PPPoE) and IP over Ethernet (IPoE) |
| NAT |
Support |
| DMZ |
Support |
| Firewall |
Support |
| DHCP |
Dynamic Host Configuration Protocol (DHCP) |
| DNS |
Domain name system (DNS) proxy |
| IGMP |
IGMP proxy |
| TR-069 |
Support |
| LEDs |
|
| Indicators |
Power, Link, Auth, LAN (1-4), TEL (1), VoIP, Wi-Fi Protected Setup (WPS) 2.4G/5G, WLAN 2.4G/5G, Internet |
| USB |
|
| USB ports |
Up to 2 USB 2.0 ports (depending on variant) |
| Safety and electromagnetic interference (EMI) |
|
| Protection |
Protection of over voltage/current |
| Regulatory compliances |
|
| Certifications |
CE compliant, FCC compliant |
