Nokia XS-2426X-A XGS-PON Dual-band Wi-Fi 6 Optical Network Terminal (ONT)

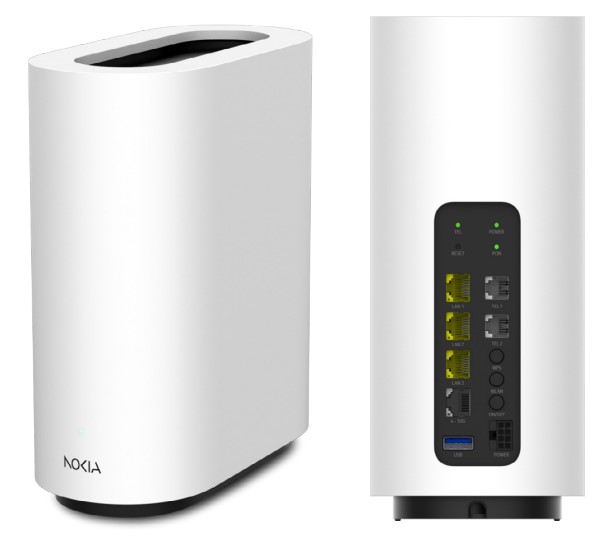

The Nokia XS-2426X-A is an XGS-PON Optical Network Terminal designed to deliver high-speed broadband connectivity with dual-band Wi-Fi 6, multi-gigabit Ethernet, VoIP, and residential gateway functionality. It supports desk or wall mounting for flexible installation.
The XGS-PON uplink complies with G.9807.1 and uses an SC/APC connector, with 1260 nm–1280 nm upstream and 1575 nm–1580 nm downstream wavelengths. It supports a 10 G burst-mode upstream transmitter, 10 G downstream receiver, XGEM framing, flexible XGEM port and T-CONT mapping, AES-128 encryption, FEC, secure boot, and remote software image download.
For wired networking, the Nokia XS-2426X-A provides three RJ-45 interfaces supporting 10M/100M/1G and one RJ-45 auto-negotiating interface supporting 100M/1G/2.5G/5G/10G. It supports IEEE 802.1Q virtual switching, VLAN tagging and de-tagging, IEEE 802.1P marking, Class of Service, and IGMP v2/v3 snooping.
The dual-band Wi-Fi 6 system provides 4x4 MIMO on both 2.4 GHz and 5 GHz bands, with a 3 dBi internal antenna. Wireless security includes WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES, and WPA3, along with MAC filtering for network access control.
The Nokia XS-2426X-A also includes two RJ-11 FXS ports for VoIP, one USB 3.0 interface, and residential gateway functions including IPv4/IPv6, PPPoE, IPoE, NAT, DMZ, firewall, DHCP, DNS proxy, IGMP proxy, TR-069, and TR-369. It operates from -5°C to 45°C with power consumption below 36 W.
Key features
-
XGS-PON Optical Network Terminal compliant with G.9807.1
-
Dual-band Wi-Fi 6 with 4x4 MIMO on 2.4 GHz and 5 GHz
-
1x 10G/5G/2.5G/1G/100M RJ-45 Ethernet interface
-
3x 10M/100M/1G RJ-45 Ethernet interfaces
-
Supports AES-128, FEC, secure boot, and remote software download
-
2x RJ-11 FXS ports with G.711 and G.729 VoIP codecs
-
1x USB 3.0 interface
-
IPv4/IPv6, PPPoE/IPoE, NAT, DMZ, and firewall support
Specifications:
| Physical |
|
| Height |
226 mm (8.9 in) |
| Width |
85 mm (3.3 in) |
| Depth |
175 mm (6.9 in) |
| Weight |
1.38 kg (3.0 lb) |
| Installation |
|
| Desk Mounting |
Desk mountable |
| Wall Mounting |
Wall mountable with bracket |
| Operating Environment |
|
| Temperature |
-5°C to 45°C (23°F to 113°F) |
| Relative Humidity |
10% to 90% |
| Power Requirements |
|
| Power Input |
Local powering with 12 V input (feed uses external AC/DC adapter)
or optional UPS
|
| Dying Gasp |
Support |
| Power Consumption |
< 36 W |
| XGS PON Uplinks |
|
| Wavelength |
1260 nm–1280 nm upstream; 1575 nm–1580 nm downstream |
| XGS PON Standard |
G.9807.1 |
| Launch Power |
4 dBm ~ 9 dBm |
| Receiving Power |
-28 dBm ~ -9 dBm |
| Connector |
SC/APC |
| Upstream Transmitter |
10 G burst mode |
| Downstream Receiver |
10 G |
| Encapsulation |
G.9807.1-compliant 10 GPON Encapsulation Method (XGEM) framing |
| XGEM Ports and T-CONT |
Flexible mapping |
| Encryption |
Advanced Encryption Standard (AES) 128 |
| Forward Error Correction |
FEC |
| Activation |
Automatic discovered serial number and password |
| Software Image Download |
Remote |
| Secure Boot |
Supported |
| Laser |
BOSA On Board (BOB) type |
| Ethernet Interfaces |
|
| 10M/100M/1G Interfaces |
3 x RJ-45 auto-negotiating interfaces |
| 100M/1G/2.5G/5G/10G Interface |
1 x RJ-45 auto-negotiating interface |
| Forwarding |
Supported |
| Auto-Negotiation |
Ethernet port auto-negotiation or manual configuration |
| MDI/MDIX |
Medium dependent interface / medium dependent interface crossover |
| Virtual Switch |
Based on IEEE 802.1q VLAN |
| VLAN |
Tagging/de-tagging in Ethernet interface, and marking of IEEE 802.1P |
| Class of Service (CoS) |
Based on VLAN ID, IEEE 802.1p bit |
| IGMP Snooping |
IGMP v2/v3 |
| POTS Interfaces |
|
| FXS Ports |
2 |
| Connector |
RJ-11 |
| Codecs |
ITU-T G.711, ITU-T G.729 |
| SIP |
RFC 3261 |
| Echo Cancellation |
ITU-T G.168 |
| Services |
Caller ID, call waiting, call hold, 3-way call, call transfer, message waiting indication |
| Ringer Equivalence Numbers (RENs) |
5 per line |
| Dialing |
Dual-tone multi-frequency (DTMF) |
| Ring Signal |
Balanced sinusoidal, 55 V RMS |
| WLAN Interfaces |
|
| 802.11b/g/n/ax |
4x4 MIMO |
| 802.11a/n/ac/ax |
4x4 MIMO |
| Antenna |
3 dBi internal antenna |
| Security |
WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES, WPA3 |
| MAC Filters |
Supported |
| USB Interface |
|
| USB Port |
1 x USB 3.0 |
| Residential Gateways |
|
| IP Support |
IPv4 and IPv6 |
| Broadband Protocols |
PPPoE and IPoE |
| Network Services |
NAT, DMZ and firewall |
| DHCP/DNS |
DHCP and DNS proxy |
| IGMP |
IGMP proxy |
| Management |
TR-069 and TR-369 |
| LEDs |
|
| LED Indicators |
Power, PON, Internet, Tel, WPS, WLAN, USB |
| Safety and Electromagnetic Interference (EMI) |
|
| Protection |
Protection of over voltage/current |
| Regulatory Compliances |
|
| Certifications |
CE & UKCA Mark; FCC Mark |
