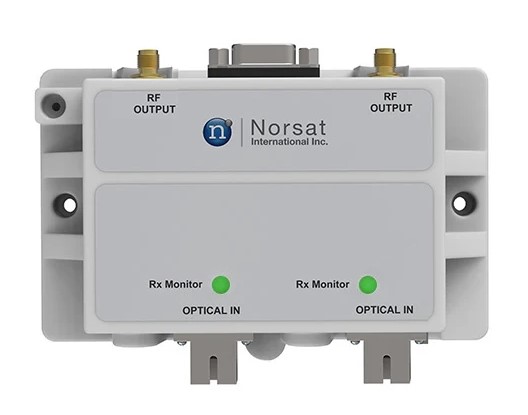

Norsat RX203M0000MSA0 RF over Fiber 3GHz, Dual Receiver Multimode

Norsat RX203M0000MSA0 RF over Fiber 3GHz Dual Receiver Multimode

The Norsat RX203M0000MSA0 is a 3 GHz RF over Fiber dual receiver designed for indoor installation and multimode fiber applications. It supports a wide RF frequency range from 30 to 3000 MHz and provides two receiver channels for RF signal distribution over fiber.

The unit features an indoor flange-mount form factor and supports RF operation across the 30 MHz to 3 GHz range. Its lower rolloff is specified at 30 MHz, providing coverage across the stated operating frequency range.

The RX203M0000MSA0 provides a typical frequency response flatness of 3 dB peak-to-peak and a maximum of 4 dB peak-to-peak. RF gain, noise figure, IIP3, and SFDR depend on the fiber transmitter at the other end of the link, with LNA and no-LNA configurations available.

For connectivity, the receiver uses SC/PC bulkhead optical connectors and 50 Ohm SMA female RF connectors. The RF output impedance is 50 Ohms, with typical output VSWR of less than 2.0:1.

The Norsat RX203M0000MSA0 operates from a supply voltage of 9V < Vcc < 30V with a supply current below 360 mA. It supports an operating case temperature of -40°C to +75°C and storage temperatures from -40°C to +85°C. The compact receiver measures 128 × 78 × 32 mm and weighs 0.315 kg.

Key Features

• RF frequency range from 30 to 3000 MHz

• Dual receiver configuration

• Multimode RF over Fiber design

• 3 dBpp typical frequency response flatness

• 4 dBpp maximum frequency response flatness

• 50 Ohm SMA female RF connectors

• SC/PC bulkhead optical connectors

• Operating case temperature from -40°C to +75°C

• Compact 0.315 kg indoor flange-mount design
