Need AI power that fits into a tiny board? The NVIDIA AIO-OrinNX 16GB, Jetson Orin NX System on Module (SoM) gives you desktop-class performance in a size that can sit on a small robot or a compact edge device. Developers often struggle with slow processing, limited memory, and bulky hardware that cannot handle real-time vision or deep-learning tasks. This module solves those pain points so you can build smarter products without redesigning the whole system.

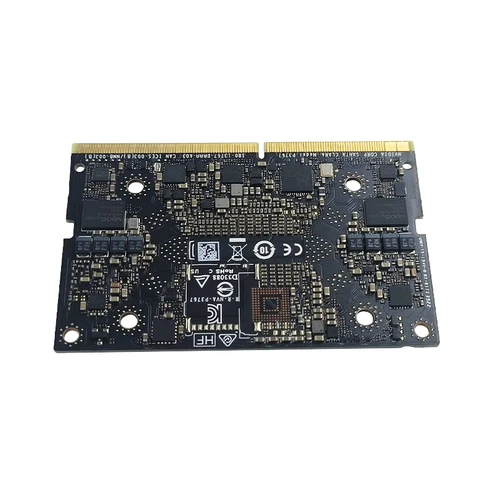

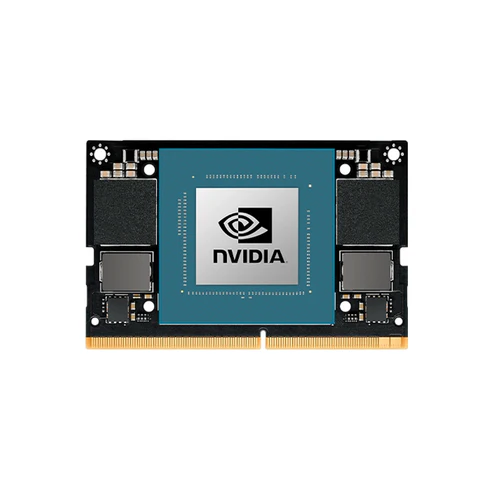

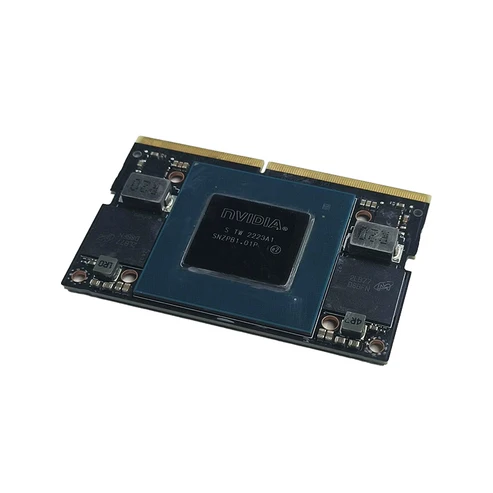

NVIDIA AIO-OrinNX 16GB, Jetson Orin NX System on Module (SoM)
The module removes the bottleneck of low-speed CPUs and weak GPUs that hold back AI projects. When a device cannot process data fast enough, latency rises and user experience suffers. With 100 TOPS of AI performance, a powerful 8-core Arm Cortex-A78AE CPU, and a 1024-core Ampere GPU, the SoM delivers the speed you need to run multiple neural networks at once. It packs all this power into a 69.6 mm 45 mm board, giving you a clear path to high-performance edge AI.
Key Features
- 8-core Arm Cortex-A78AE CPU with 2 MB L2 and 4 MB L3 cache.
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores.
- Two NVDLA v2 deep-learning accelerators.
- One PVA v2 vision accelerator for image pipelines.
- 16 GB 128-bit LPDDR5 memory delivering 102.4 GB/s bandwidth.
- Support for external NVMe storage for fast data logging.
- PCIe 4.0 4 plus three PCIe 4.0 1 lanes for flexible expansion.
- Three USB 3.2 Gen 2 ports and three USB 2.0 ports for peripherals.
- DisplayPort 1.4a / eDP 1.4a / HDMI 2.1 supporting 8K @ 30 Hz.
- Rich I/O: UART, SPI, I2S, I2C, CAN, DMIC, DSPK, PWM, GPIO.
Specifications
| Model |
AIO-OrinNX (16GB) |
| AI Performance |
100 TOPS |
| CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU with 2MB L2 cache + 4MB L3 cache |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| DL Accelerator |
2 × NVDLA v2 |
| Vision Accelerator |
1 × PVA v2 |
| Memory |
16GB 128-bit LPDDR5, 102.4 GB/s memory bandwidth |
| Storage |
Supports external NVMe storage |
| Video Encoding |
1 × 4K@60fps (H.265), 3 × 4K@30fps (H.265),
6 × 1080p@60fps (H.265), 12 × 1080p@30fps (H.265)
|
| Video Decoding |
1 × 8K@30fps (H.265), 2 × 4K@60fps (H.265), 4 × 4K@30fps (H.265),
9 × 1080p@60fps (H.265), 18 × 1080p@30fps (H.265)
|
| Other I/O |
3 × UART, 2 × SPI, 2 × I2S, 4 × I2C, 1 × CAN, DMIC & DSPK, PWM, GPIO |
| PCIe |
1 × PCIe 4.0 ×4 + 3 × PCIe 4.0 ×1 (supports Root Port and Endpoint modes) |
| USB |
3 × USB 3.2 Gen 2 (10 Gbps)3 × USB 2.0 |
| Display Interface |
1 × 8K@30 multimode DisplayPort 1.4a (+MST) / eDP 1.4a / HDMI 2.1 |
| Module Size |
69.6 mm × 45 mm, 260-pin SO-DIMM connector |
