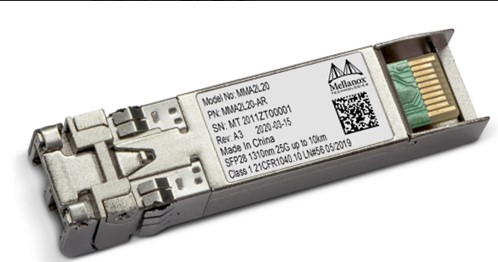

NVIDIA Mellanox MMA2L20-AR, 25GbE 1310nm 10km SFP28 Optical Transceiver Module

NVIDIA Mellanox MMA2L20-AR, 25GbE 1310nm 10km SFP28 Optical Transceiver Module

The NVIDIA^® MMA2L20-AR 25Gb/s transceiver module is designed for optical communication applications and is compliant with the IEEE 802.3 standard for 25G Ethernet 25GBASE-LR, and backward compatible with 10G SFP+ pluggable.

The central wavelength is 1310 nm. The high-performance transmitter and high sensitivity PIN receiver provide superior performance for 25 Gigabit Ethernet applications with up to 10 km links and compliant to optical interface with IEEE802.3cc.

The MMA2L20 transceiver is designed with form factor, optical/electrical connection, and digital diagnostic interface according to the SFP28 Multi-Source Agreement (MSA) ‎

The transceiver’s electrical interface is compliant with the OSI CEI VSR-28G-VSR standard.The transceiver is designed to meet the industrial standard operating conditions including temperature, humidity and EMI interference.

The optical connector is a duplex LC/UPC (un-angled) connector intended for a pair of single mode fibers.Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Key Features:

• Hot pluggable SFP28 MSA form factor

• Compliant to IEEE 802.3 25GBASE-LR

• Selectable retiming for 10G operation

• Up to 10km reach on G.652 SMF

• Selectable 10/25G operation

• Single +3.3V power supply

• Operating case temperature: 0-70°C

• Transmitter: 25Gb/s DFB (1310nm)

• Receiver: 25Gb/s PIN

• 28G electrical serial interface (CEI-28G-VSR)

• Maximum power consumption 1.5 W

• Duplex LC/UPC receptacle

• SFF-8402 compliant

• RoHS compliant

• SFF-8472 compliant DDM functions
