Imagine a data center that never slows down, even when traffic spikes. The NVIDIA Mellanox Spectrum MSN2410-CB2FC 10/100GbE 1U Open Ethernet Switch is built for exactly that. It is a high-performance, rack-mount switch that lets you connect dozens of servers with speeds up to 100 GbE. If you are tired of bottlenecks, dropped packets, and costly upgrades, this switch gives you the bandwidth and reliability you need to keep your applications running smoothly.

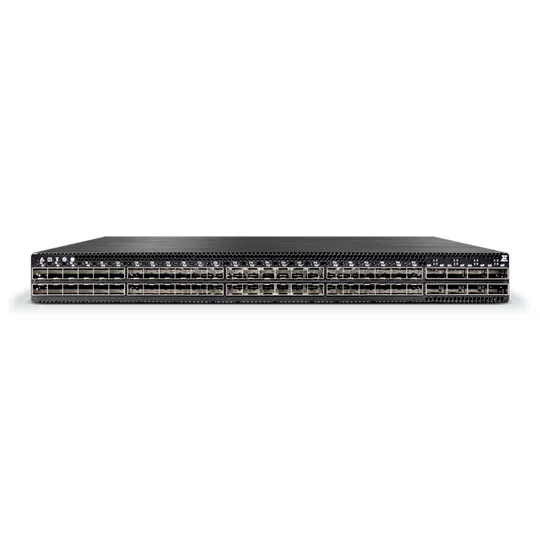

NVIDIA Mellanox Spectrum MSN2410-CB2FC 10/100GbE 1U Open Ethernet Switch
Large data workloads often choke on limited port speeds and outdated hardware. When a switch cannot keep up, latency rises and users experience slow response times. This problem hurts productivity and can lead to lost revenue. The Spectrum MSN2410-CB2FC solves the issue by delivering 48xSFP28 ports and 8xQSFP28 ports that support 10 GbE to 100 GbE speeds. Its 4 Tb/s throughput and low power draw let you scale without adding extra racks or power circuits.
Key Features
- 48xSFP28 ports for 10/25 GbE connections.
- 8xQSFP28 ports supporting up to 100 GbE.
- 4 Tb/s total switching capacity.
- Intel x86 1.40 GHz dual-core CPU for control plane tasks.
- 8 GB DDR3 RAM with SSD storage for fast configuration.
- 1U rack-mount size (43.9 mm 438 mm 394 mm).
- Dual power-supply options for redundancy.
- Operating temperature range from 0 C to 40 C.
- Compliance with CE, FCC, RoHS and other global standards.
- Low noise level of 70.9 dB(A) for data-center environments.
Specifications
| Mechanical |
|
| Size: |
43.9mm (H) x 438mm (W) x 394mm (D)
1.72"(H) x 17.24"(W) x 15.5"(D)
|
| Mounting: |
19” Rack mount |
| Weight: |
1 PSU weight 6.726kg (14.8 lb) 2 PSU weight 7.526kg (16.6 lb) |
| Speed: |
10/25GbE per port (ports 1-48), 10/25/40/50/56/100GbE per port (ports 49-56) |
| Connector cage: |
48xSFP28 and 8xQSFP28 |
| Power Supply |
|
| Power Supply |
AC and DC |
| Input Voltage: |
1x/2x, 100-127VAC; 50/60Hz 4.5A;
200-240 50/60Hz 2.9A/ 40.5-60VDC 12A/ 192-288VDC (not certified)-48VDC,
Input voltage range (-40) to (-72)VDC
|
| Global Power Consumption: |
40GbE/100GbE Models -Typical power with passive cables (ATIS): 105W |
| Main Devices |
|
| CPU: |
Intel x86 1.40GHz Dual Core |
| PCIe: |
4x Gen2.0 |
| Switch: |
NVIDIA Spectrum |
| Memory: |
8GB DDR3 RAM, 32G SSD for systems based on Switch rev. B1 and earlier
8GB DDR3 RAM, 16G SSD for systems based on Switch rev. B2 and higher
|
| Throughput |
|
| |
4Tb/s |
| Environmental |
|
| Temperature: |
Operational: 0° to 40°CNon-Operational: -40° to 70°C |
| Humidity: |
Operational: 10% - 85% non-condensingNon-Operational: 10% - 90% non-condensing |
| Altitude: |
3050m |
| Noise level: |
70.9 dB(A) |
| Regulatory |
|
| Safety/ EMC: |
CB, cTUVus, CE, CU, S_Mark, CE, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS: |
RoHS complaint |
