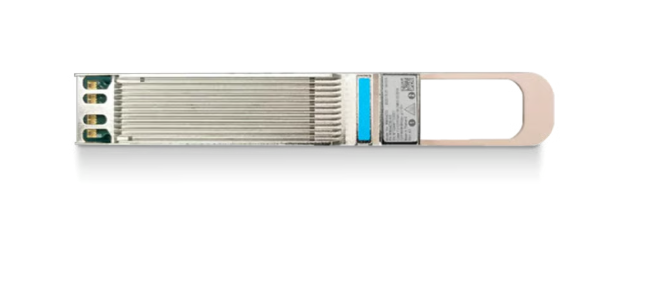

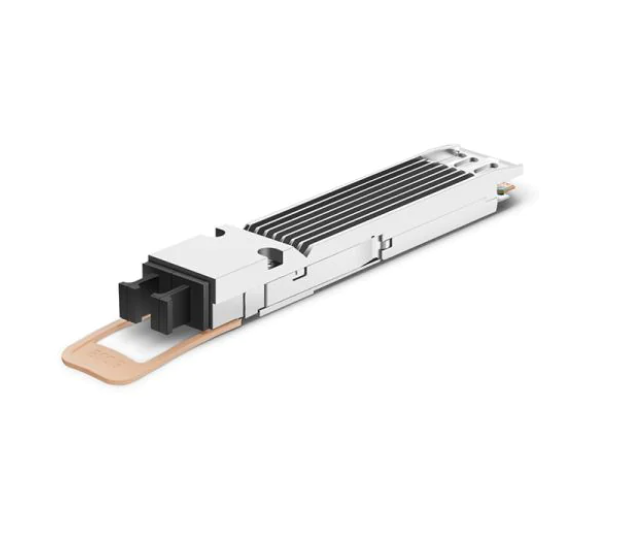

NVIDIA MMA4Z00-NS800 800Gb/s Twin-Port OSFP 2×400Gb/s Finned Multimode Transceiver
The NVIDIA MMA4Z00-NS is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, DR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel multimode, short reach 8-channel (2xSR4) uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using 8 multimode fibers. The 50-meter length assumes two optical patch panels in the link.
The Twin-port 2xSR4 transceiver is a key NVIDIA innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage Quantum-2 switch. Spectrum-4 switches have 32 or 64 cages and enable 64-128 400G ports. The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled based on the switch protocol.
The Quantum-2 and Spectrum-4 switches require finned-top OSFP shells for extra transceiver cooling. The main application for MMA4Z00-NS is linking two switches together with up to 50-meter transceivers.
Key Features
-
InfiniBand and Ethernet
-
800G 2xSR4 multimode transceiver
-
8-channels of 100G-PAM4 electrical modulation
-
Two ports of 4-channel 100G-PAM4 optical modulation
-
Supports two straight 400Gb/s or two 1:2 splitter fiber cables for 200Gb/s
-
Finned-top OSFP for air-cooled switches
-
850nm VCSEL
Specifications
| Model |
MMA4Z00-NS |
| Product Name |
NVIDIA Twin Port Transceiver |
| Type |
Twin Port Transceiver |
| Capacity |
800 Gbps |
| Ports |
2 × NDR, OSFP |
| Connector |
2 × MPO12 APC |
| Wavelength |
850 nm |
| Fiber Type |
MMF (Multimode Fiber) |
| Maximum Distance |
Up to 50 m |
| Heatsink |
Finned |
