Data centers that run AI models or scientific simulations need a network that can move huge amounts of data without slowing down. When the network is slow, jobs take longer and costs rise. The NVIDIA MQM9700-NS2F Quantum 2 NDR/OSFP Managed InfiniBand Switch solves this by giving you 400 Gb/s per port and a non-blocking design that keeps traffic flowing fast. It lets you finish work on time and saves money on power and hardware.

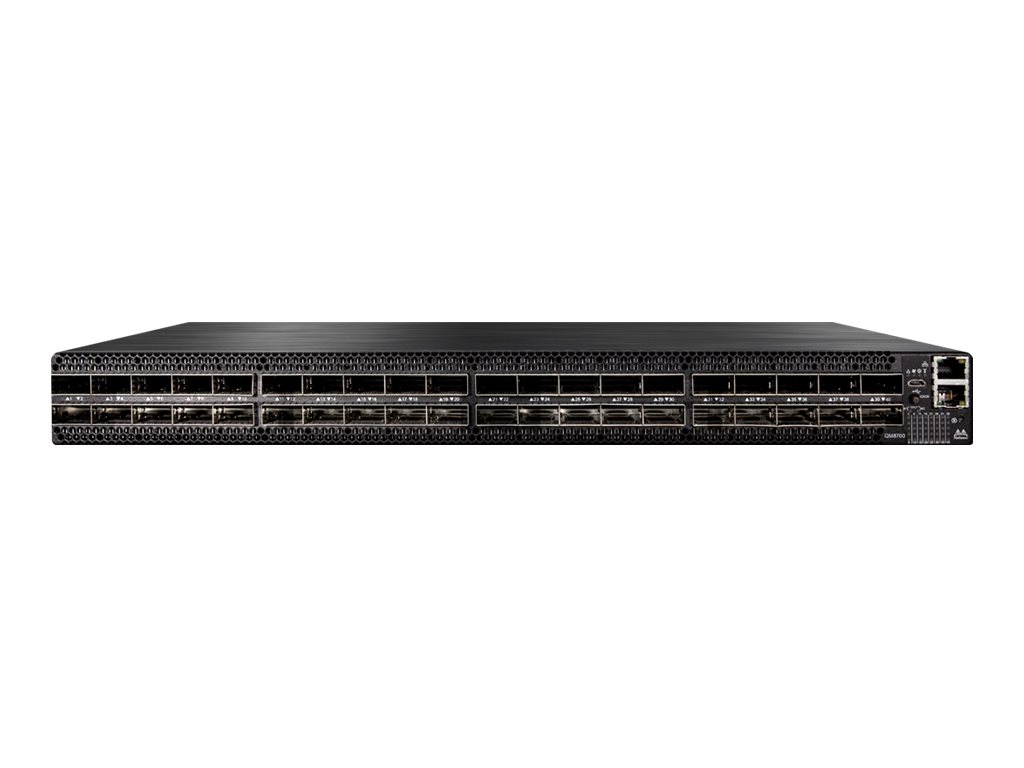

NVIDIA MQM9700-NS2F Quantum 2 NDR/OSFP Managed InfiniBand Switch with NVIDIA
Imagine a switch that can handle every packet as if it were the only one on the line. The Quantum 2 NDR/OSFP Managed InfiniBand Switch does exactly that. It is built for high-performance computing, AI training, and large-scale data analytics. If you are tired of bottlenecks that delay model training or scientific runs, this switch gives you the bandwidth and low latency you need. NVIDIAs proven software stack runs on the device, so you get reliable management and easy integration.
Key Features
- 64 ports each delivering 400 Gb/s.
- Aggregate throughput up to 51.2 Tb/s.
- 32 OSFP connectors supporting copper or active fiber.
- 1+1 redundant, hot-swappable power supplies.
- Six plus one hot-swappable fan unit for flexible cooling.
- x86 Coffee Lake i3 CPU for on-board control.
- 8 GB DDR4 SO-DIMM memory at 2,666 MT/s.
- 16 GB M.2 SSD for system storage.
- MLNX-OS software for easy configuration.
- Front-to-rear or rear-to-front airflow options.
- Multiple management ports: USB 3.0, USB I2C, three RJ45.
- Compact 1U rack mount, 11.98 kg weight.
Specifications
| Performance |
400Gb/s per port |
| Switch radix |
64 400Gb/s non-blocking ports with aggregate data throughput up to 51.2Tb/s |
| Connectors and cabling |
32 octal small form-factor pluggable (OSFP) connectors; passive or active
copper or active fiber cable; optical module |
| Power Supply |
Input range: 200–240VAC
US min: 2 phases of 100–100V-in total, at least 208V
1+1 redundant and hot-swappable power
80 Gold+ and ENERGY STAR certified |
| Cooling |
Front-to-rear or rear-to-front
Cooling option: 6+1 hot-swappable fan unit |
| Management ports |
1x USB 3.0 x1
1x USB for I2C channel 1x RJ45
1x RJ45
1x RJ45 (UART) |
| CPU |
x86 Coffee Lake i3 |
| System memory |
Single 8GB, 2,666 mega transfers per second (MT/s), DDR4 SO-DIMM |
| Storage |
M.2 SSD SATA 16GB 2242 FF |
| Software |
MLNX-OS |
| System weight |
11.98kg |
| System dimensions |
Height: 1.7in (43.6 mm)
Width: 17.0in (438 mm)
Depth: 26.0in (660.4 mm) |
| Rack mount |
1U Rack mount |
