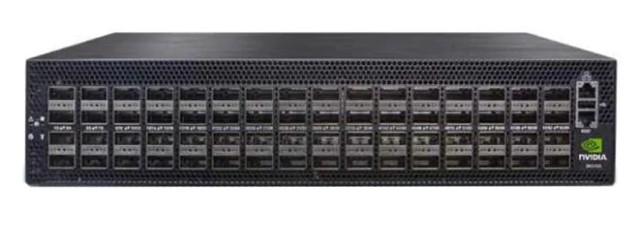

NVIDIA Networking SN5400 Spectrum-4 400GbE 2U C2P Ethernet Switch

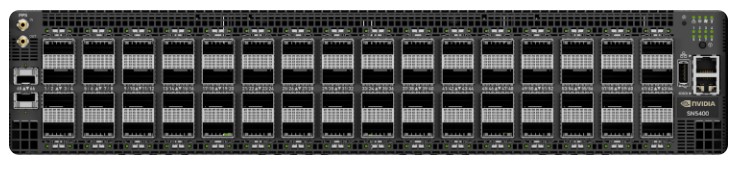

The NVIDIA Networking SN5400 is a Spectrum-4 based 400GbE 2U Open Ethernet switch designed for high-performance data center networking. It provides 64 QSFP56-DD ports supporting speeds from 10GbE through 400GbE.
The NVIDIA SN5400 also includes two SFP28 ports supporting 1/10/25GbE connectivity. This port configuration provides flexible Ethernet options for high-speed data center networks and management or connectivity requirements.
Powered by an Intel x86 Xeon hexa-core Coffee Lake E-2276ME processor with secured boot, the switch includes 32GB DDR4 RAM and a 160GB SSD. It also provides PCIe Gen3 x4 and uses the NVIDIA Spectrum-4 switch platform.
The NVIDIA Spectrum-4 switch delivers 25.6 Tbps of throughput and supports a typical power consumption of 670W with passive cables. Its power system supports one or two high-line AC inputs rated at 220–240V, with an operating range from 200V to 264V.

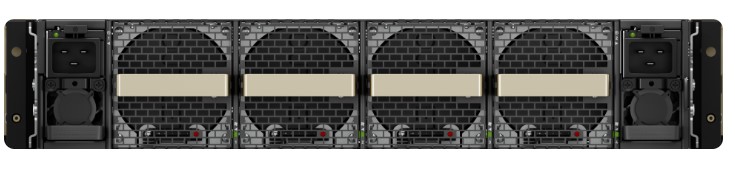

The rack-mounted 2U chassis is designed for installation in a 19-inch rack and weighs 23.5 kg. The C2P variant features C2P airflow, standard depth, a tool-less rail kit, and supports operating temperatures from 0°C to 40°C with 10% to 85% non-condensing humidity.
Key features
-
64 x QSFP56-DD 10/25/50/100/200/400GbE ports
-
2 x SFP28 1/10/25GbE ports
-
NVIDIA Spectrum-4 switch
-
25.6 Tbps throughput
-
Intel x86 Xeon hexa-core CPU
-
32GB DDR4 RAM and 160GB SSD
-
C2P airflow with tool-less rail kit
-
2U 19-inch rack-mount design
Specifications:
| Size |
3.46” (H) × 17.2’’ (W) × 28.3’’/29.3” (D) with fan levers, 88mm (H) × 438mm (W) × 720mm (D) / 745mm with fan levers |
| Mounting |
19” rack mount |
| Weight |
23.5 kg |
| Speed |
|
| Ports #1-64 |
10/25/50/100/200/400GbE |
| Port #65-66 |
1/10/25GbE |
| Connector Cage |
|
| Ports #1-64 |
QSFP56-DD |
| Port #65-66 |
SFP28 |
| Environmental |
|
| Temperature |
Operational: 0° to 40°C, Non-Operational: -40° to 70°C |
| Humidity |
Operational: 10% to 85% non-condensing, Non-Operational: 10% to 90% non-condensing |
| Altitude |
3050 m |
| Regulatory |
|
| Safety/EMC |
CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS |
RoHS compliant |
| Power |
|
| Input Voltage |
1x/2x, High Line, Rated Vac 220V-240V, Vac Minimum 200, Vac Maximum 264, AC current rating 16A, 50/60Hz |
| Global Power Consumption |
Typical power with passive cables (ATIS): 670W |
| Main Devices |
|
| CPU |
Intel x86 Xeon, Hexa-core Coffee Lake E-2276ME w/secured-boot |
| PCIe |
Gen3 x4 |
| Switch |
NVIDIA Spectrum®-4 |
| Memory |
32GB RAM DDR4, 160GB SSD |
| Throughput |
|
| Throughput |
25.6 Tbps |
| Product Description |
|
| Product |
NVIDIA Spectrum-4 based 400GbE 2U Open Ethernet switch with Cumulus Linux authentication, 64 QSFP56-DD ports and 1 2xSFP28 port, 2 power supplies (AC), x86 CPU, Secure Boot, standard depth, C2P airflow, tool-less rail kit |
| Lifecycle Phase |
P-Rel |
