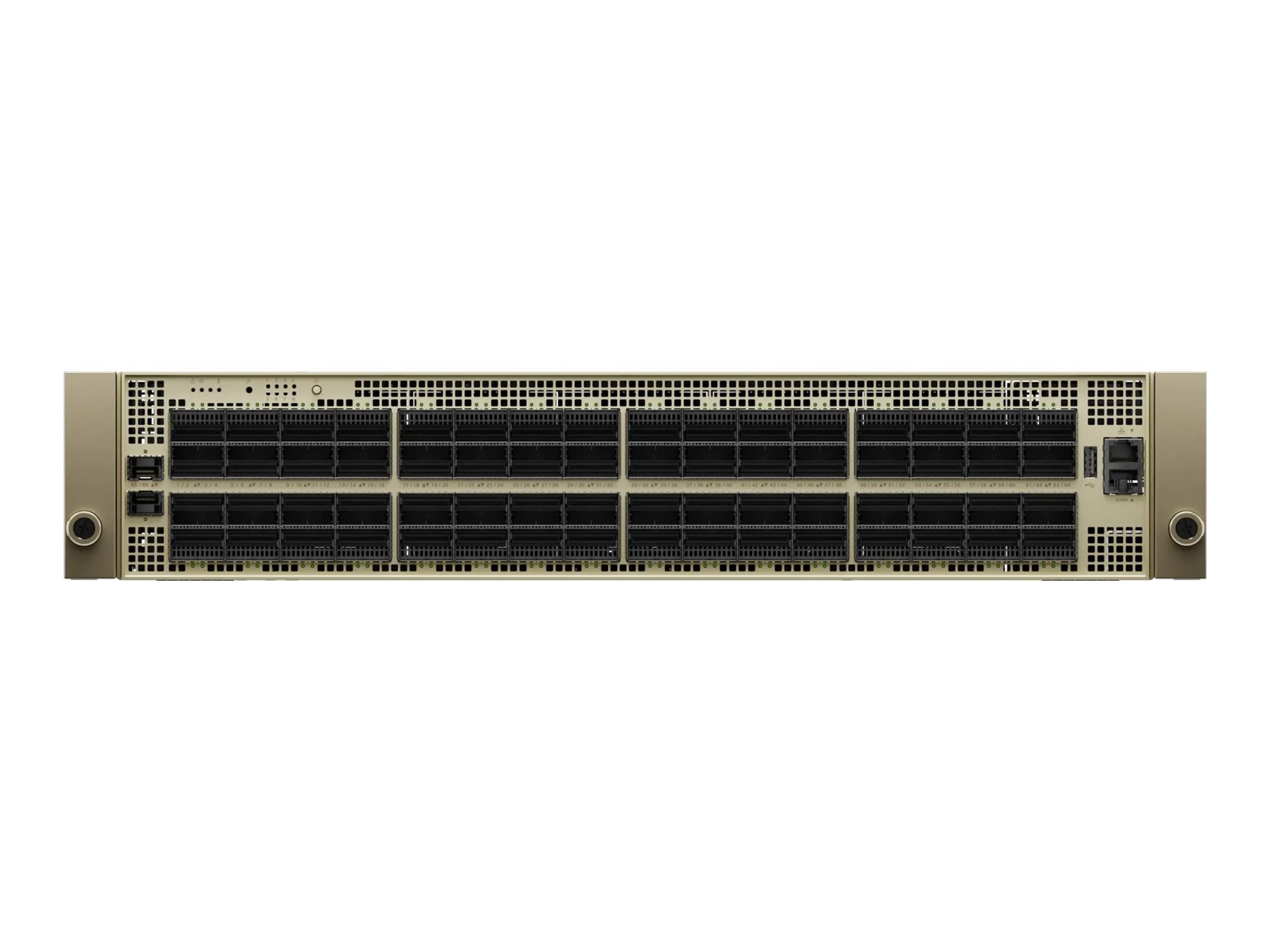

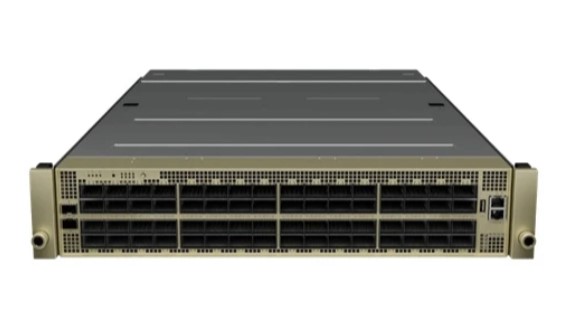

NVIDIA Spectrum-4 SN5610 800GbE 2U Open Ethernet Switch
The NVIDIA Spectrum-4 SN5610 is an 800 Gigabit Ethernet open network switch designed for high-performance data center environments. It features 64 x 800 Gigabit OSFP ports and 1 x 25 Gigabit SFP28 port in a rack-mountable 2U enclosure.
This NVIDIA Ethernet switch provides 51.2 Tbps of throughput for high-bandwidth networking applications. Its 64 OSFP interfaces support multiple Ethernet speeds, including 10G, 25G, 50G, 100G, 200G, 400G, and 800GBase-X.
The NVIDIA Spectrum-4 SN5610 offers flexible connectivity through 64 x 10/25/50/100/200/400/800GBase-X OSFP interfaces and 2 x 1/10/25GBase-X SFP28 interfaces. This configuration supports scalable connectivity for demanding data center network deployments.
The switch features a front-to-back airflow, rack-mountable 2U enclosure and includes a rack mounting kit. Its internal power supply requires AC 200–240 V and has an operational power consumption of 900 W.
The NVIDIA SN5610 measures 16.9 inches wide, 3.4 inches high, and 31 inches deep, with a weight of 59.3 lbs. It operates from 32°F to 104°F and supports an operating humidity range of 10–85% non-condensing.
Key features
-
64 x 800 Gigabit OSFP ports
-
1 x 25 Gigabit SFP28 port
-
51.2 Tbps throughput
-
Supports 10G to 800G Ethernet speeds
-
2U rack-mountable enclosure
-
Front-to-back airflow
-
AC 200–240 V input
-
900 W operational power consumption
Specifcations:
| Miscellaneous |
|
| Color Category |
Beige |
| Rack Mounting Kit |
Included |
| Compliant Standards |
CB, cTUVus, CU, S Mark, FCC, ICES, RCM, BSMI, KCC, CCC, RoHS |
| Networking |
|
| Form Factor |
Rack-mountable |
| Ports Qty |
66 |
| Subcategory |
Network hubs and switches |
| Type |
Switch |
| Subtype |
800 Gigabit Ethernet |
| Header |
|
| Model |
SN5610 |
| Product Line |
NVIDIA Spectrum-4 SN5000 Series |
| Packaged Quantity |
1 |
| Dimensions & Weight |
|
| Height |
3.4in |
| Width |
16.9in |
| Depth |
31in |
| Weight |
59.3lbs |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 - 85% (non-condensing) |
| General |
|
| Subtype |
800 Gigabit Ethernet |
| Ports |
64 x 800 Gigabit OSFP + 1 x 25 Gigabit SFP28 |
| Device Type |
Switch - 66 ports |
| Enclosure Type |
Front to back airflow rack-mountable 2U |
| Performance |
Throughput: 51.2 Tbps |
| Expansion / Connectivity |
|
| Interfaces |
64 x 10/25/50/100/200/400/800GBase-X OSFP, 2 x 1/10/25GBase-X SFP28 |
| Power |
|
| Voltage Required |
AC 200-240 V |
| Power Consumption Operational |
900 Watt |
| Power Device |
Internal power supply |
